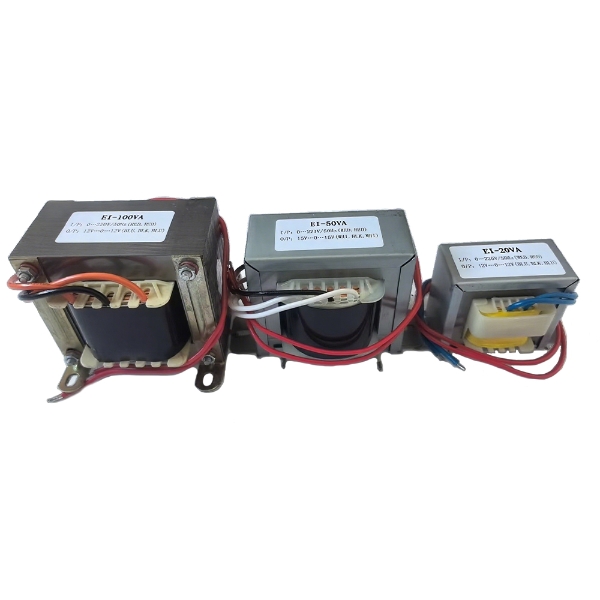

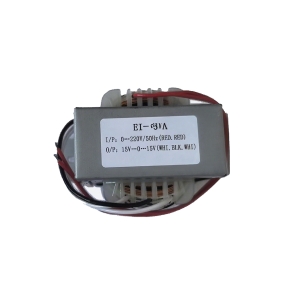

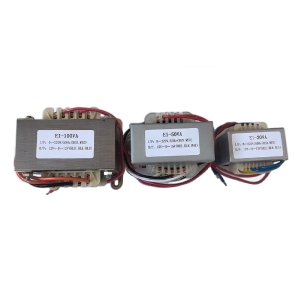

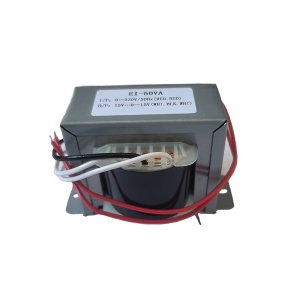

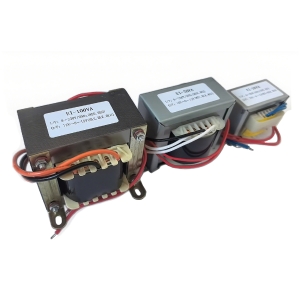

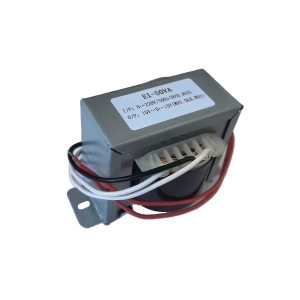

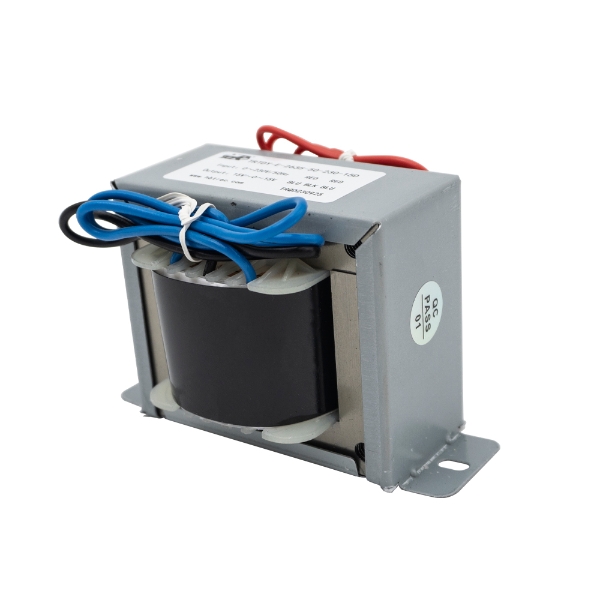

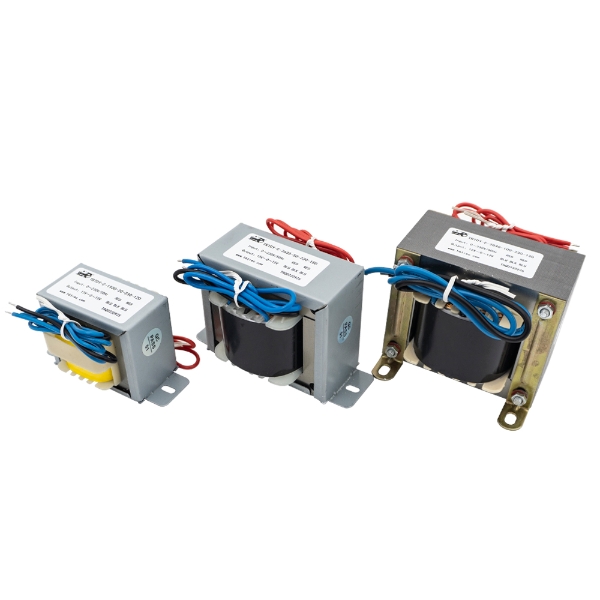

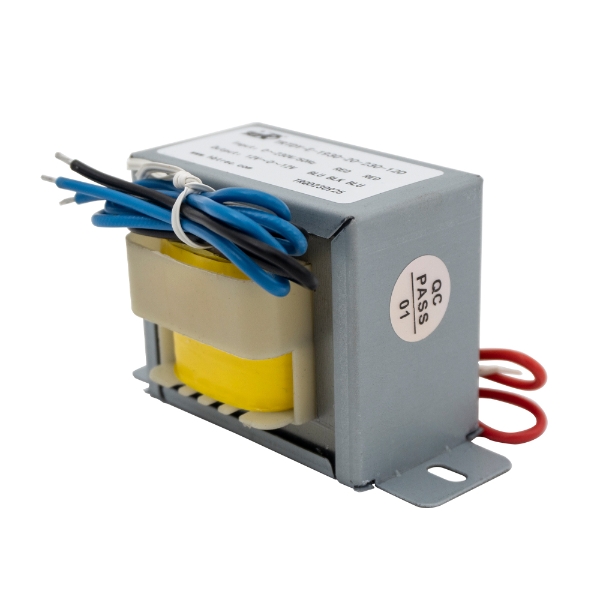

TRTDY-E EI Type Clip-mounted Transformer Electrical Transformer 1.5VA-300VA

TRTDY-E EI Type Clip-mounted Transformer Electrical Transformer 1.5VA-300VA

Product Detail
FAQ
Qualification certificate
Send Inquiry

Product Overview

EI type iron power supply transformer, low loss at no load,hig power output,high efficience, low temperature rise,widely used in air-conditioner,acoustics,microwave,oven,amplifier,SPC exchange,UPS power supply,and the power supply meter, equipmentof all kinds machine electronics, medical treatment, chemical industry,post and telecommunications, spinning, popular science.

Product Selection Table

Type	Specifications(mm)	Power(VA)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Weight(kg)
EI35	10*15	1.5	37	35	32	43～47	57	4	0.12
EI35	10*18	2	37	38	32	43～47	55	4	0.14
EI35	10*20	2.5	37	39	33	43～47	55	4	0.16
EI41	13*15	2.5	43	34	35	53～56	67	4	0.16
EI41	13*17	3(Conventional)	43	37	35	52～54	65	4	0.18
EI41	13*20	5(Conventional)	43	40	35	53～55	65	4	0.22
EI41	13*20(Vertical)	5	35	40	44	44～48	55	4	0.22
EI41	13*25	6	43	45	35	52～54	63	4	0.27
EI48	16*20	8	50	41	43	60～64	73	4	0.32
EI48	16*24	10(Conventional)	50	46	43	60～64	76	4	0.38
EI48	16*24(Vertical)	10	43	45	51	52～56	67	4	0.38
EI48	16*28	13	50	49	43	58～62	71	4	0.43
EI48	16*28(Vertical)	13	43	49	51	52～56	65	4	0.43
EI48	16*30	15	50	51	43	60～64	76	4	0.47
EI48	16*30(Vertical)	15	43	51	51	54～58	68	4	0.47
EI57	19*20	10	60	45	50	68～72	83	4	0.44
EI57	19*25	15(Conventional)	60	50	50	69～73	84	4	0.55
EI57	19*25(Vertical)	15	50	50	61	67～71	81	4	0.55
EI57	19*30	20(Conventional)	60	55	50	70～74	85	4	0.65
EI57	19*30(Vertical)	20	50	54	61	66～70	81	4	0.65
EI57	19*35	25	60	60	50	69～73	85	4	0.75
EI66	22*28	25(Conventional)	69	56	59	78～82	94	4	0.81
EI66	22*28(Vertical)	25	59	56	70	69～73	83	4	0.81
EI66	22*33	30(Conventional)	69	63	59	80～84	95	4	0.93
EI66	22*35	35	69	65	59	78～82	94	4	0.99
EI66	22*38	40(Conventional)	69	68	59	79～83	94	4	1.1
EI66	22*38(Vertical)	40	59	68	70	67～71	83	4	1.1
EI76	26*35	50(Conventional)	78	63	68	90～94	104	4	1.3
EI76	26*40	70	78	68	68	88～92(Three Holes)	104	4	1.5
EI76	26*45	80(Conventional)	78	75	69	88～92(Three Holes)	103	4	1.7
EI86	28*40	80	88	78	77	70～62(Bracket)	/	4	1.8
EI86	28*45	100(Conventional)	87	83	77	70～67(Bracket)	/	4	2.0
EI86	28*50	120	87	88	77	70～72(Bracket)	/	4	2.2
EI96	32*40	100	97	82	88	80～65(Bracket)	/	5	2.3
EI96	32*45	130	97	87	88	80～70(Bracket)	/	5	2.6
EI96	32*50	150	97	92	88	80～75(Bracket)	/	5	2.9
EI96	32*55	200	97	97	88	80～80(Bracket)	/	5	3.1
EI96	32*60	250	97	102	88	80～85(Bracket)	/	5	3.4
EI96	32*65	300	97	107	88	80～90(Bracket)	/	5	3.7

This series of products offers a variety of parameter specifications tailored to customer requirements, so as to meet different application and installation needs.

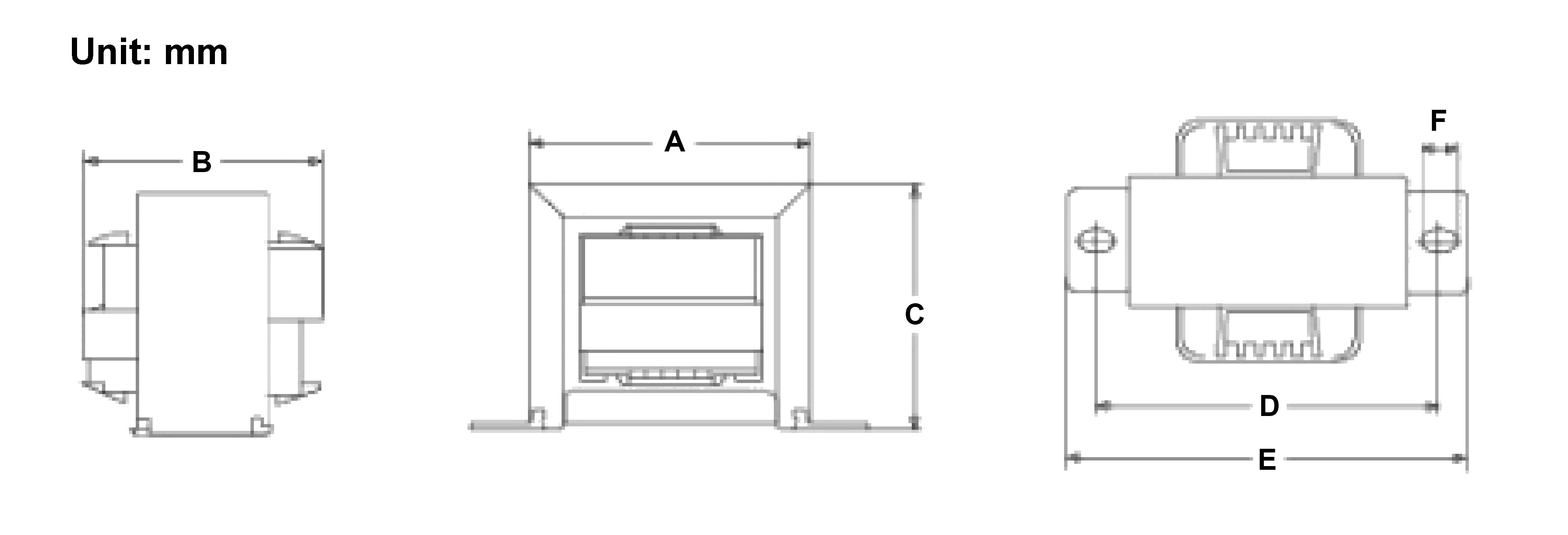

Technical Specifications(mm)
