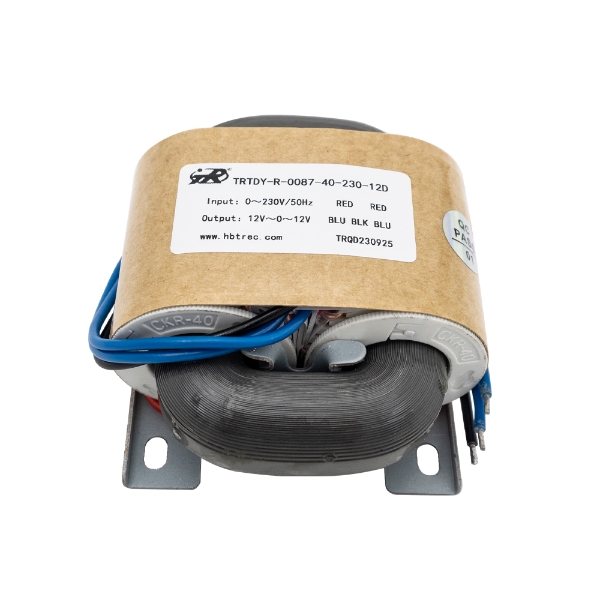

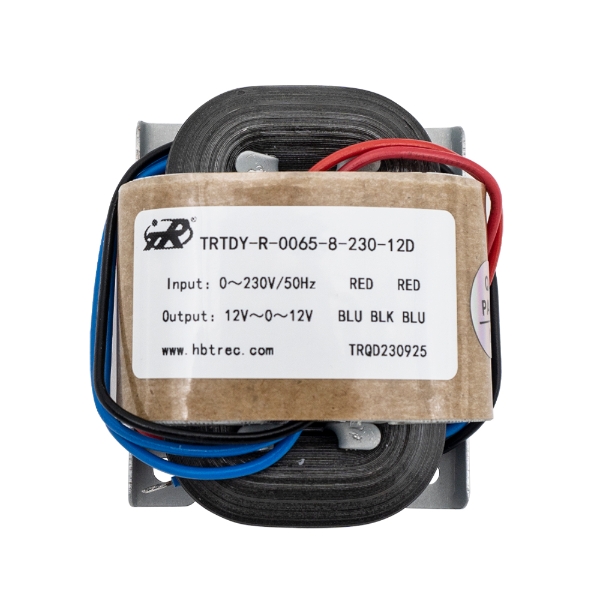

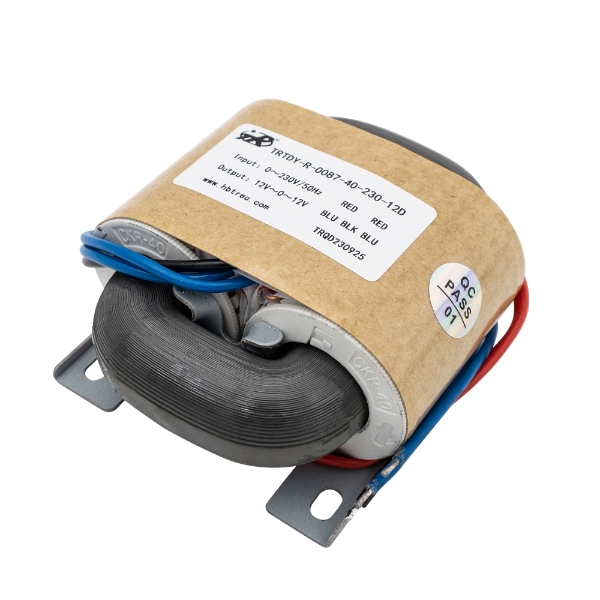

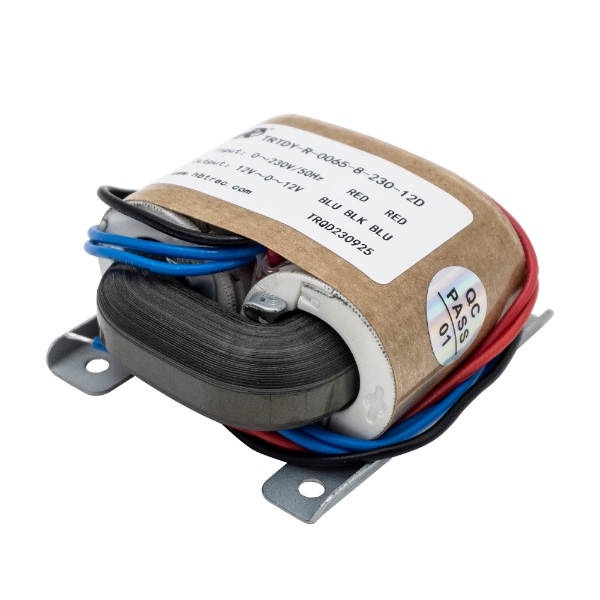

TRTDY-R R-type Transformer Electrical Transformer Power 5W-3000W

TRTDY-R R-type Transformer Electrical Transformer Power 5W-3000W

Product Detail
FAQ
Qualification certificate
Send Inquiry

Product Overview

With an R-shaped iron core as the core, R-type transformers have symmetrical magnetic circuits, low loss, strong anti-interference ability and stable voltage. Compact in structure and suitable for multiple scenarios, they are widely used in audio equipment, precision instruments, medical devices and household electronic devices, and are a top choice for scenarios requiring high power supply quality.

Product Selection Table

Specifications (mm)	Power (W)	Base Length (mm)	Length (mm)	Width (mm)	Height (mm)	Hole Pitch(Length )(mm)	Hole Pitch(Width) (mm)	Aperture (mm)	Weight (kg)
R-5	2~6	57	61	49	26	45	30	4	0.2
R-10	7~10	65	70	60	33	53	44	4	0.3
R-10	11~15	79	75	61	37	66~70	48	4	0.4
R-20	20~24	75	81	70	39	49~56	55	4	0.5
R-25	25~30	80	83	72	40	62~70	55	4	0.6
R-30	31~40	87	93	76	42	67~73	60	5	0.7
R-40	41~50	87	94	80	44	67~73	60	5	0.8
R-50	51~60	92	98	86	37	72~78	65	5	1.0
R-65	61~75	92	105	88	49	72~78	65	5	1.2
R-80	76~90	110	123	90	49	85~95	70	5	1.4
R-100	91~130	118	123	102	55	100	77~83	5	1.8
R-160	131~180	120	136	115	60	95~105	85	5	2.1
R-260	181~280	145	153	120	65	120~130	95	5	3.1
R-320	281~350	152	160	128	70	130~140	95	6	3.8
R-600	360~640	167	175	145	80	145	115	6	6.5
R-800	650~850	167	192	165	90	145	115	6	8.4
R-1000	860~1200	200	212	175	95	175~185	140	6	10
R-1500	1300~1700	210	240	190	100	170~180	145	8	14
R-2000	1800~2300	220	255	200	110	180~190	160	8	16
R-3000	2500~3300	227	275	230	125	195~205	180	8	23

This series of products offers a variety of parameter specifications tailored to customer requirements, so as to meet different application and installation needs.

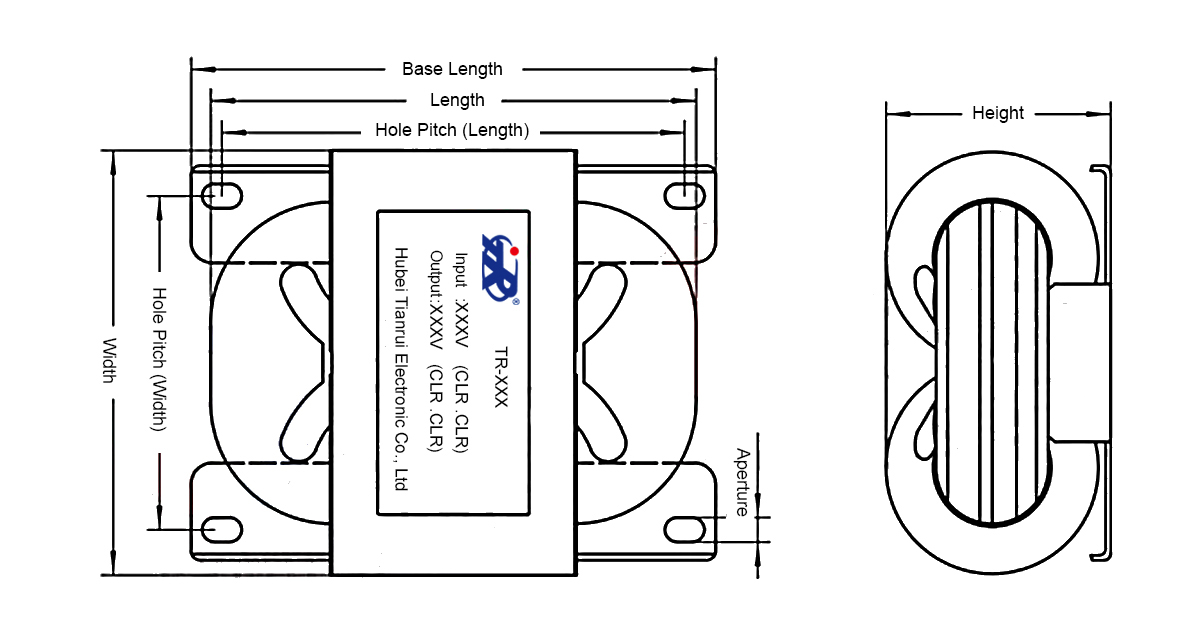

Technical Specifications(mm)
