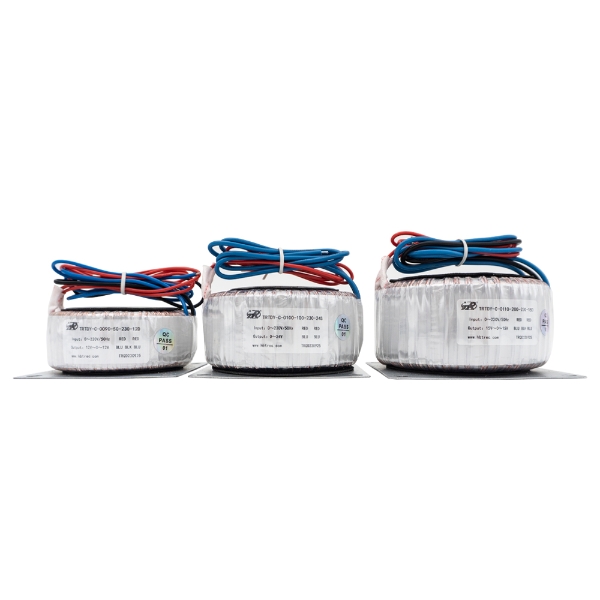

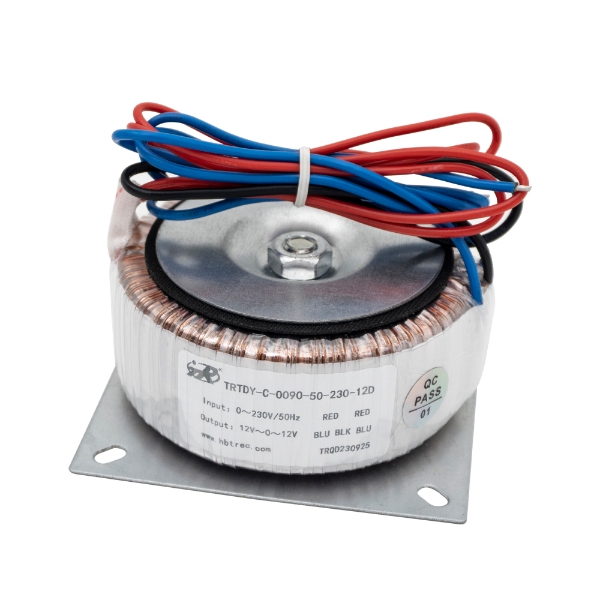

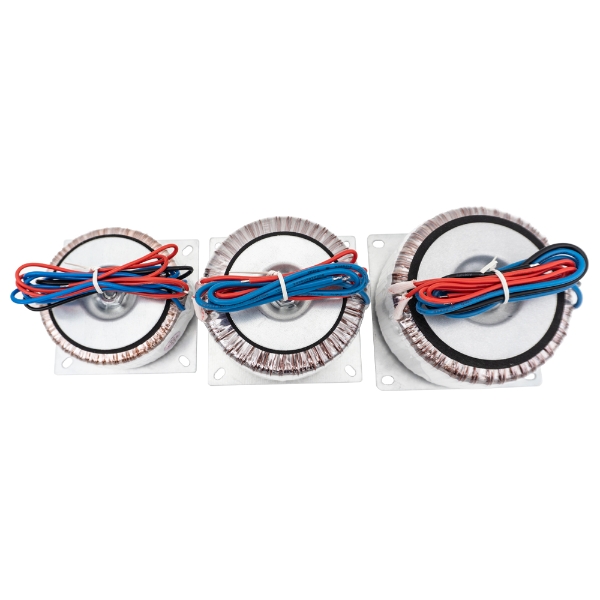

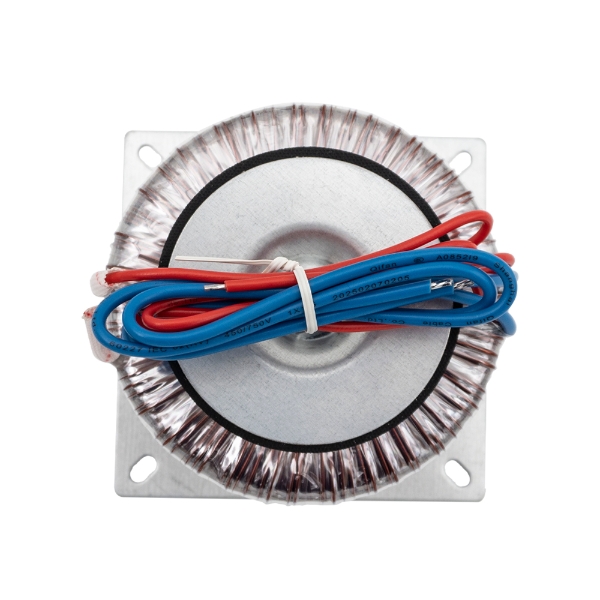

TRTDY-C Power Frequency Toroidal Transformer Power 30W-3000W

TRTDY-C Power Frequency Toroidal Transformer Power 30W-3000W

Product Detail
FAQ
Qualification certificate
Send Inquiry

Product Overview

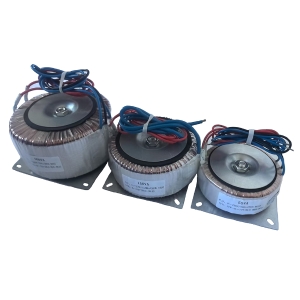

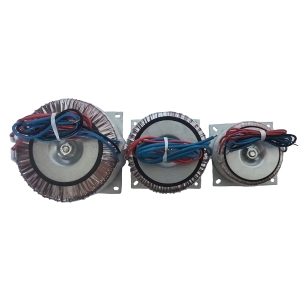

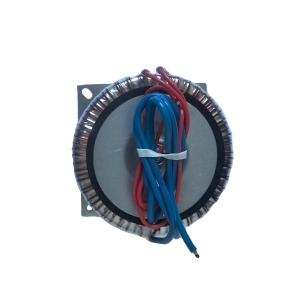

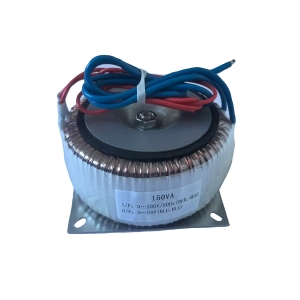

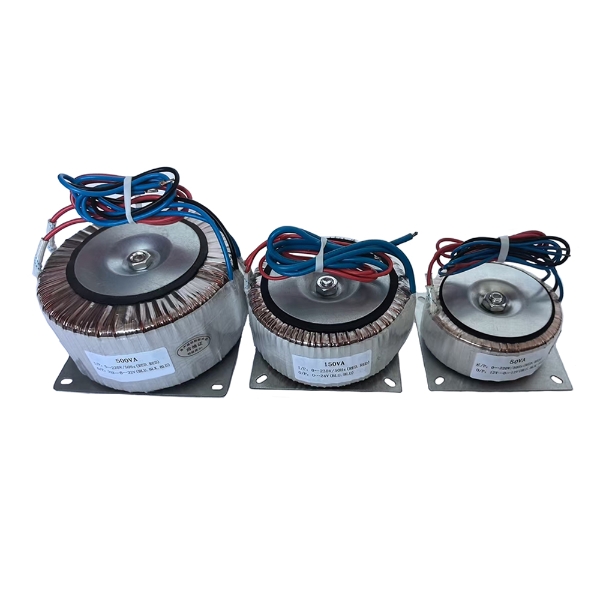

Toroidal transformers, with a toroidal iron core as the core component, feature small size, high efficiency, low magnetic leakage, and low noise, enabling stable AC voltage conversion. They are widely used in audio equipment, precision instruments, medical devices, communication power supplies, industrial control devices, and other fields, suitable for scenarios requiring stable power supply and low interference, and are a preferred transformer type in the medium and low power range.

Product Selection Table

Power (W)	Diameter (mm)	Height (mm)	Height(with accessories) (mm)	Installation Base (mm)	Mounting Hole Diameter (mm)	Weight (kg)
30	80	40	45	80*80	70*70	0.7
50	90	40	45	90*90	75*75	1.0
80	90	45	50	90*90	75*75	1.2
100	100	50	55	100*100	85*85	1.7
150	110	50	55	100*100	85*85	2.1
200	110	55	60	110*110	93*93	2.4
250	115	60	65	110*110	93*93	2.9
300	120	60	65	120*120	105*105	3.4
400	135	65	70	120*120	105*105	4.1
500	140	70	75	120*120	105*105	4.8
600	150	70	75	120*120	105*105	5.3
700	150	75	80	120*120	105*105	6.0
800	160	80	90	150*150	135*135	6.7
1000	165	85	90	150*150	135*135	7.6
1500	180	90	95	150*150	135*135	9.8
2000	195	95	100	160*160	145*145	12.5
3000	210	115	120	160*160	145*145	16.0

This series of products offers a variety of parameter specifications tailored to customer requirements, so as to meet different application and installation needs.

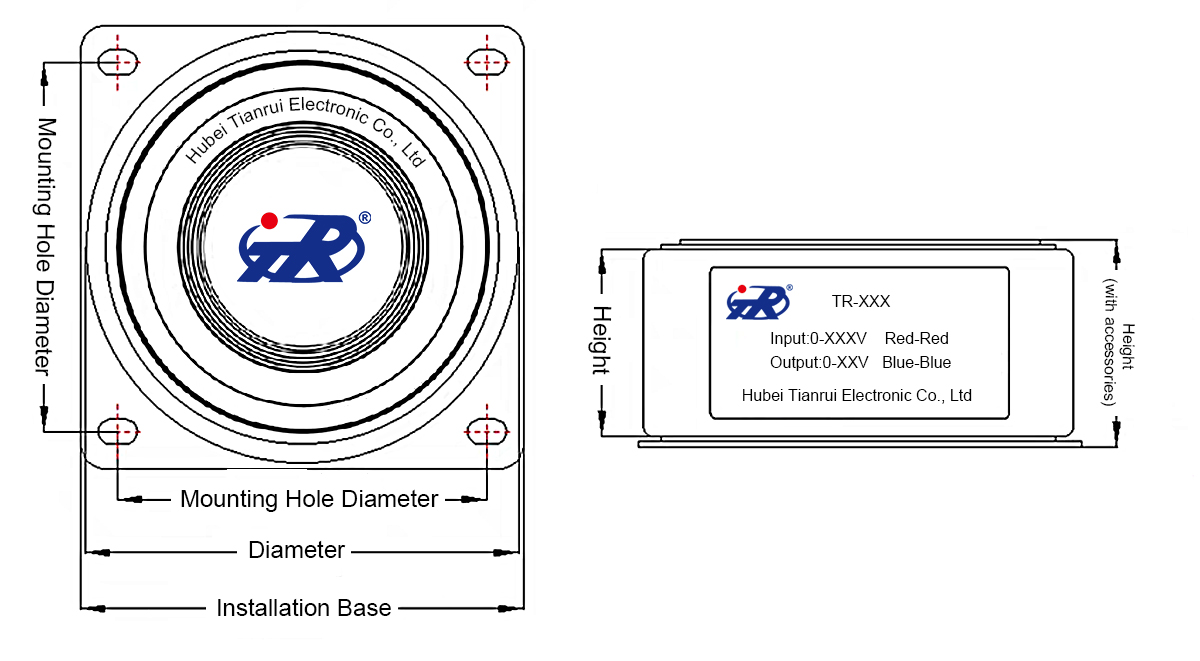

Technical Specifications(mm)
