PRODUCT OVERWIEW

With the development of high-voltage power equipment insulation monitoring technology, micro-current (mA, micro-amp level) sensors are more and more widely used, while single-turn feed-through micro-current sensors have no effect on equipment wiring due to their primary and secondary isolation. It has become the first choice for sensors for online monitoring of high-voltage equipment insulation. For this kind of current sensor, it is required to have high accuracy, good anti-electromagnetic interference capability and long-term stability. The traditional passive sensor cannot guarantee the accuracy and stability of the phase transformation error, and it is difficult to meet the requirements. The micro-current sensor using active zero-flux technology has the above excellent performance, and can accurately measure the leakage current of high-voltage equipment such as transformers, current transformers, voltage transformers, coupling capacitors, and arresters.

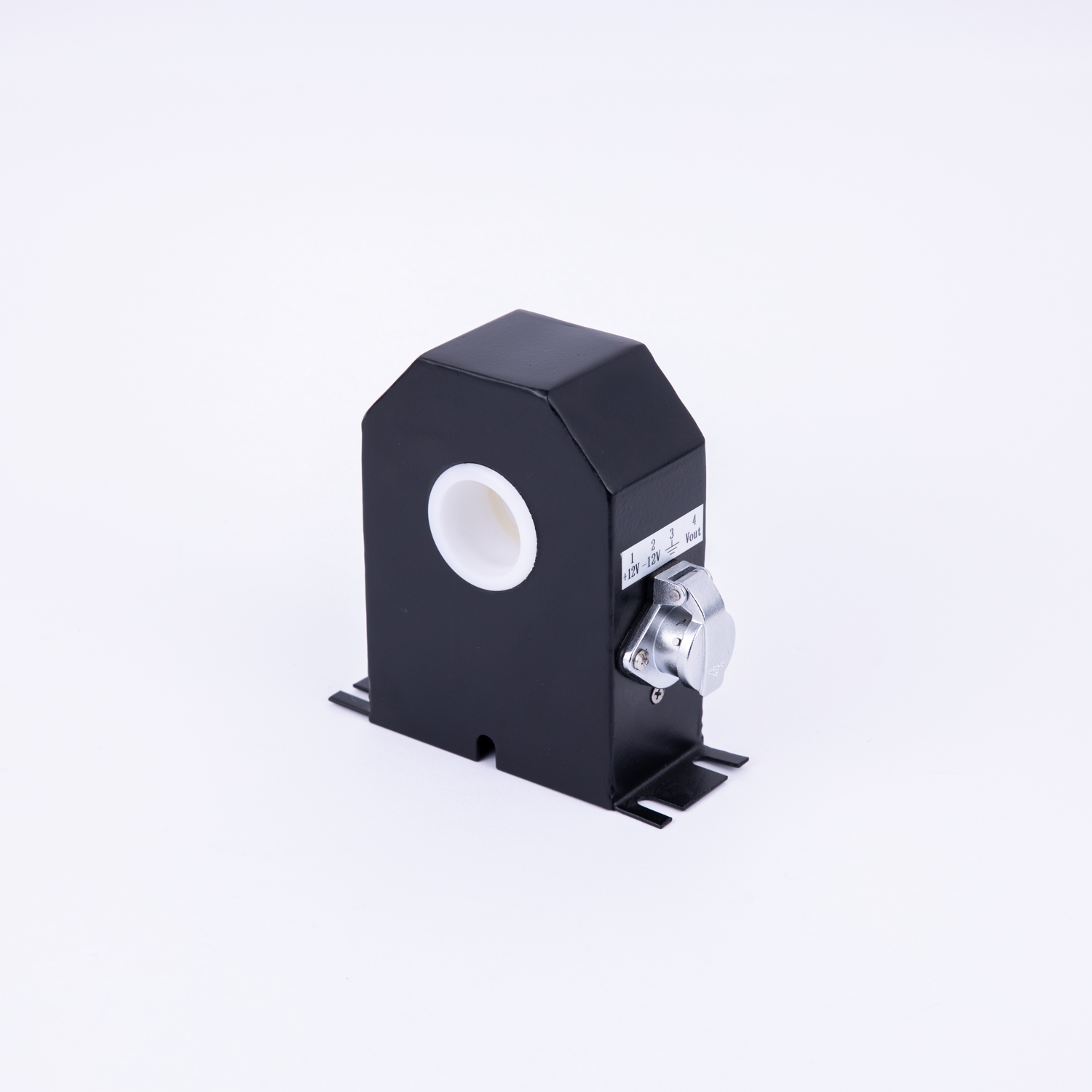

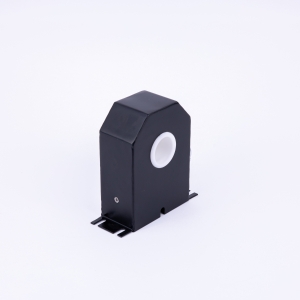

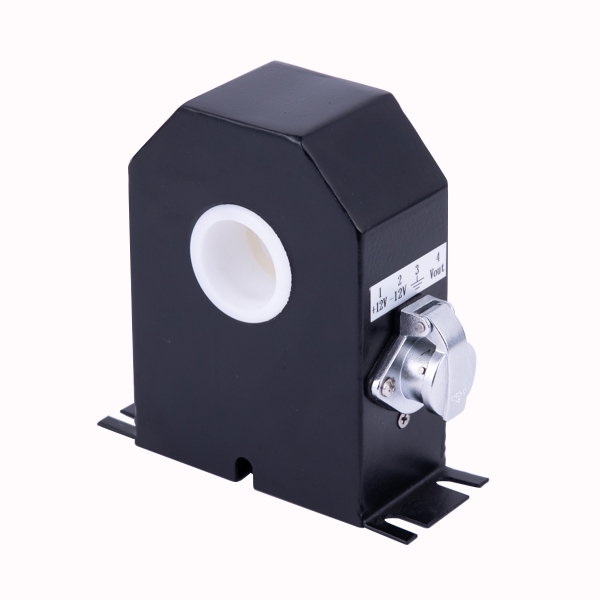

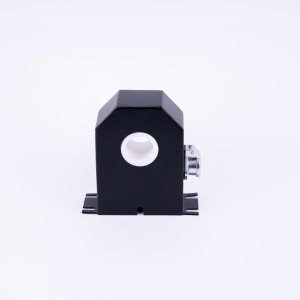

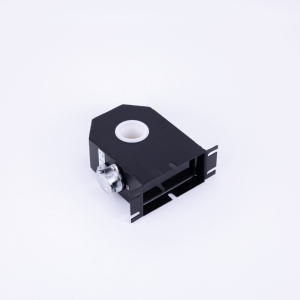

BNWXL series active zero-flux leakage current sensor is a micro-current sensor specially developed for on-line monitoring of high-voltage electrical equipment insulation. The material with high initial permeability is selected as the iron core, and the unique deep negative feedback technology and multi-layer metal shielding measures are adopted, which can fully automatically compensate the iron core and make the iron core work in an ideal zero magnetic flux state. The sensor can accurately detect the power frequency current of 100μA-700mA. The phase transformation error is not greater than 0.01°, and it has good temperature characteristics and electromagnetic field interference ability, which fully meets the accuracy of equipment sampling under complex power station field interference.

Product Features

It can accurately measure μA-level current, with high measurement accuracy and good linearity;

Multiple shielding, strong anti-interference ability, can work in complex environment;

Optional socket output or aviation plug output;

Special waterproof and anti-corrosion metal shell, epoxy resin potting, can work outdoors for a long time.

Scope of Application

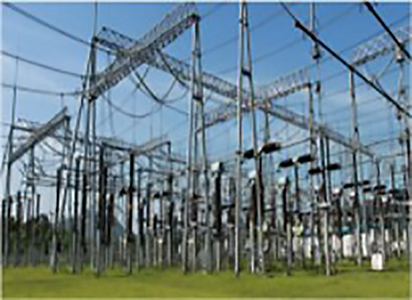

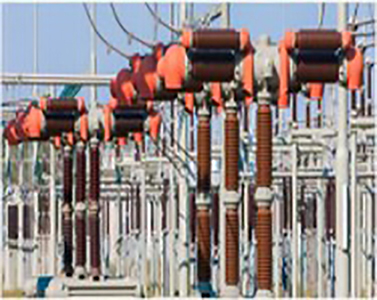

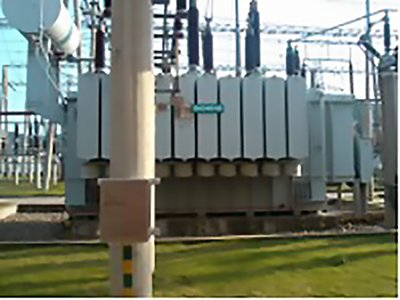

On-line monitoring of substation equipment: on-line monitoring of transformer core grounding; on-line monitoring of high-voltage bushing insulation; on-line monitoring of metal zinc oxide arrester insulation; on-line monitoring of current, voltage transformers and capacitors; high-voltage live display.
PERFORMANCE
Electric
Performance
Parameters
Electrical Symbol Performance Parameter Small signal measurement (active)
IN Rated Input 500mARMS
IP Measurable Range 0.1mA-1A
VOUT Rated Output 3.53VRMS
X Accuracy@IPN 0.05%
εL Linearity ≤0.05%
Uc Supply Voltage ±12V
Voff Offset Voltage 1mV
IC Max Power Consumption 10mA
f Operating Frequency 50-400 Hz
TA Operating Temperature -40oC… +85oC
TS Storage Temperature -40oC…+100oC
Mechanical
Structure
Parameters
Shell Metal Shell Output Mode Socket block/waterproof aerial plug
Metal Core Material Nanocrystalline/Permalloy Seal Flexible Silicone & Epoxy
Magnetic Screen Structure Carbon Steel/Permalloy Construction Plan Base Installation Fixed
Product selection (specification, shape, installation dimension, terminal/lead definition)

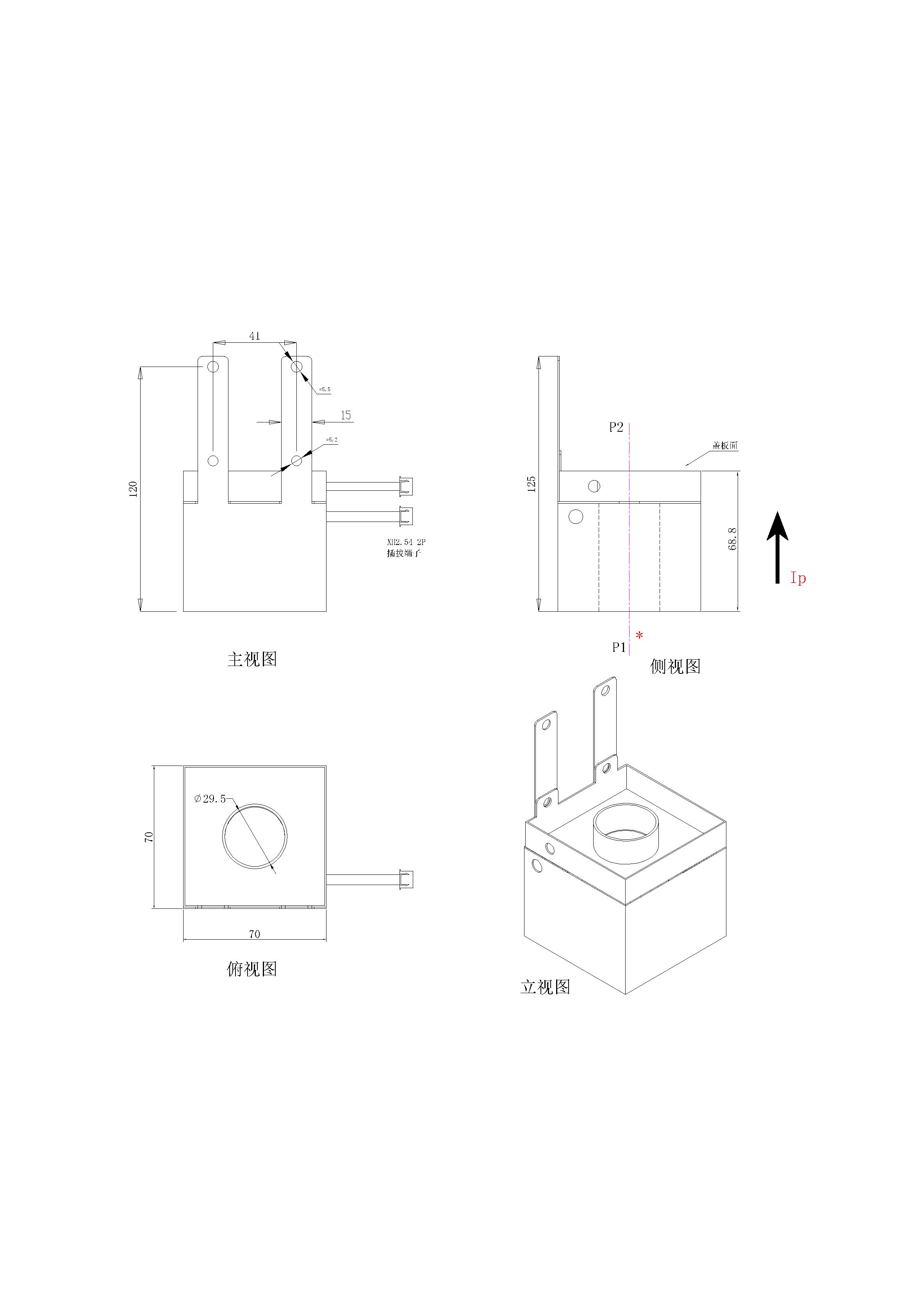

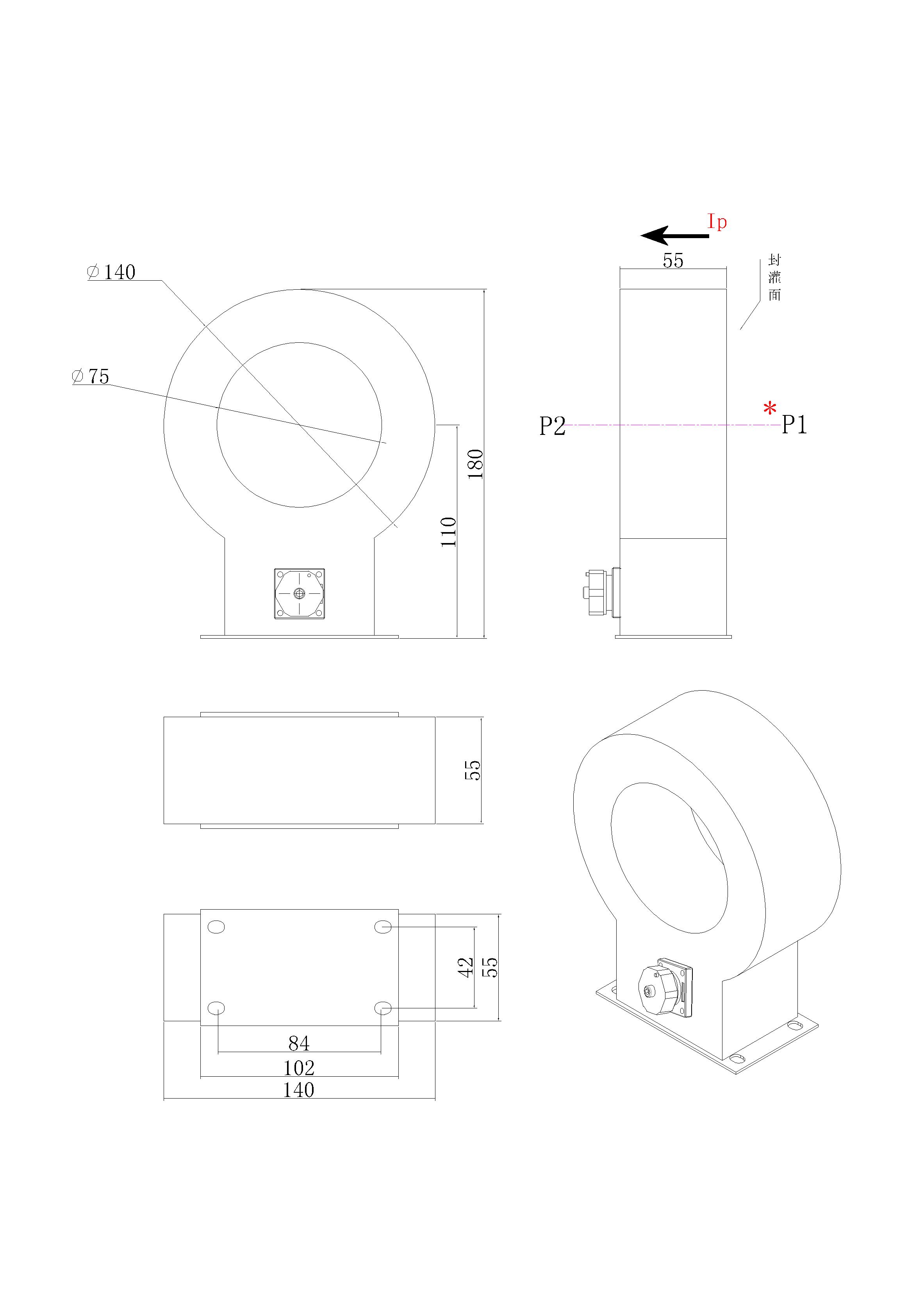

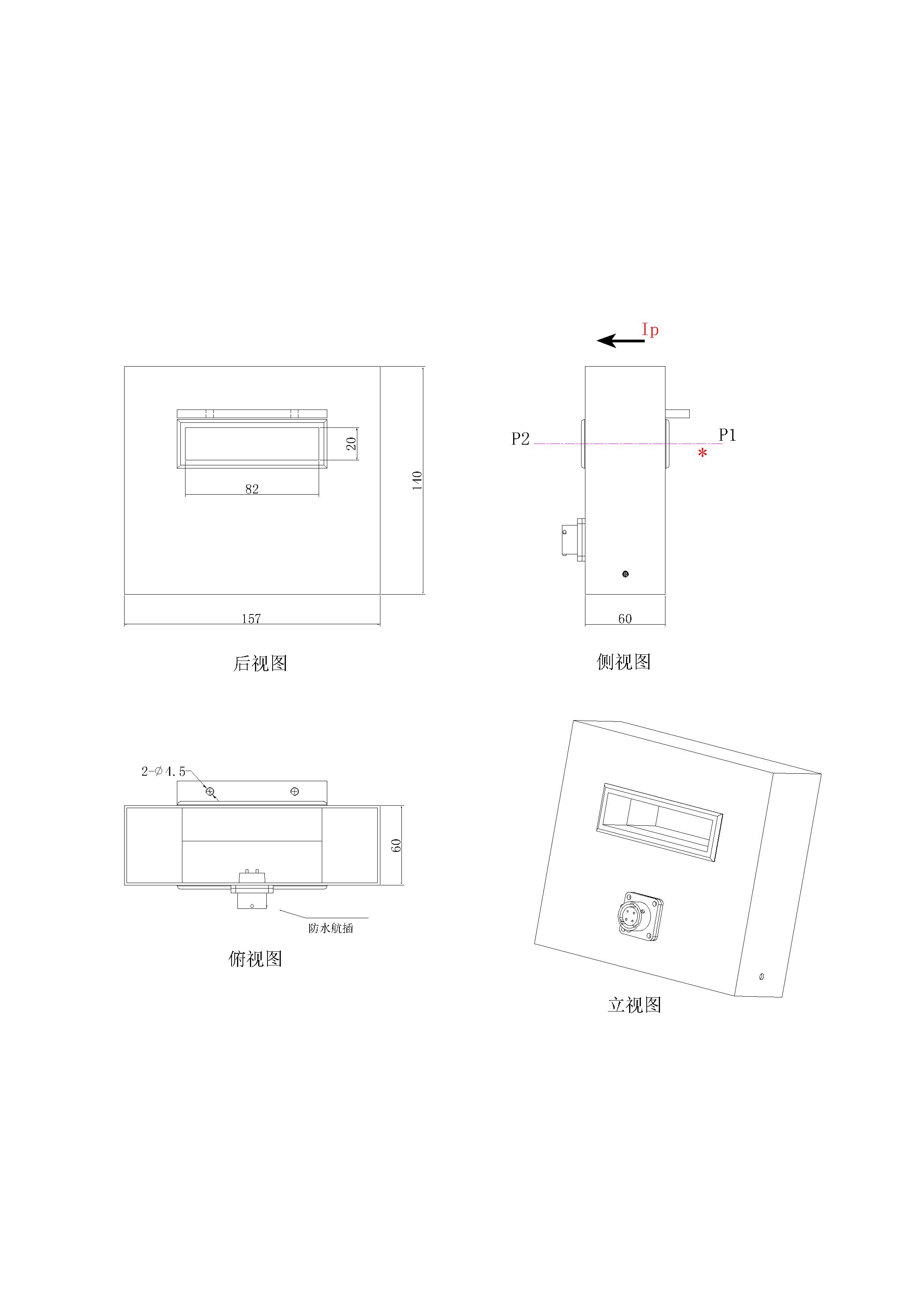

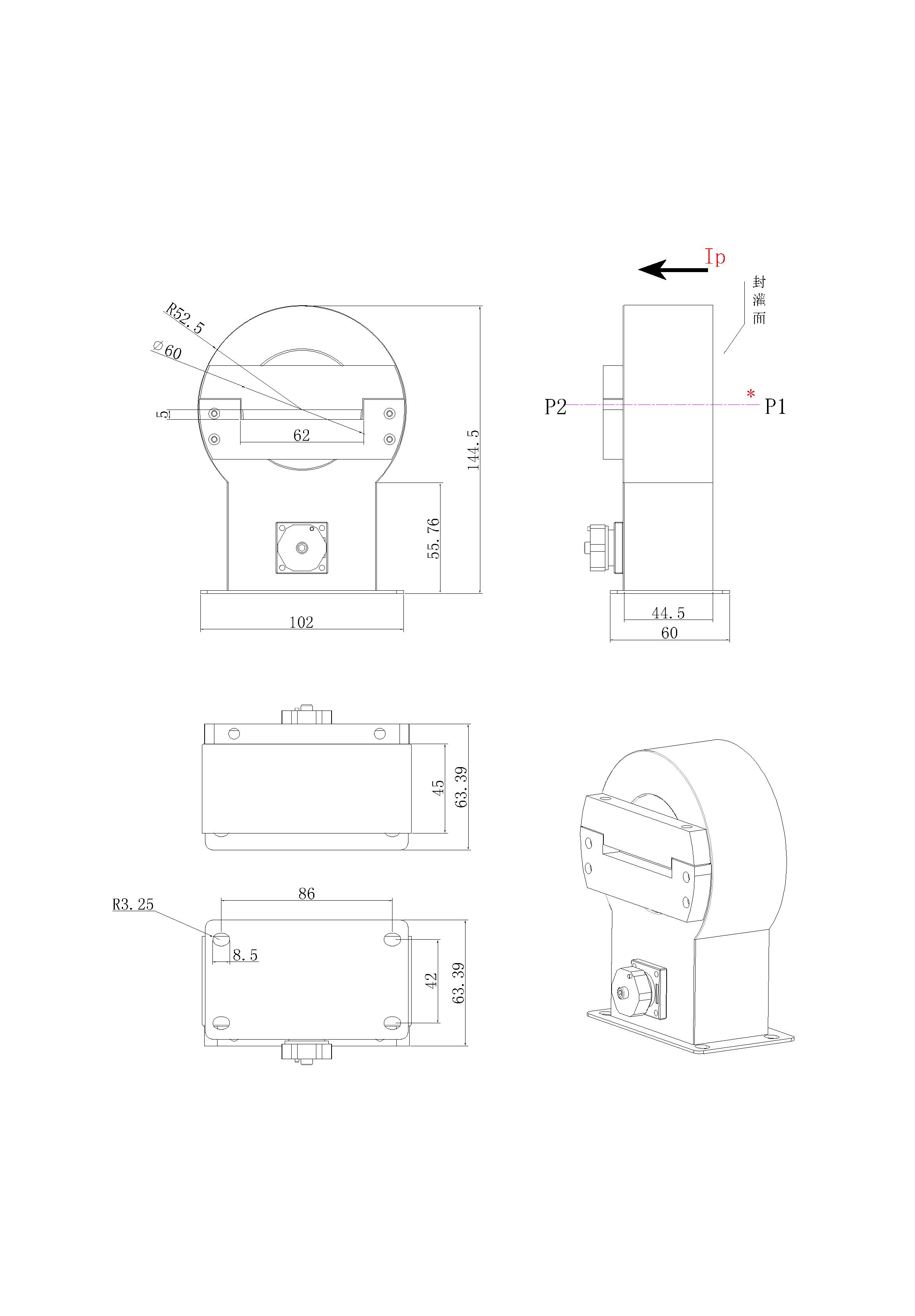

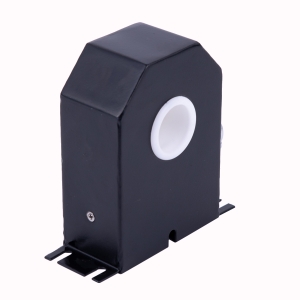

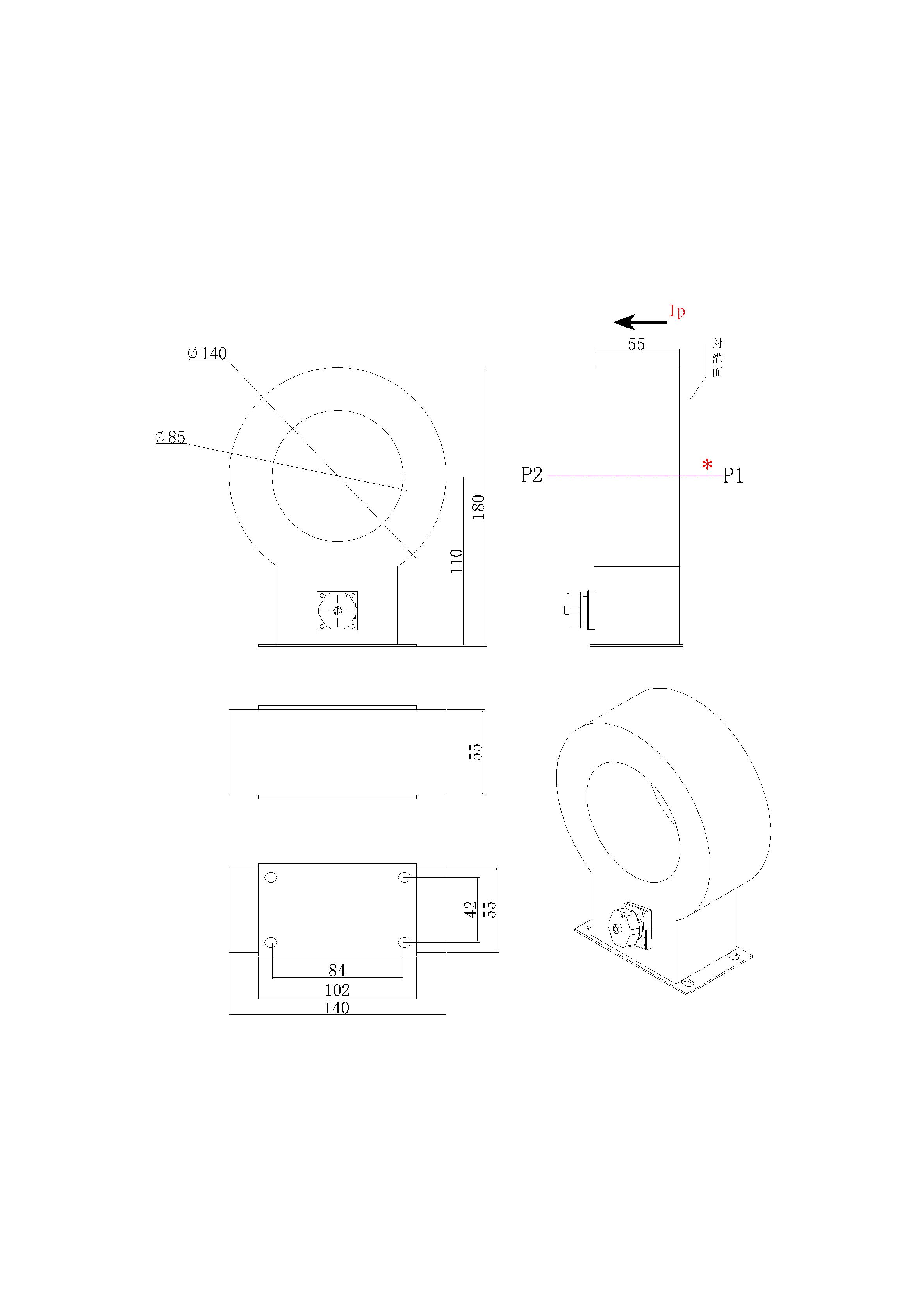

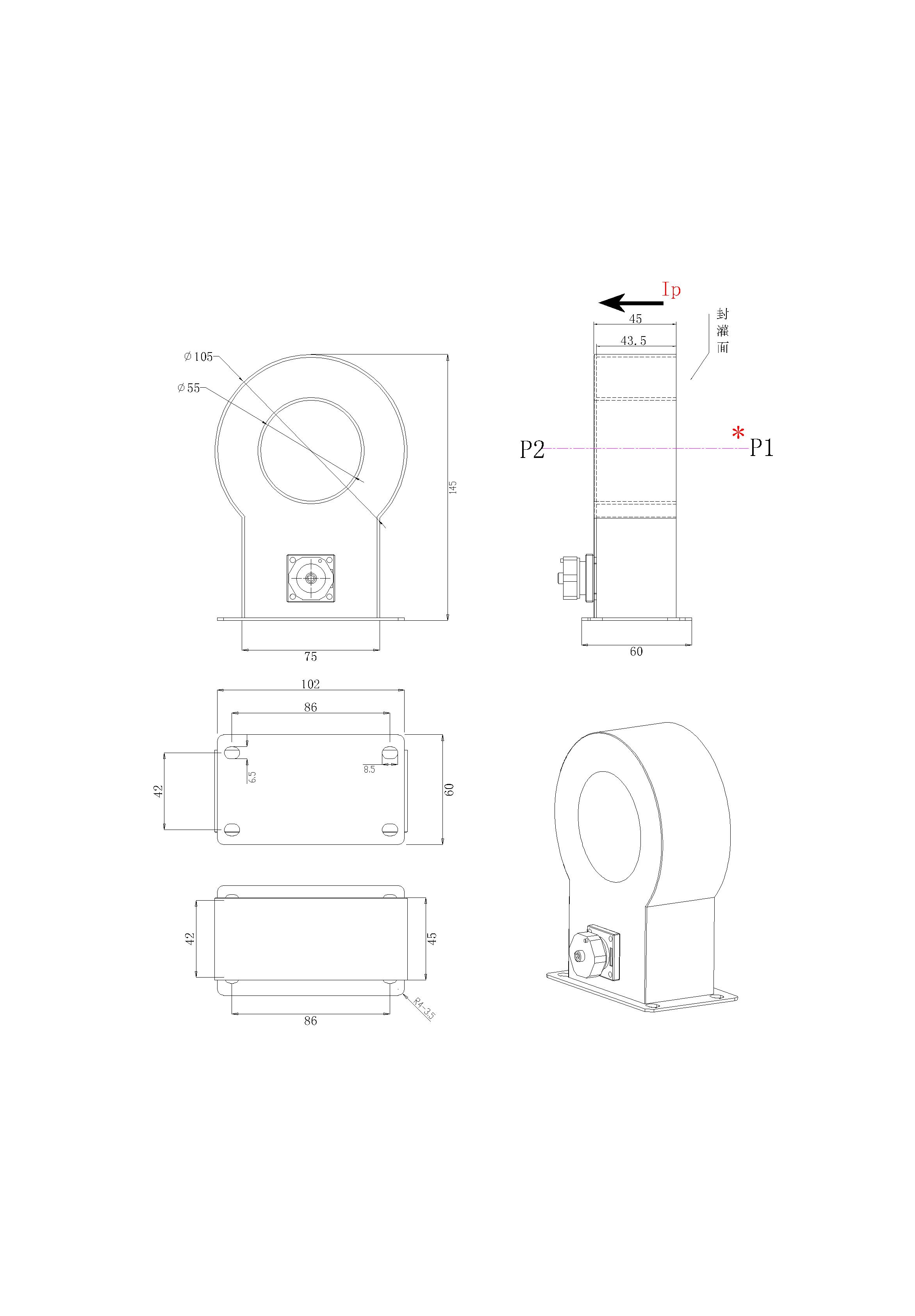

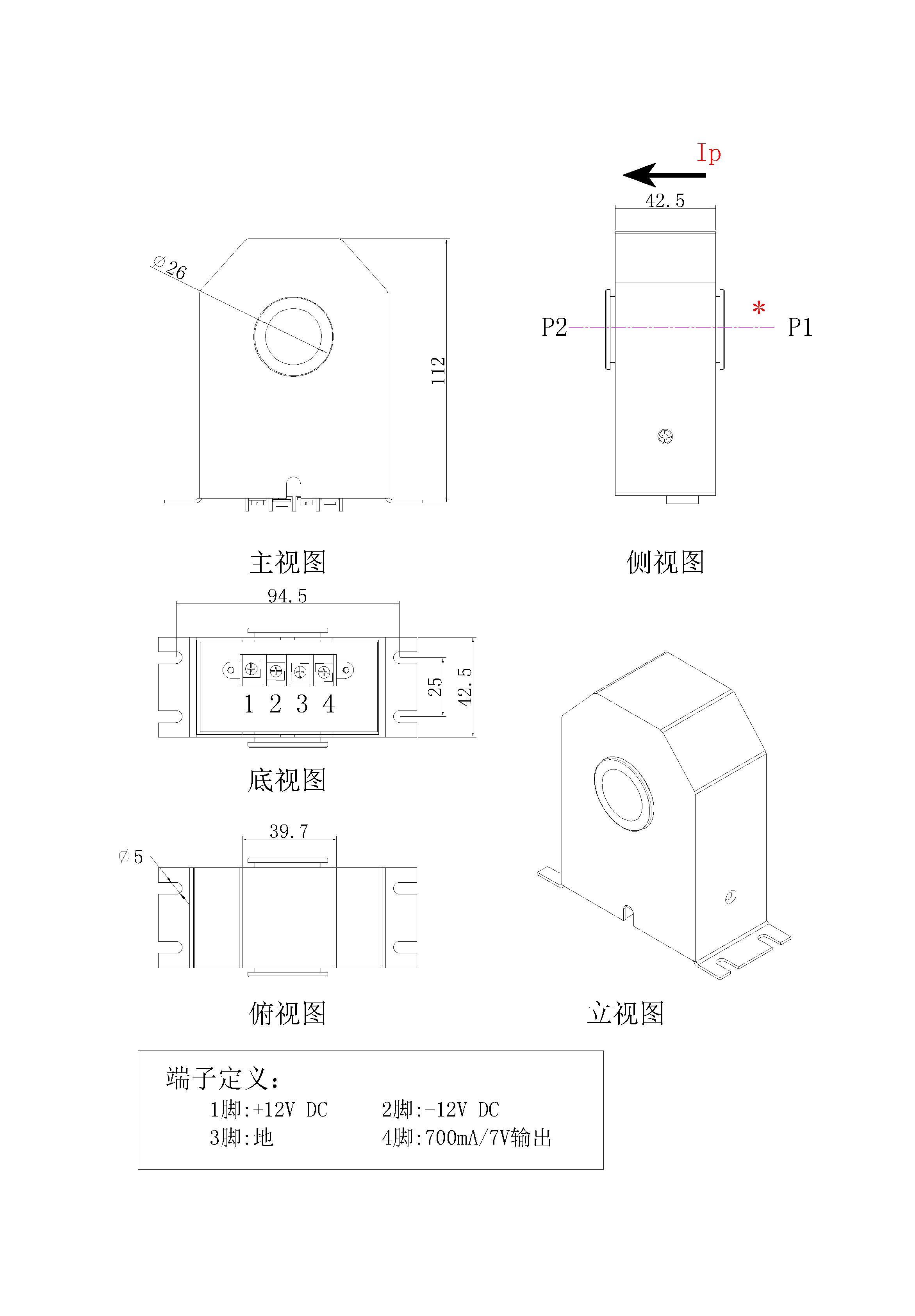

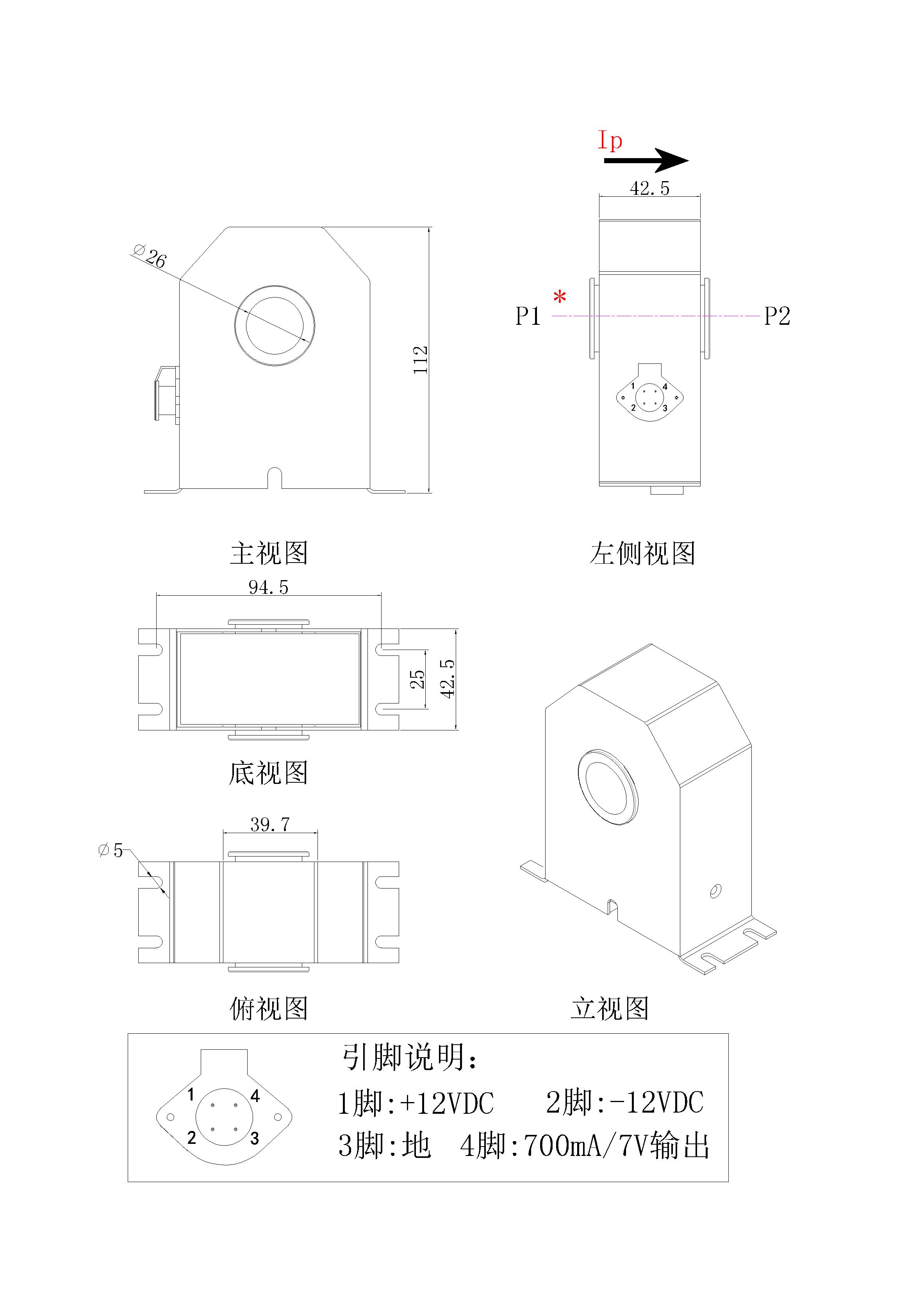

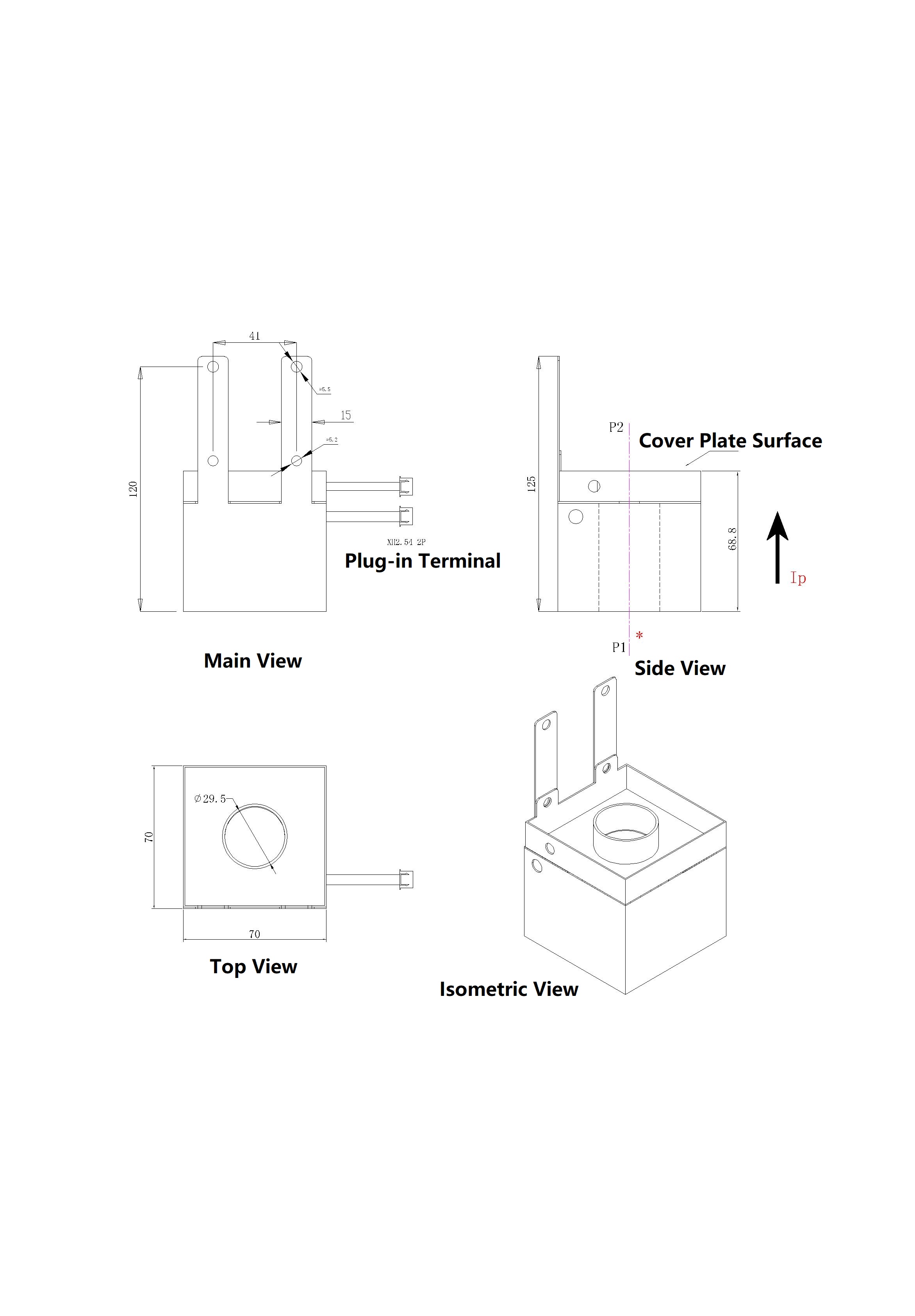

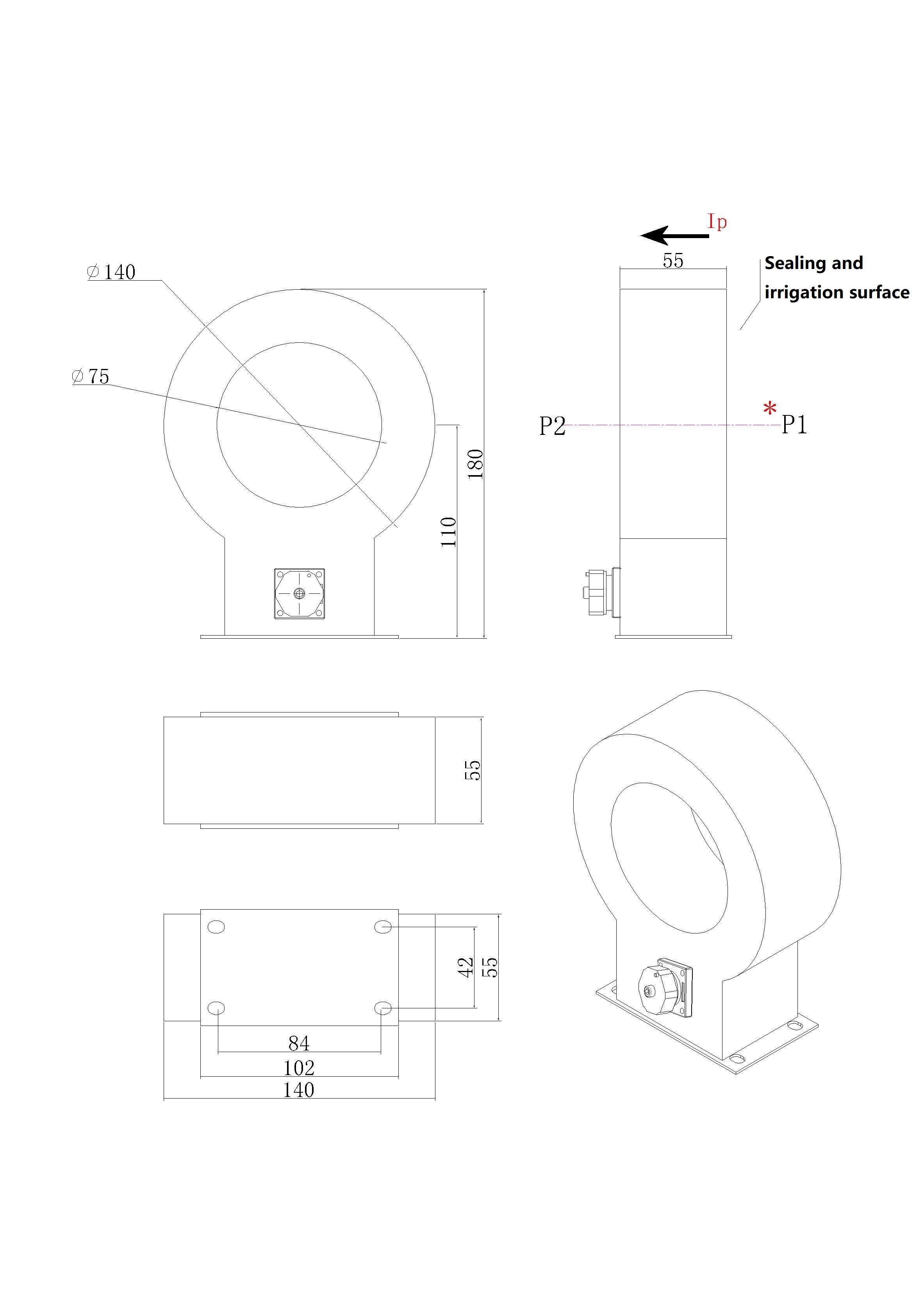

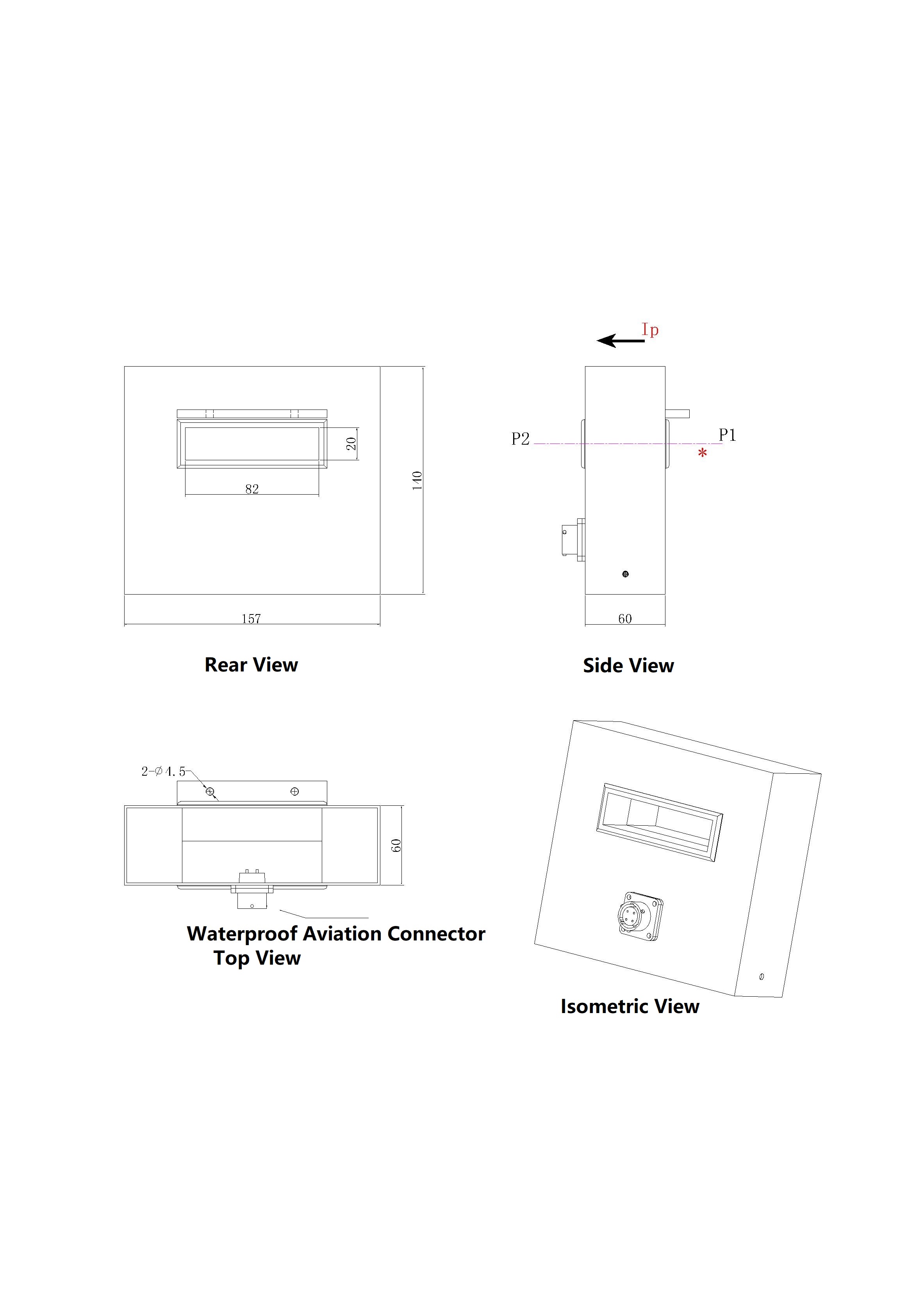

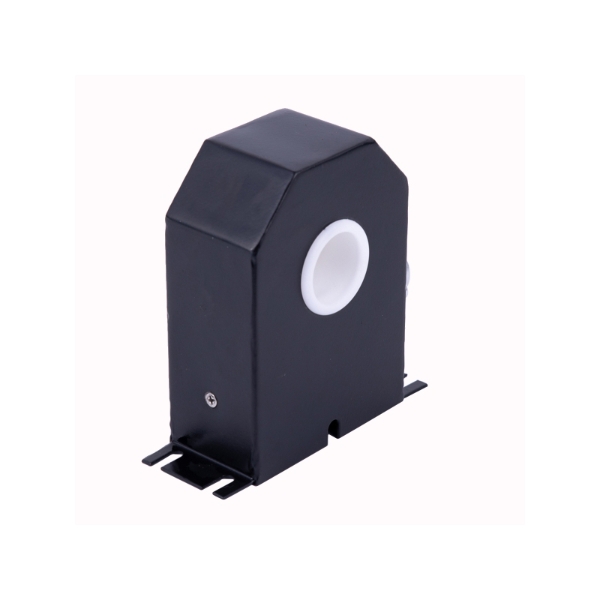

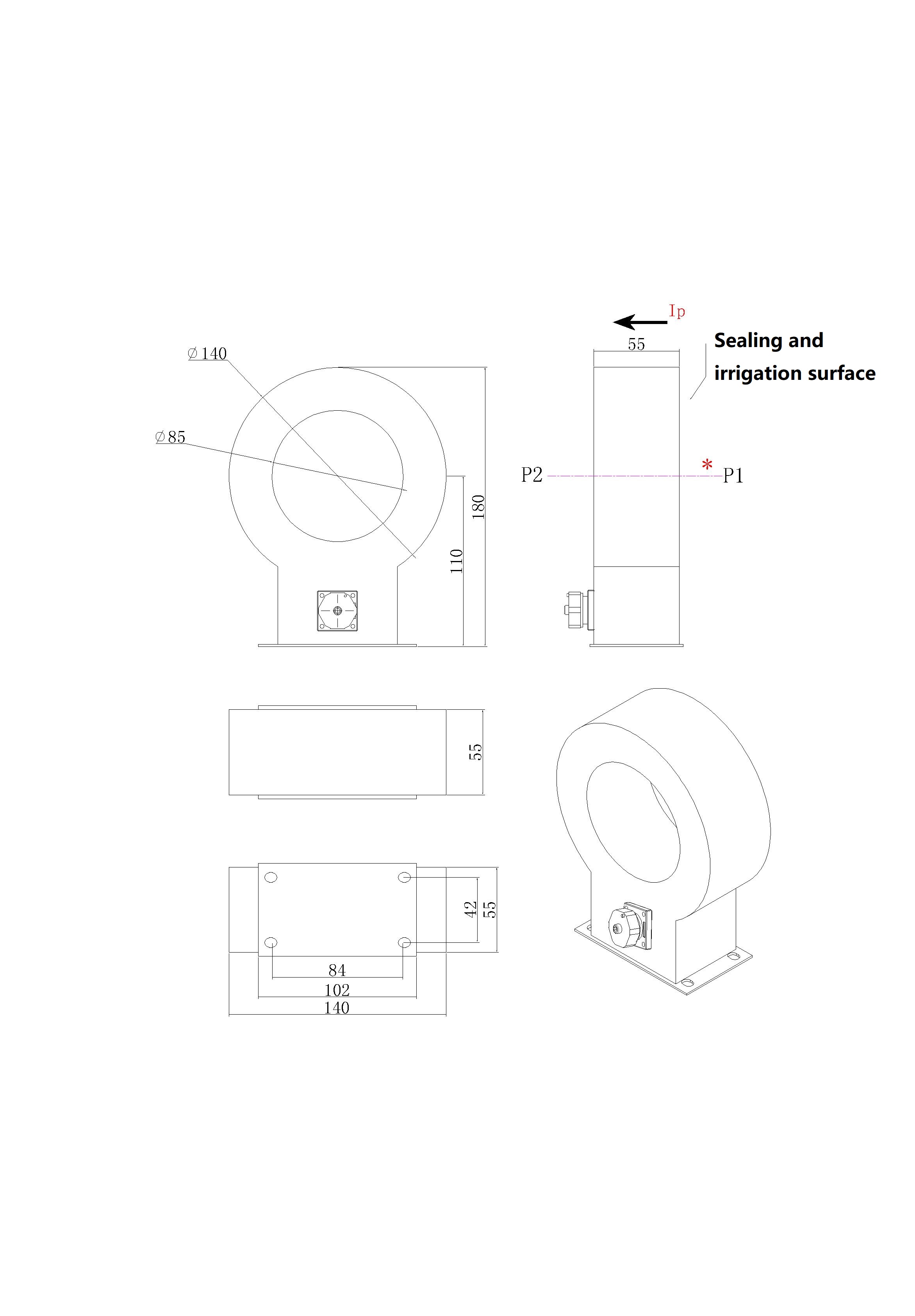

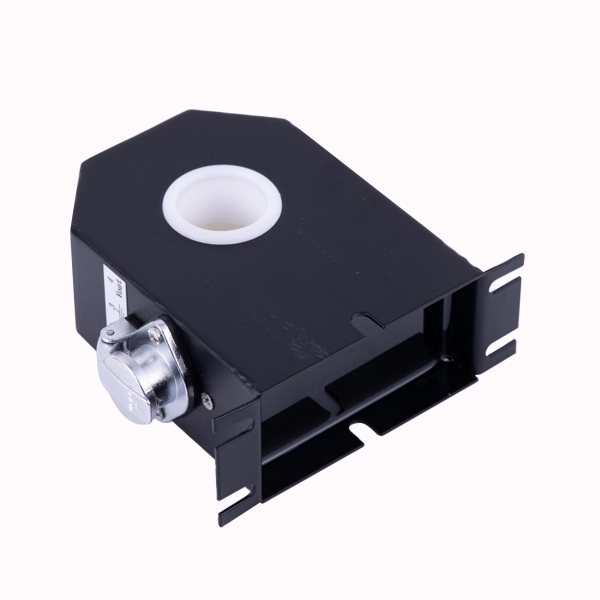

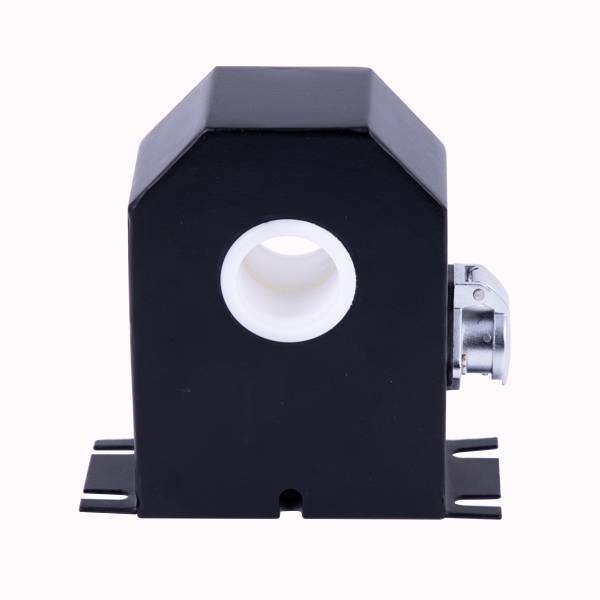

Product Images Model NO. Specification Outline Installation Drawing

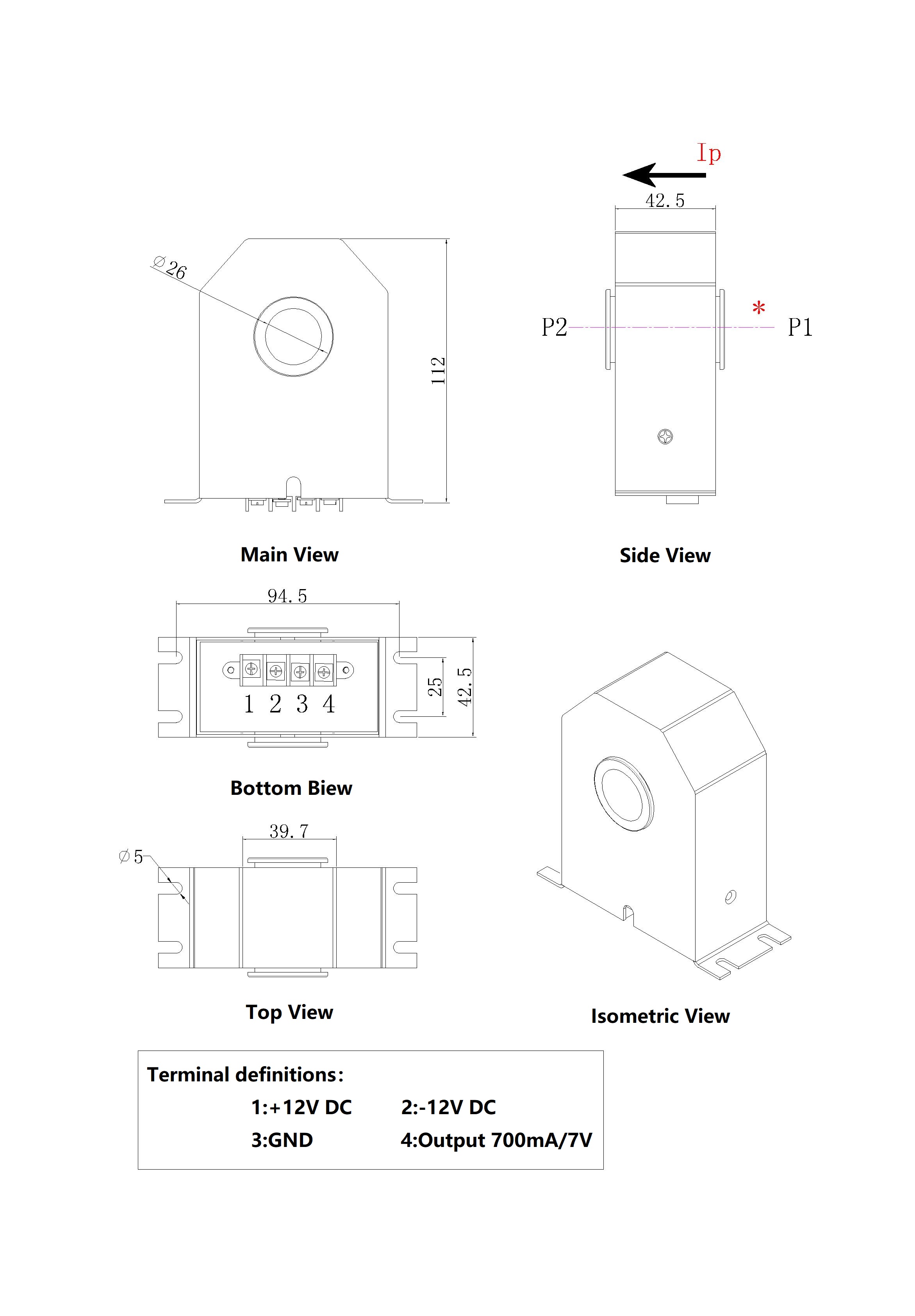

XL-1A  80-42-110(φ26)
BNWXLW-1T 10mA/10μA
BNWXLW-1T 20mA/20μA
BNWXL-1T 5mA/5V
BNWXL-1T 10mA/1V
BNWXL-1T 700mA/7V
BNWXL-1T 1A/5V
BNWXL-1T 200mA/5V-1A/5V

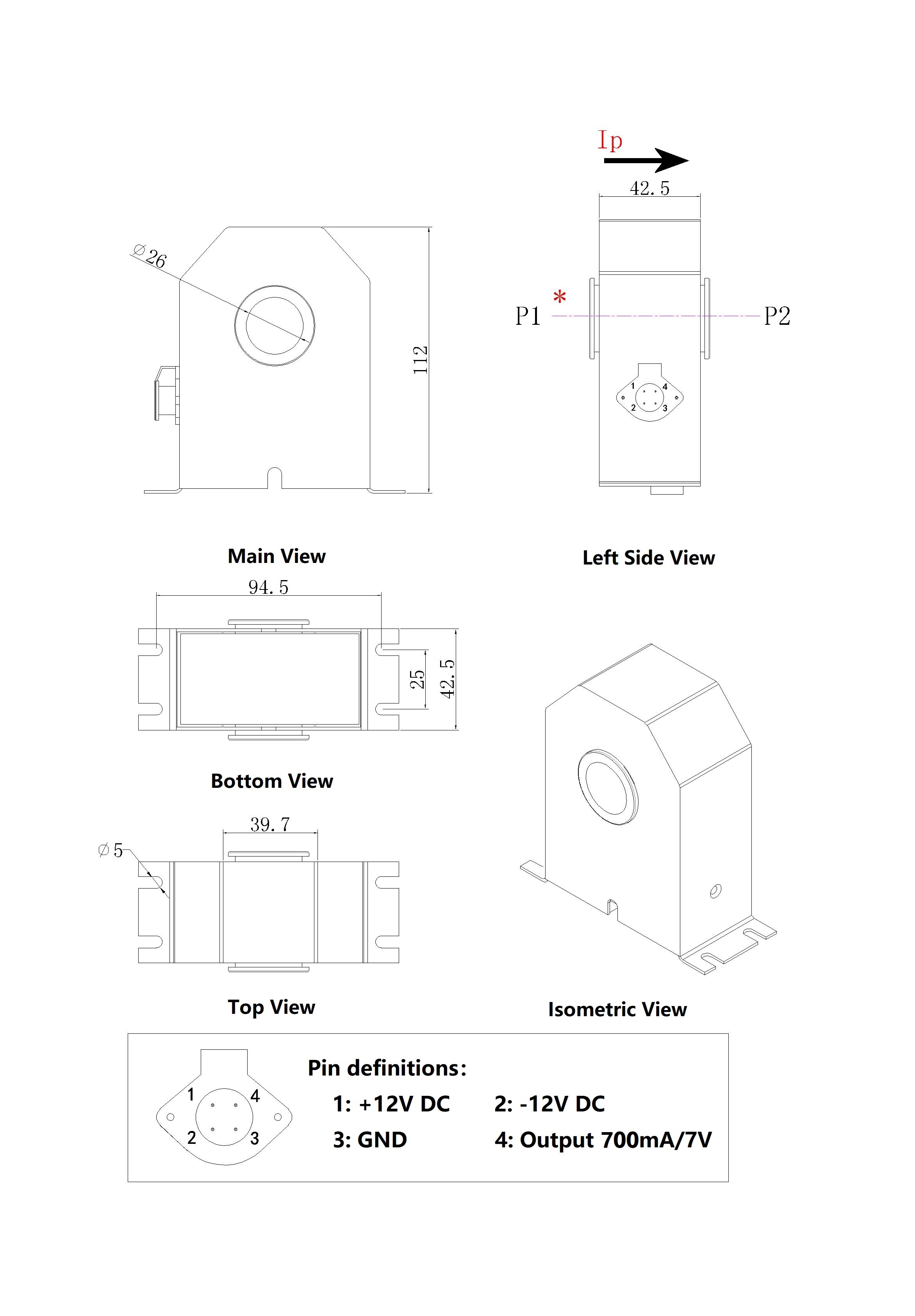

XL-1B  80-42-110(φ26)
BNWXL-1TW 10mA/1V
BNWXL-1TW 0.5(20A)/3.53V
BNWXL-1TW 700mA/7V
BNWXL-1TW 700mA/7V
  20A/20mA
BNWXL-1TW 10mA/1V
  20A/20mA
BNWXL-1TW 700mA/7V
  50A/50mA
Product Images Model NO. Specification Outline Installation Drawing

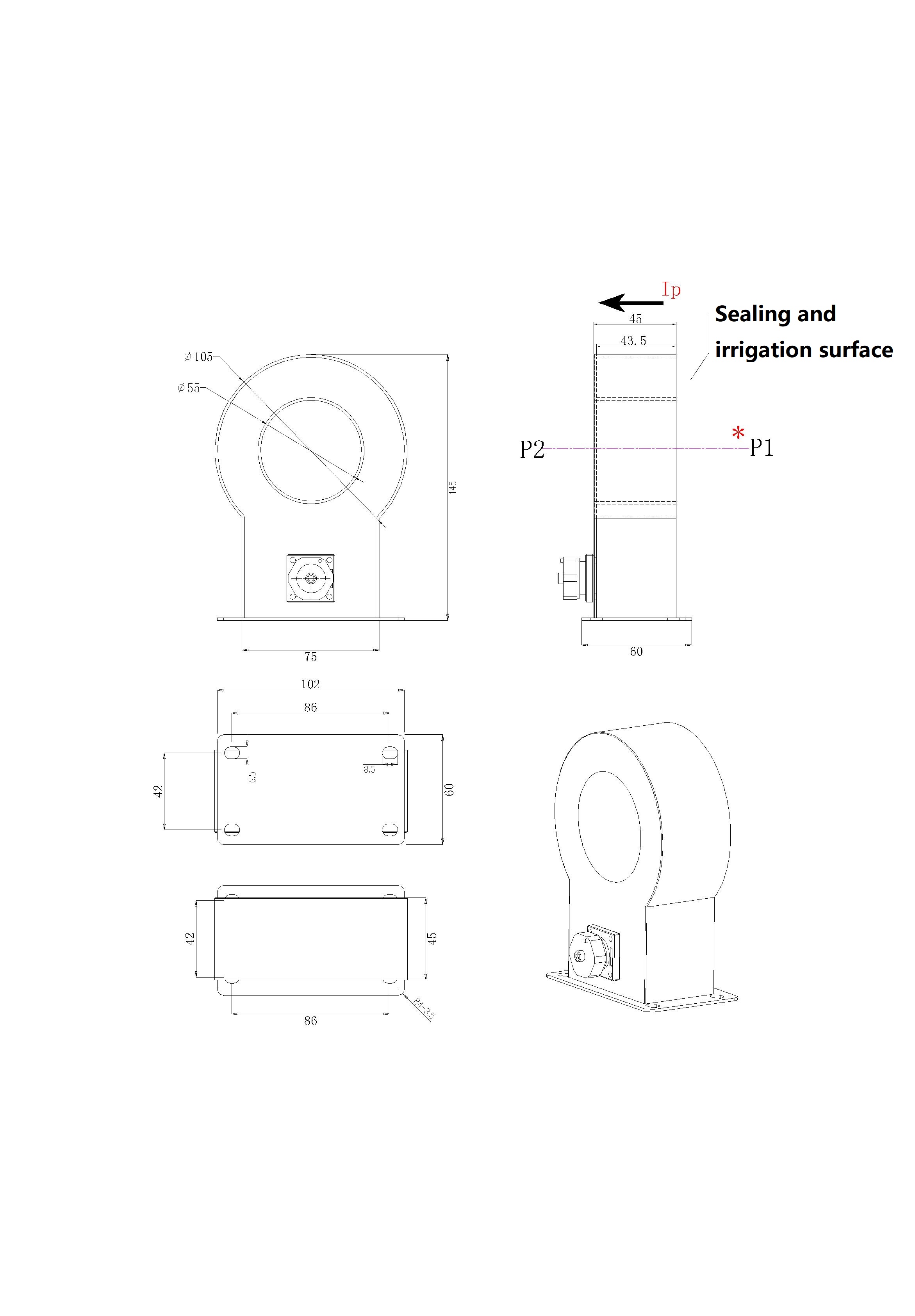

  XL-9  55-105-45(φ55)
BNWXL-55W 1(10)A/3.53V
BNWXL-55W -0.5(20)A/3.53V

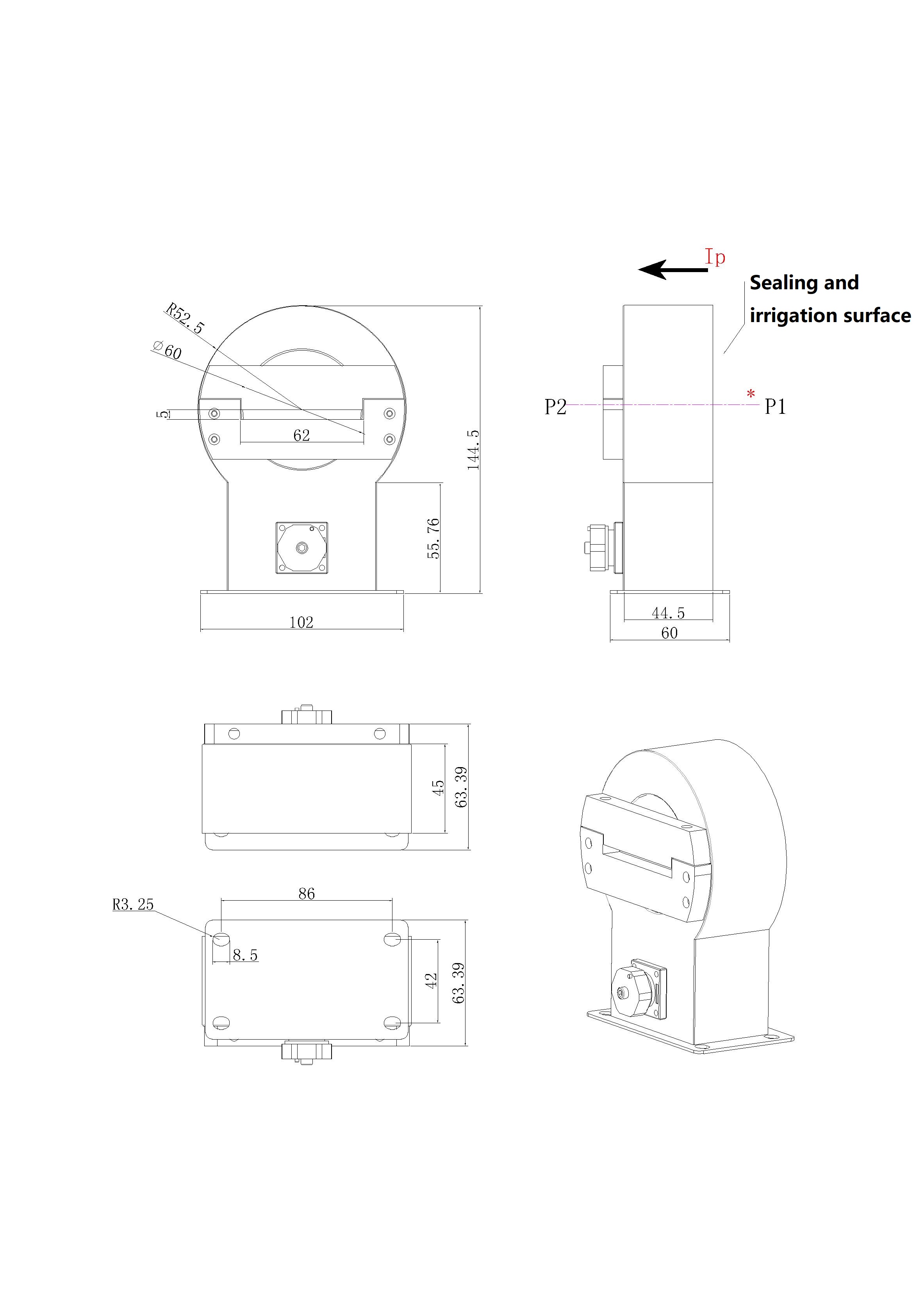

 XL-10  60-105-45(φ60)
BNWXL-60W -0.5(10)A/7V
BNWXL-60W 10A/7V
BNWXL-60W 700mA/7V
BNWXL-60W -0.5(30)A/3.53V
BNWXL-60W 0.05(0.7)A/3.53V
BNWXL-60W 0.7(10)A/3.53V

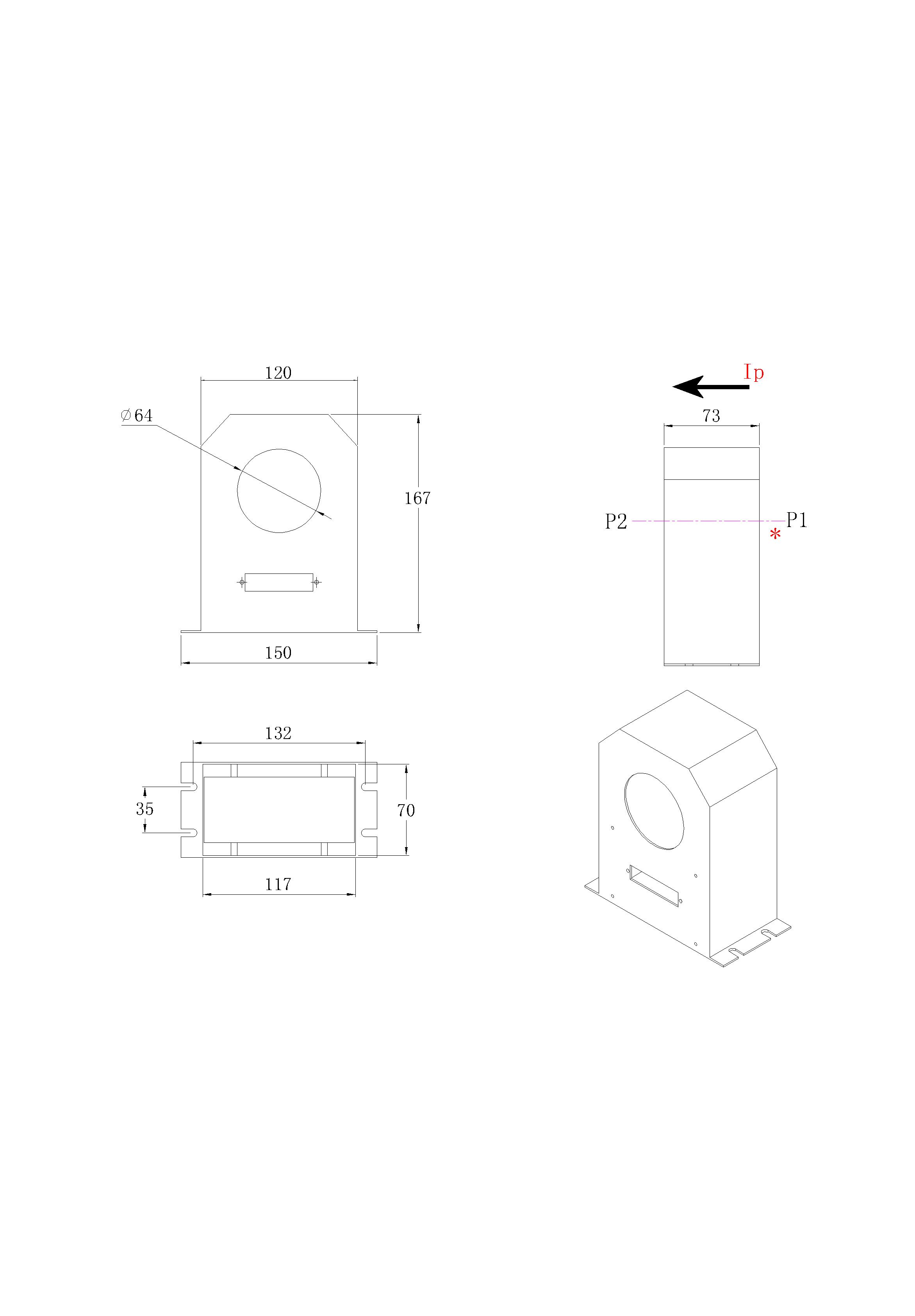

XL-11 60-150-73-167(φ60)
BNWXL-60TW 10A/10mA









XL-12  85-140-55(φ85)
BNWXLW-85 5mA/5μA
BNWXL-85W -0.5(30)A/3.53V







Product Images Model NO. Specification Outline Installation Drawing

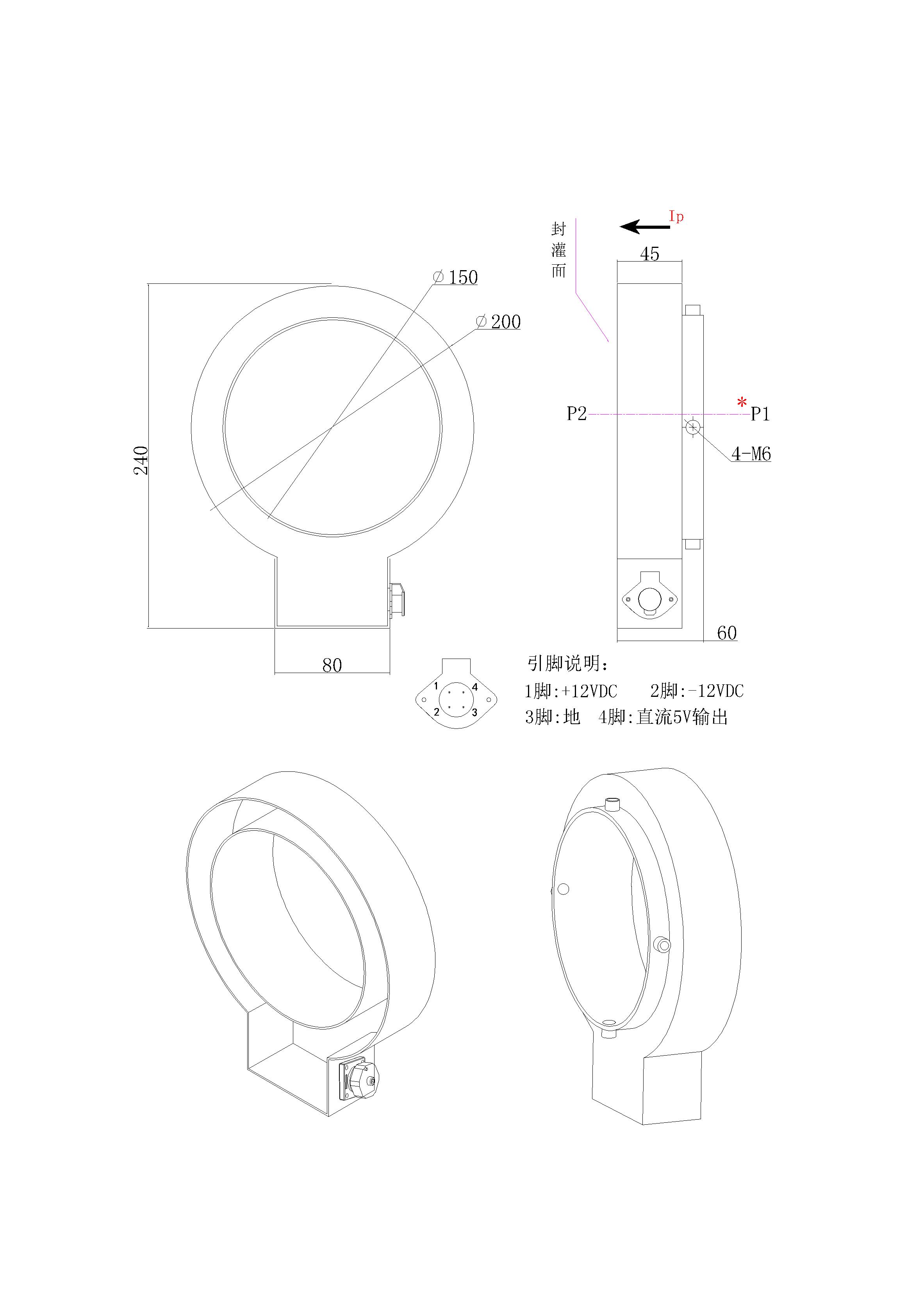

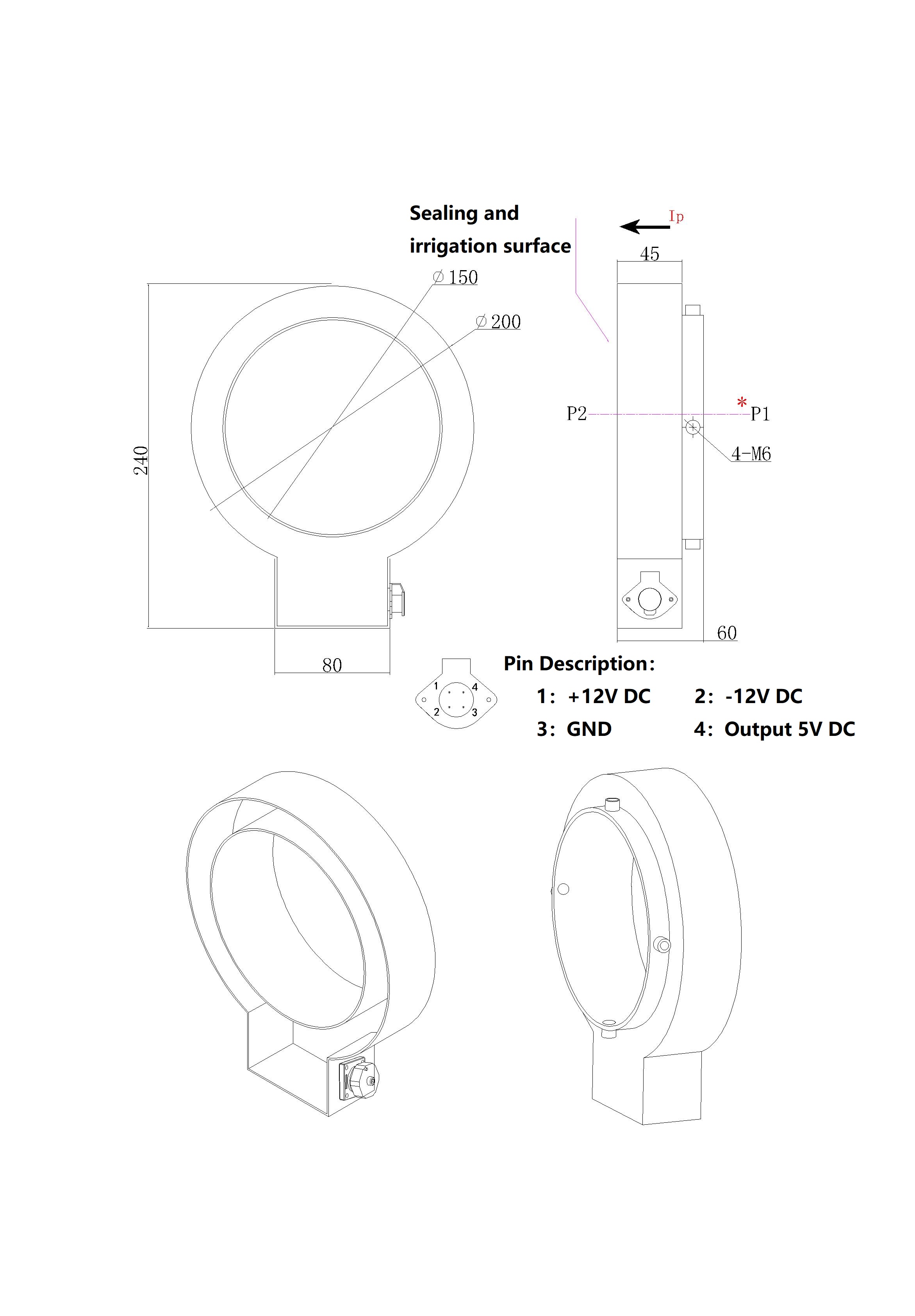

XL-15  150-200-45(φ150)
BNWXL-150W 100mA/5V
BNWXL-150W 1A/5V
BNWXL-150W AC200mA/DC2V
BNWXL-150W AC500mA/DC5V





XL-17  □80-20-60
BNWXL-802060W 10mA/2.12V







XL-18  70-70-120(φ30)
BNWXL-30 10mA/1V 40A/1A







 XL-21  75-140-55(φ75)
BNWXL-75W -0.5(30)A/3.53V







Note: can be customized according to customer requirements (through hole diameter, external dimensions, parameter transformation ratio)
