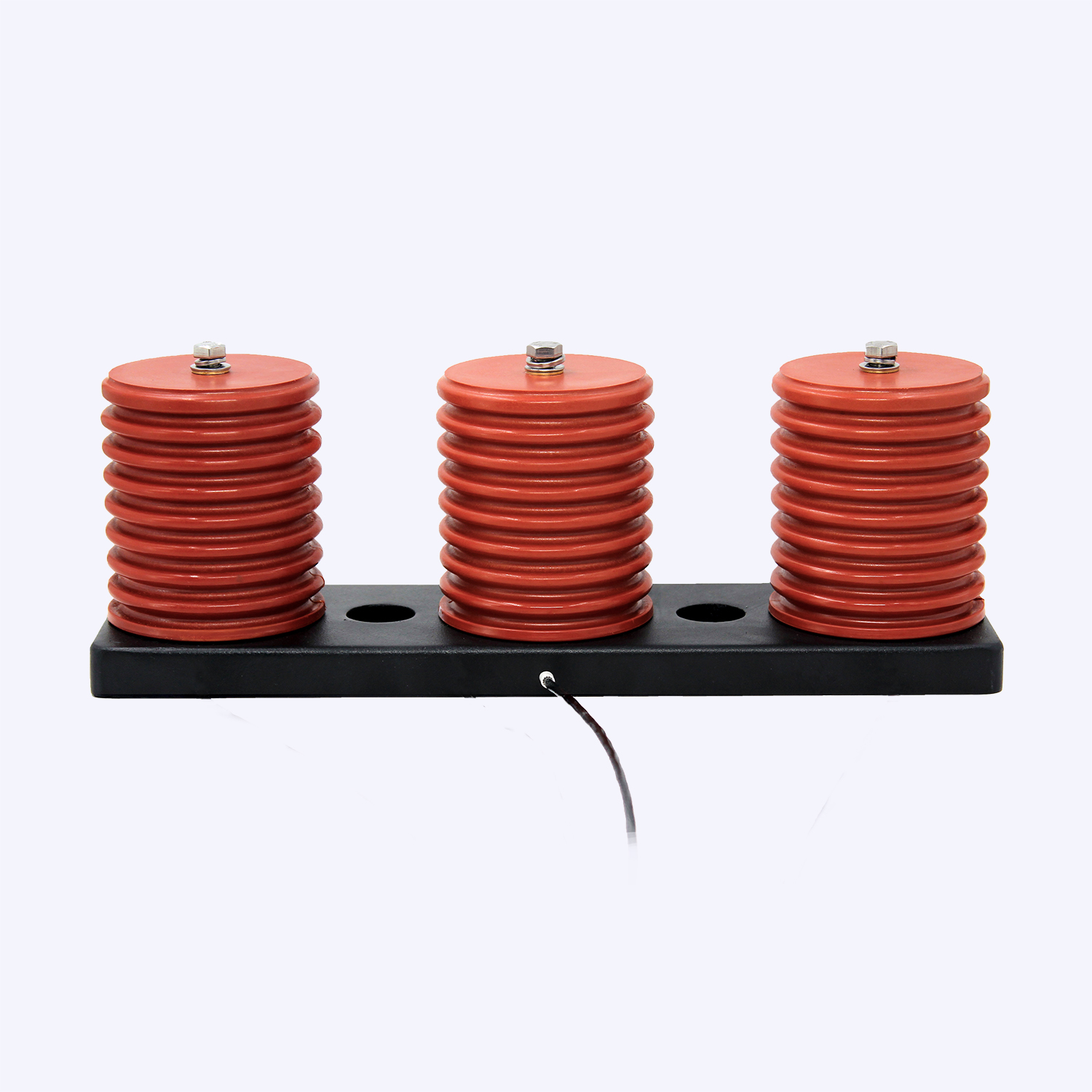

PRODUCT OVERWIEW
TR-ECT-10 electronic current sensor is suitable for 10KV column switch, ring main unit, three-phase bushing of column switch, mainly used for three-phase current and zero-sequence current measurement, measurement and protection of three-in-one Features. It is made of the principle of LPCT low-power coil and designed in accordance with the group standard requirements of T/CES 018-2018 "Technical Conditions for 10kV and 20kV AC Sensors in Distribution Networks". It can be matched with zw20 type, zw32 type high-voltage switch on the column, with low power consumption and high accuracy.
Product Features

Adopting the principle of LPCT low-power coil, it can directly output standard small signal without secondary conversion, and directly input secondary equipment through A/D conversion;

The magnetic core has high permeability and low temperature drift. In the temperature range of -40℃~+70℃, especially at -40℃, the variation of the error meets the standard requirements

Using low temperature drift resistance, it can work for a long time under 4 times the current, and work for a short time under the condition of 10 times overload;

At 30 times the current, that is, single-phase 600A, the zero-sequence output can work for a long time;

The secondary signal output adopts shielded cable to prevent interference.

PERFORMANCE
Type Parameters
Rated Primary Current Measurement 600A  / Zero Sequence 20A
Rated Secondary Output Measurement: 1V    (Or conventional 5A, 1A)
Zero Sequence: 0.2V  (Or conventional 1A)
Accuracy Measurement: 0.5S Class(5P10)
Zero Sequence: 1 Class(10P10)
Rated Load ≥20KΩ
Rated Frequency 50Hz
Insulation level 3kV
Executive Standard IEC 60044-8;GB/T20840.8-2007
Working Environment Tempreture -40℃~+70℃
Product Display

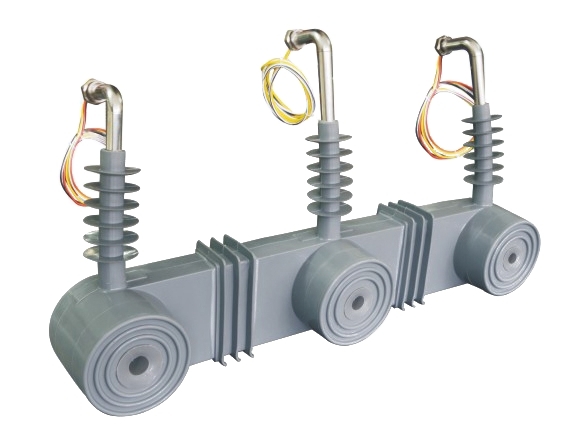

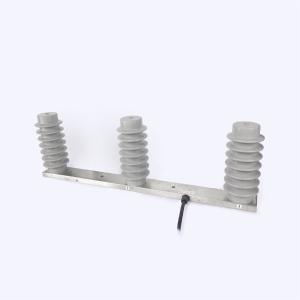

ZW20 Current Sensor for Switch

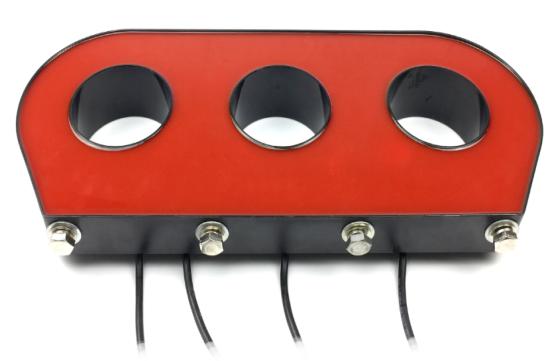

ZW32 Current Sensor for Switch

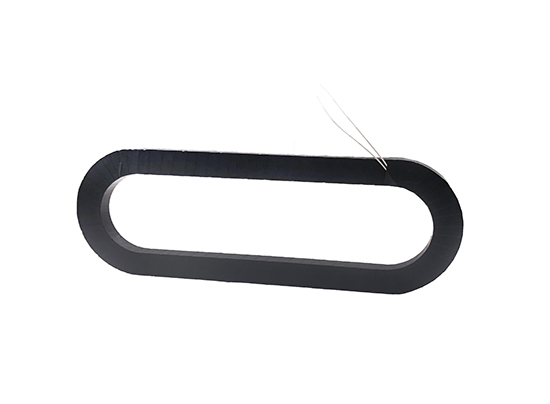

Current Transformer for LW3 Sulfur Hexafluoride Circuit Breaker

We are a manufacturer has export qualification and experience.

instrument type at least 100pcs ;others by 1 -5 pcs;

T/T;L/C;

Instrument transformer 20 thousand pcs ;current transformer 12 thousand pcs ;voltage transformer 11 thousand pcs.

We have a R&D team for new product design. Successful cases and in continued cooperation. Discussion among both sides ➡general specification ensure➡structure drawing ➡original sample ➡electrical

Standard Carton Export fumigatin-free tray Tray Film Edge fixing strip Vacuum packaging acceptable Customize size acceptable
