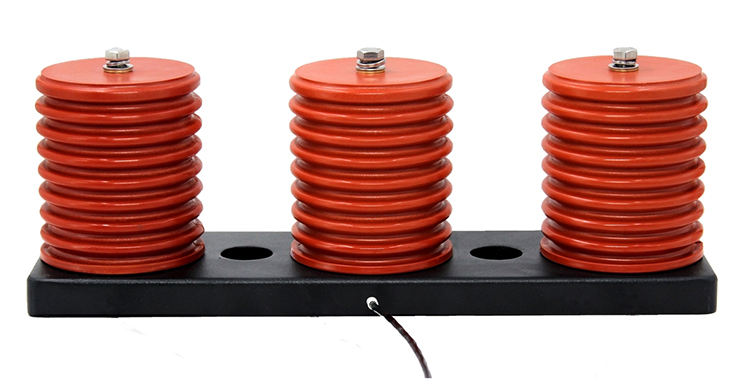

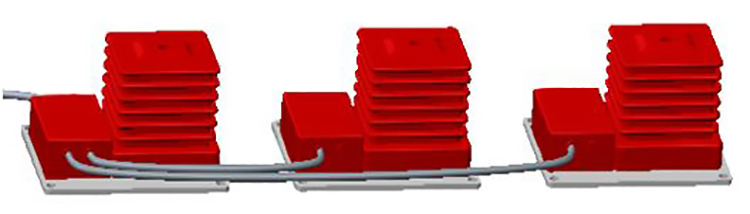

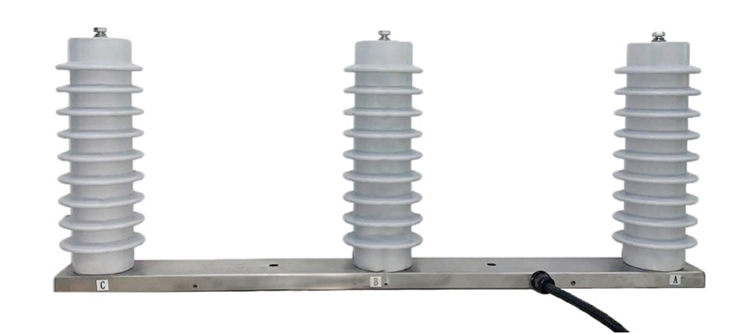

Simplify the system structure, directly output standard small signal without secondary conversion, directly input secondary equipment through A/D conversion, reducing the source of errors;
The magnetic core has high permeability and low temperature drift. In the temperature range of -40℃～+70℃, especially at -40℃, the variation of the error meets the standard requirements
The output internal resistance is small, which overcomes the error caused by the cable and can be adapted to various cables;
The composite film capacitor with CVT transformer structure has good long-term stability;
The accuracy changes little due to the influence of ambient temperature.
| Type | Parameters |
|---|---|
| Rated Primary Voltage | 10kV / |
| Rated Secondary Putput | Phase Voltage: 3.25V / Zero Sequence Voltage: 6.5V / 3 |
| Accuracy | Phase Voltage: 0.5 Class Zero Sequence Voltage: 1 Class |
| Capacity | 0.5MΩ~5 MΩ （Can be determined according to user requirements） |
| Rated Frequence | 50Hz |
| Insulation level | 12/42/75kV |
| Partial Discharge | ≤10pC （14.4kV） |
| Executive Standard | IEC 60044-7；GB/T20840.7-2007 |
| Working Environment | Ambient Temperature -40℃～+70℃ |
