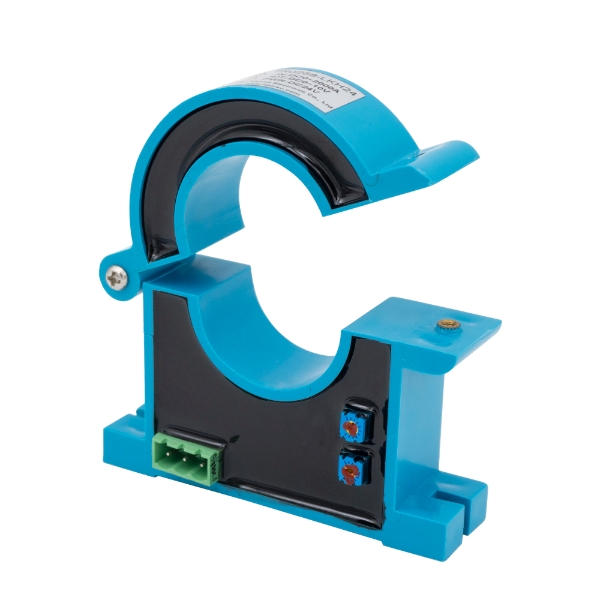

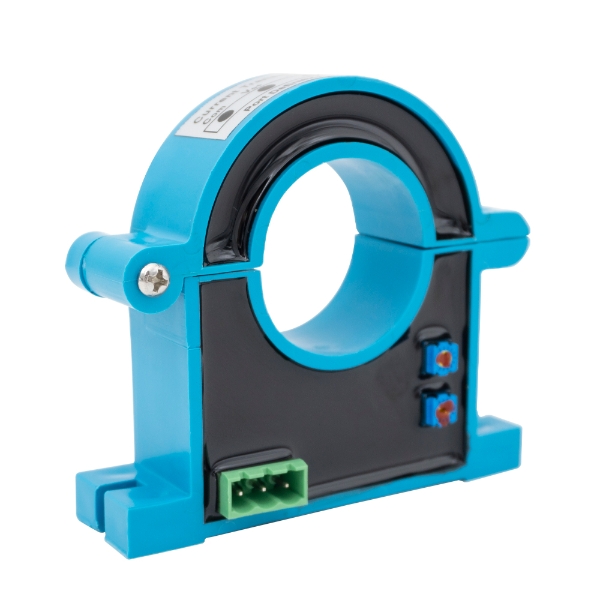

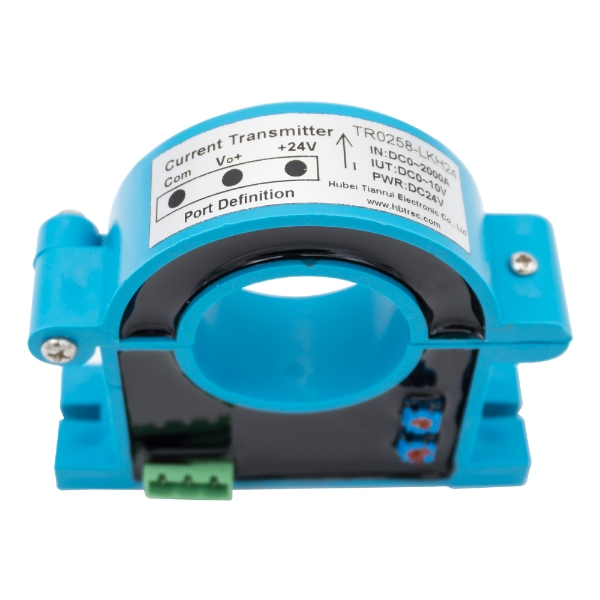

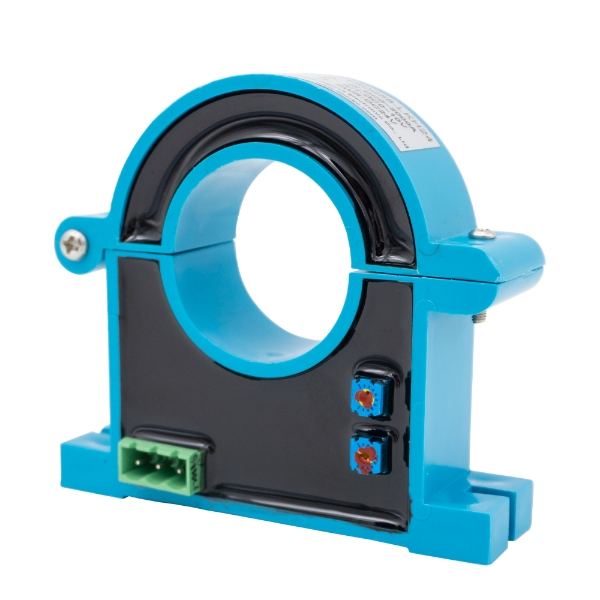

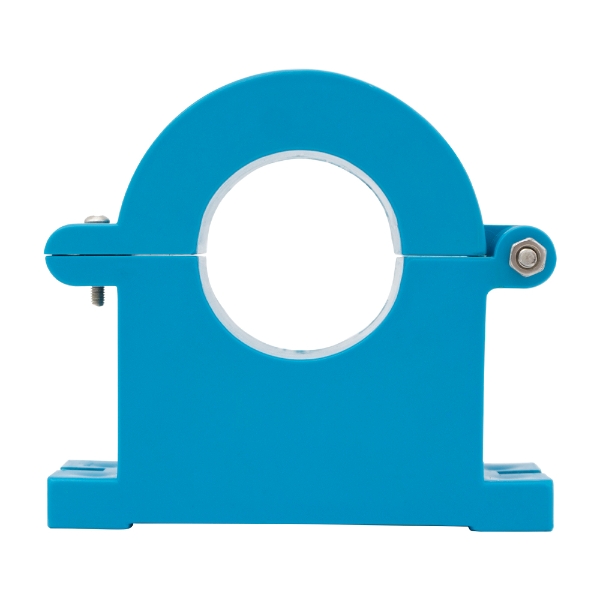

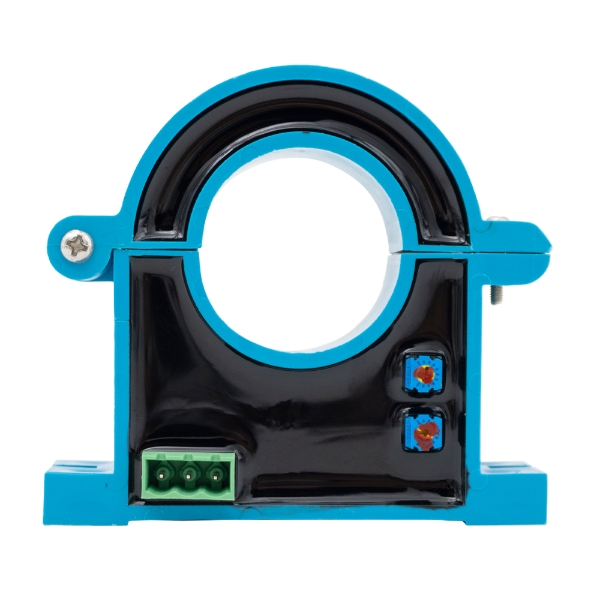

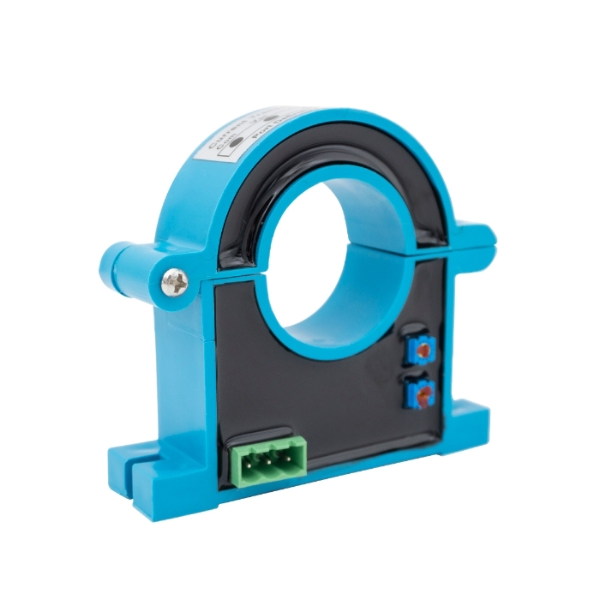

Open-Loop Hall Effect Current Sensor

  • Product Detail
  • FAQ
  • Qualification certificate
  • Send Inquiry
Product Overview

The Open-Loop Hall Effect Current Sensor operates on the ‌direct-measurement Hall-effect detection principle‌. The magnetic flux generated by the primary current is concentrated through the magnetic circuit and converted into a Hall voltage signal by the Hall device. After amplification by an amplifier, this voltage signal ‌accurately reflects the magnitude of the primary current‌.
Product Features


Best cost-performance ratio.

Low power consumption.

Compact and lightweight design.

Easy installation, no insertion loss.

Applications


Variable frequency drive systems.

Welding machine control.

Electrochemical applications.

Power supply monitoring.

Technical Data


@TA=25℃,unless otherwise stated.

Type TR0258-LKH24 Product Specifications
IPN Primary Rated Input Current DC 2000A PDF文档
IP Primary Current Measurement Range DC 0～2400A
VSN Secondary Rated Output Voltage DC 10V
UC The Power Supply Voltage DC 24V
RL Load Capacity RL ≤650Ω
εL Linearity 0.5%
X Accuracy ±0.5%
BW Frequency Bandwith DC ~20kHz
  di/dt Accurately Followed >50A/μs
IC Current Consumption ≤25mA
Ud Power Frequency Withstand Voltage 2.5kV AC/1min
Tr Response Time < 200ms
I0 Offset Current ≤80μA
  Temperature Drift ≤500ppm/℃
TA Ambient Operating Temperature -10℃~+70℃
TS Ambient Storage Temperature -25℃~+85℃

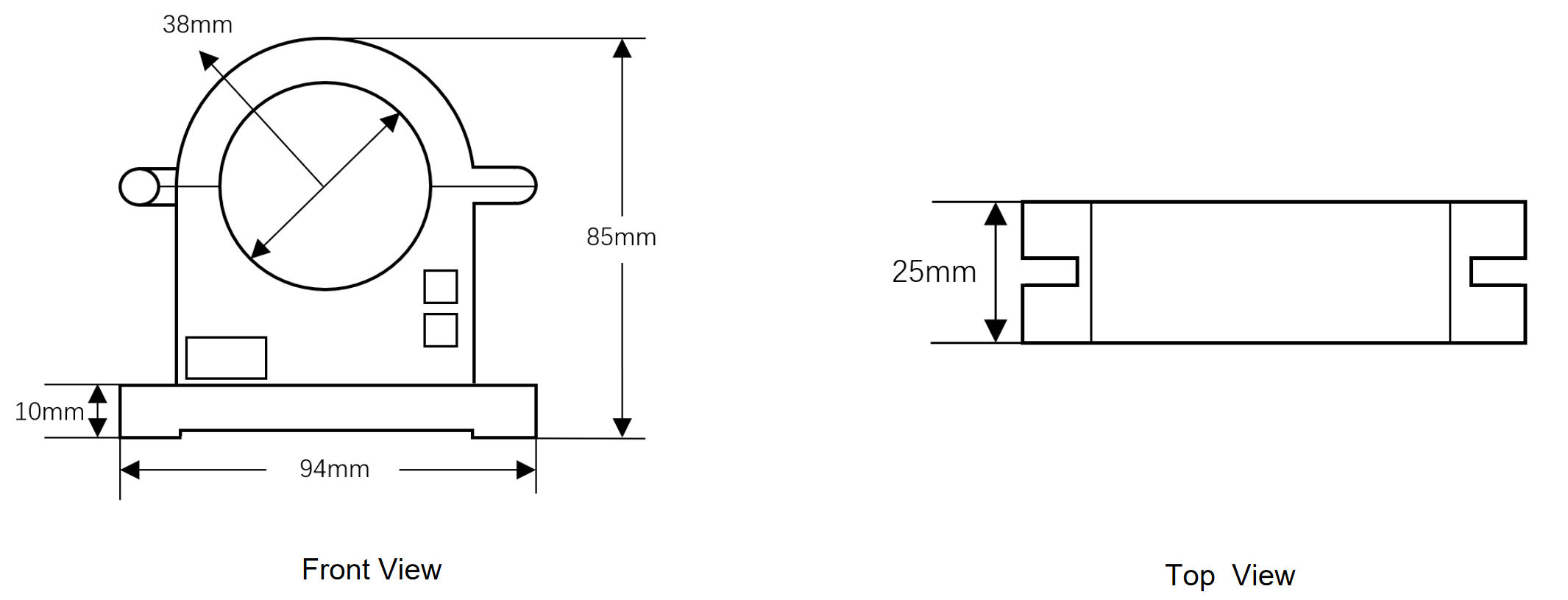

Mechanical Dimension(mm)

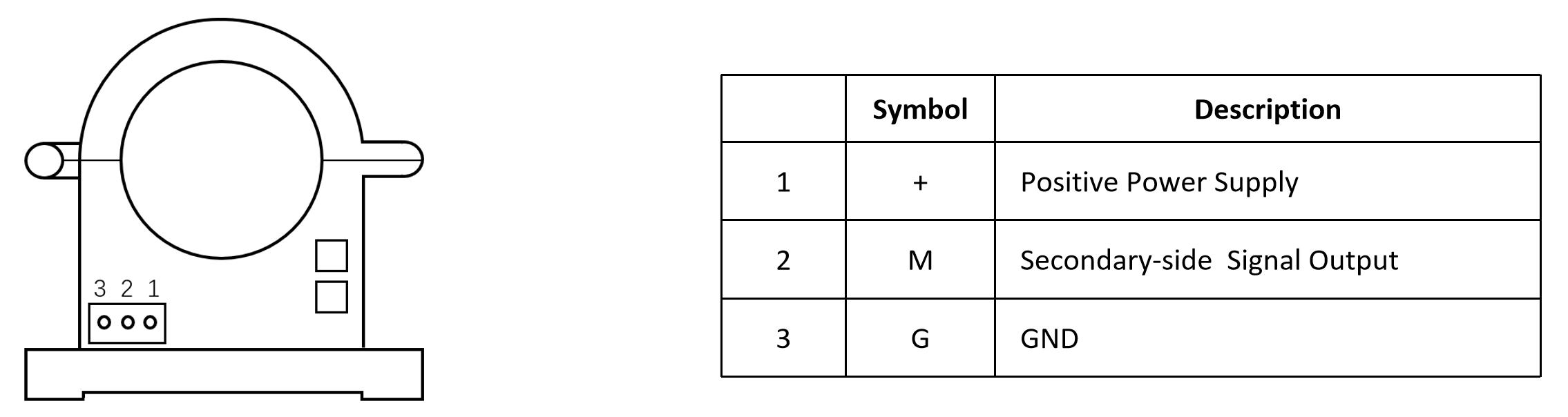

Circuit Connection Diagram
