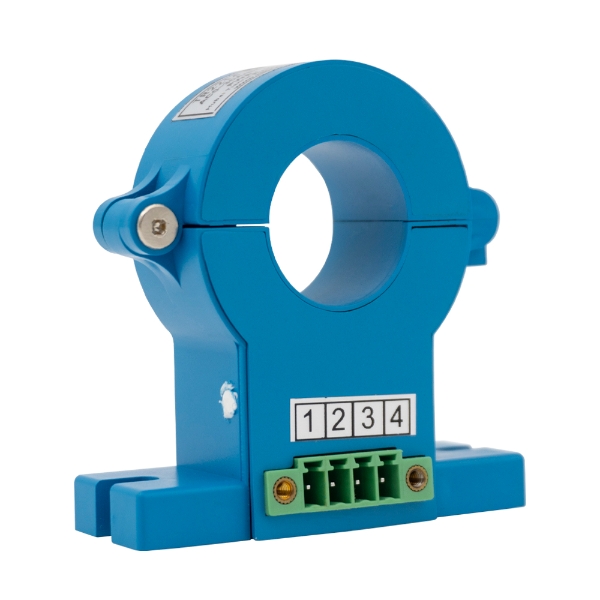

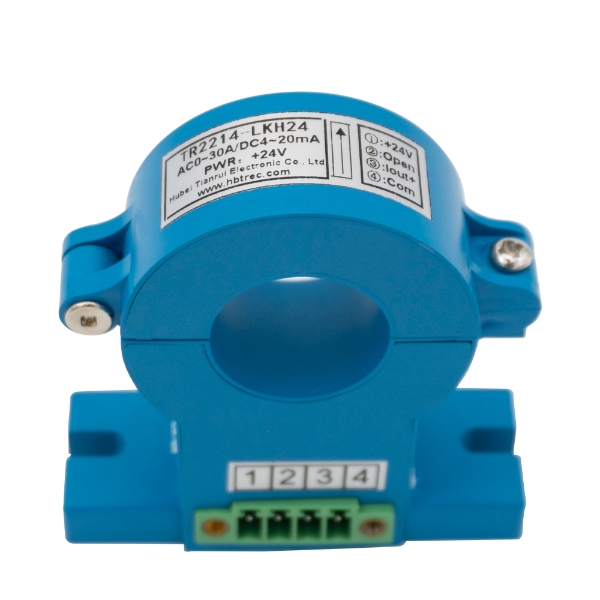

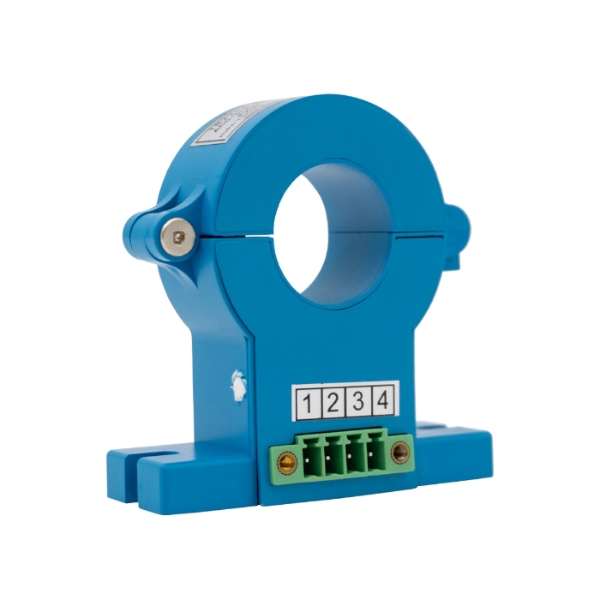

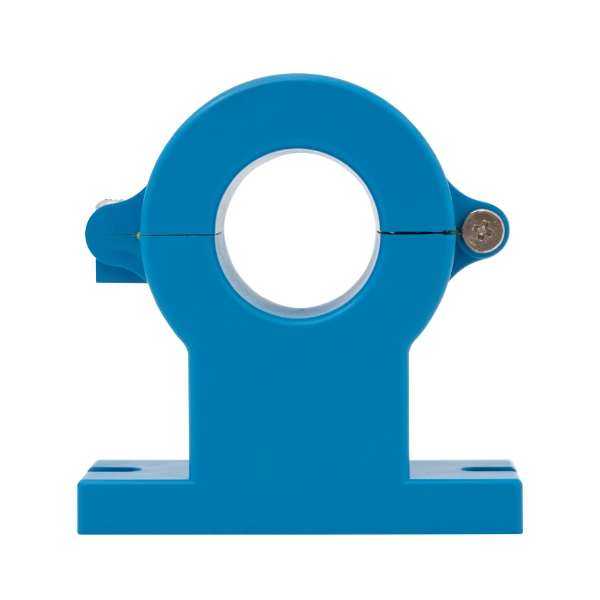

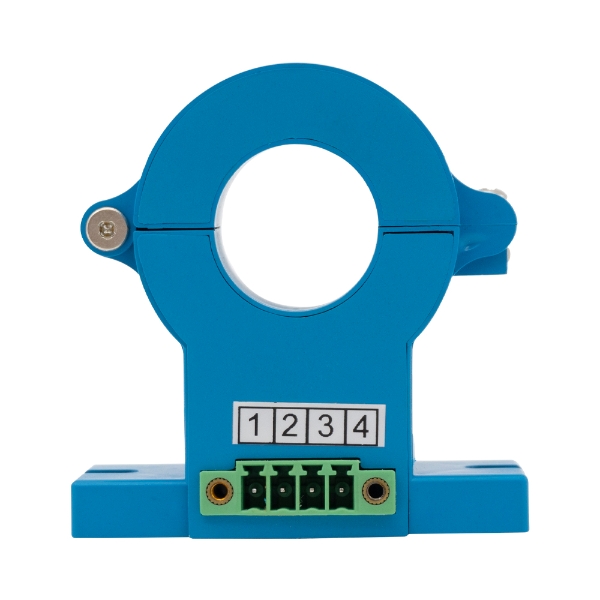

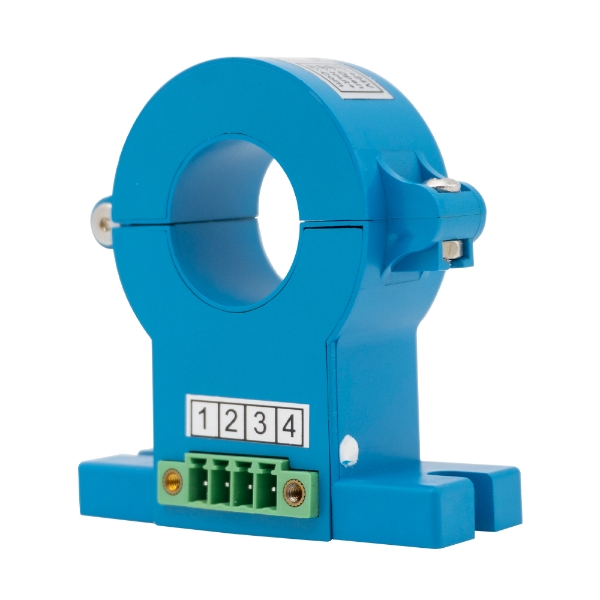

TR2214-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~30A/DC 0~20mA
TR2214-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~30A/DC 0~20mA TR2214-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~30A/DC 0~20mA TR2214-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~30A/DC 0~20mA TR2214-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~30A/DC 0~20mA TR2214-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~30A/DC 0~20mA TR2214-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~30A/DC 0~20mA

TR2214-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~30A/DC 0~20mA

Open-Loop Hall Effect Current Sensor

  • Product Detail
  • FAQ
  • Qualification certificate
  • Send Inquiry
Product Overview

The Open-Loop Hall Effect Current Sensor operates on the ‌direct-measurement Hall-effect detection principle‌. The magnetic flux generated by the primary current is concentrated through the magnetic circuit and converted into a Hall voltage signal by the Hall device. After amplification by an amplifier, this voltage signal ‌accurately reflects the magnitude of the primary current‌.
Product Features


AC/DC/pulse current measurement.

Excellent EMI immunity & high CMRR.

Low drift, fast response , wide bandwidth.

Non-invasive through-hole design.

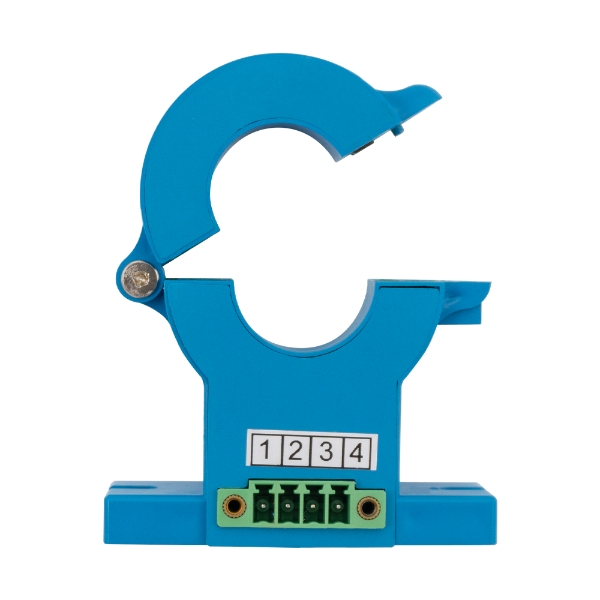

Split-core structure for easy installation.

Applications


AC variable frequency drive systems.

Servo motor traction control.

Uninterruptible power supplies (UPS).

Welding equipment & battery power systems.

Technical Data


@TA=25℃,unless otherwise stated.

Type TR2214-LKH24 Product Specifications
IPN Primary Rated Input Current AC 30A PDF文档
IP Primary Current Measure Range AC 0~36A
IS Secondary Rated Output Current DC 4~20mA
UC The Power Supply Voltage DC +24V
RL Load Capacity RL ≤300Ω
εL Linearity 2%
X Accuracy ±1%
  Overload Capacity 2 times
IC Current Consumption ≤25mA+IS
Ud Power Frequency Withstand Voltage 3kV AC/1min
Tr Response Time < 250ms
V0 Offset Voltage ≤ 20mV
  Temperature Drift ≤200ppm/℃
TA Ambient Operating Temperature -20℃~+80℃
TS Ambient Storage Temperature -25℃~+85℃

IS：output current

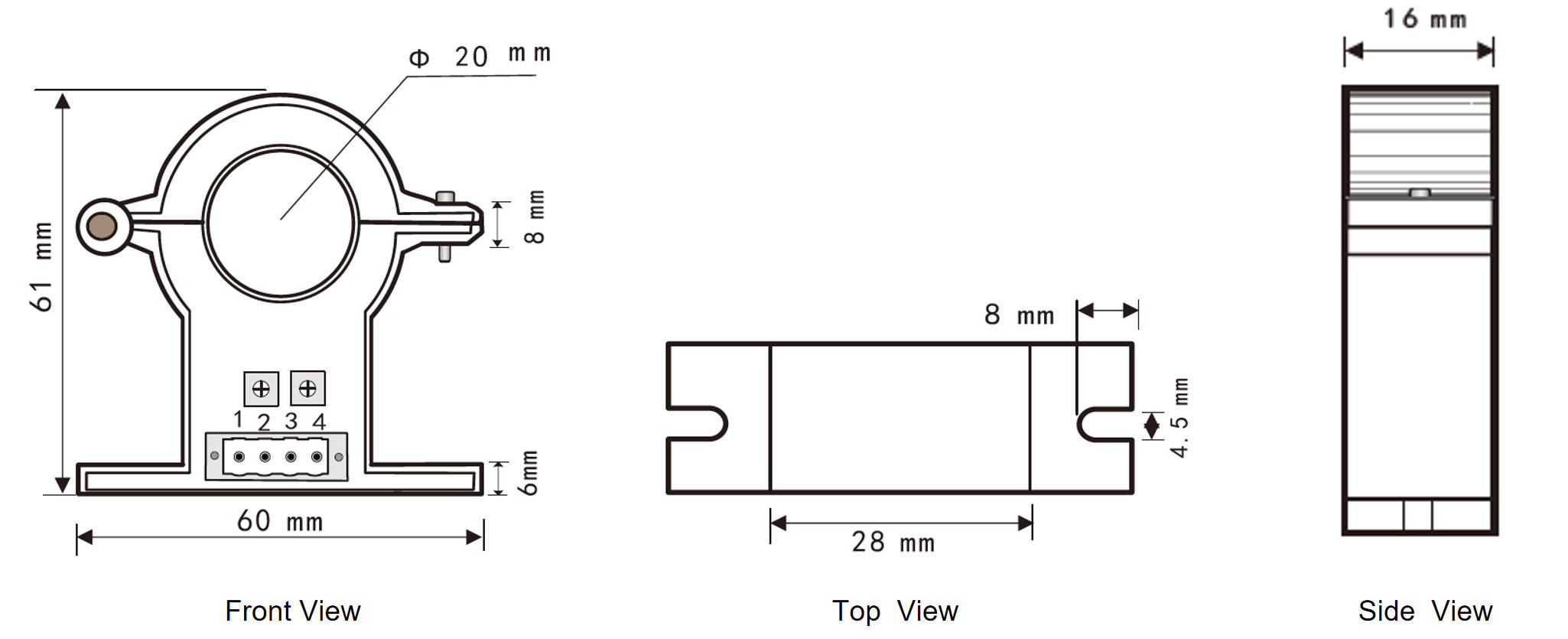

Mechanical Dimension(mm)

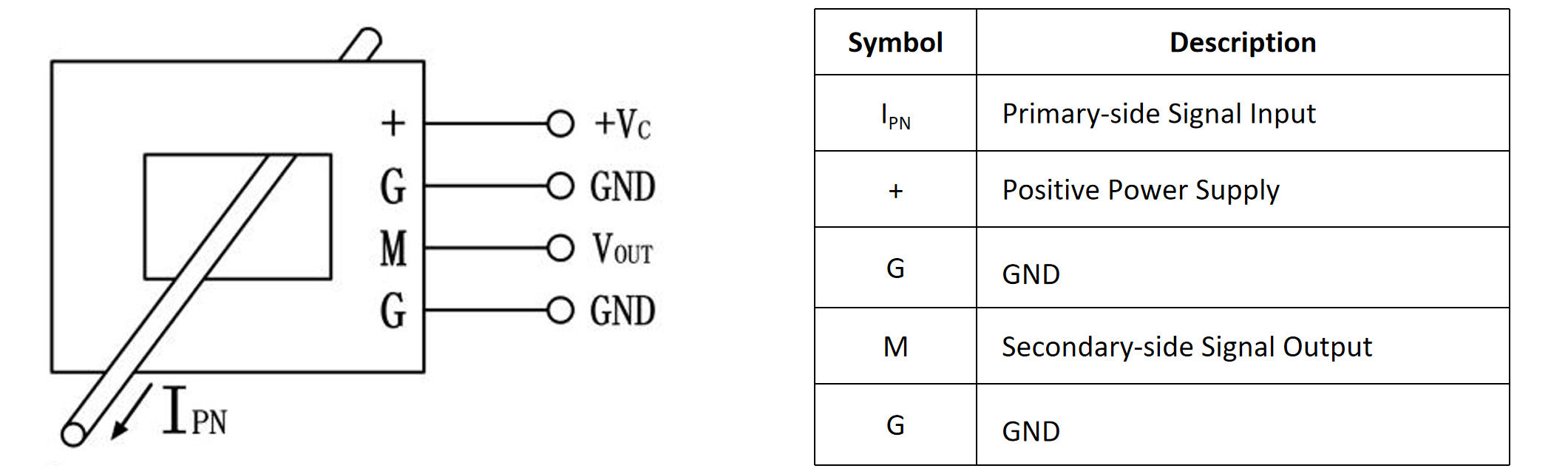

Circuit Connection Diagram
