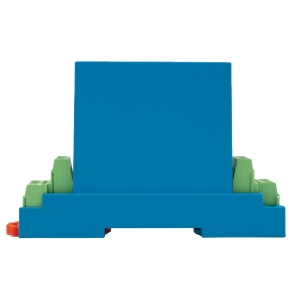

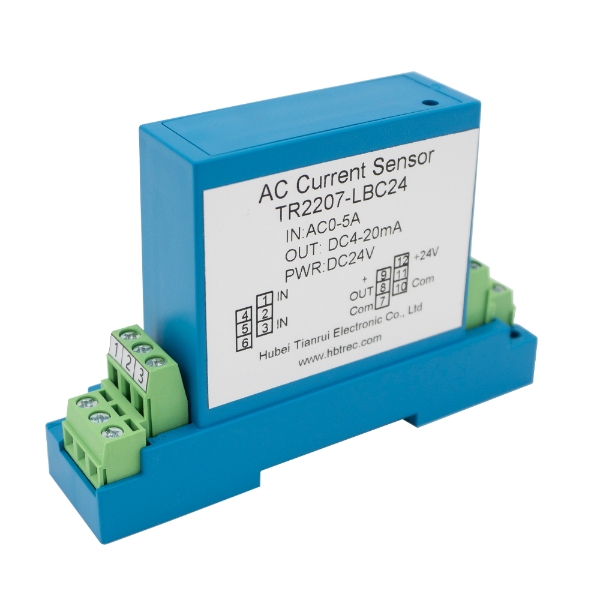

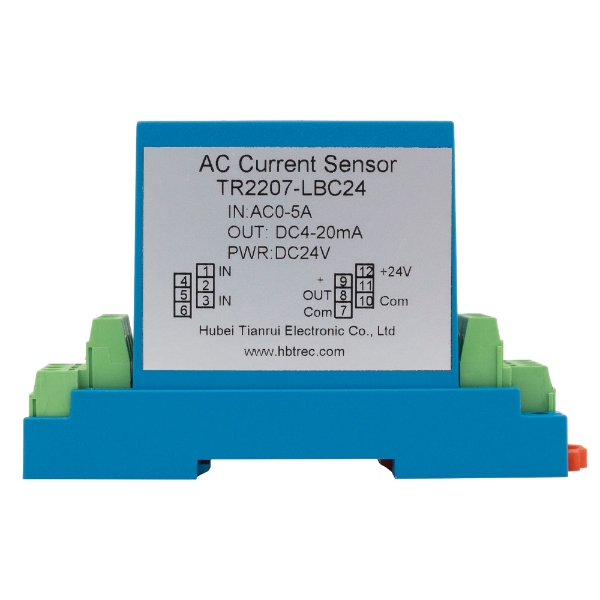

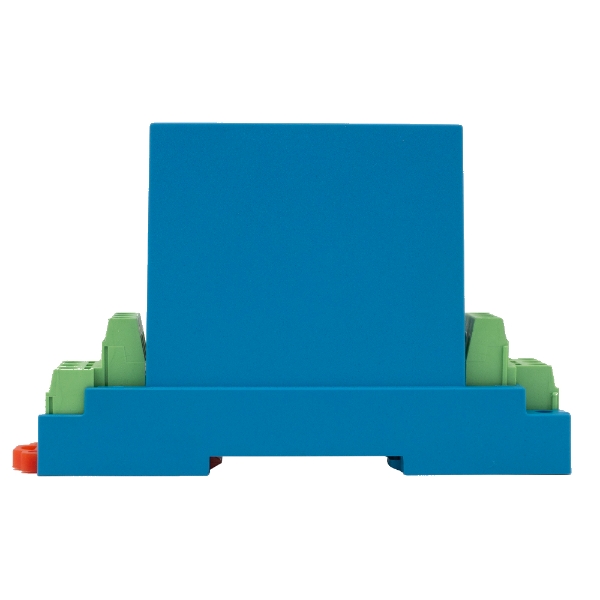

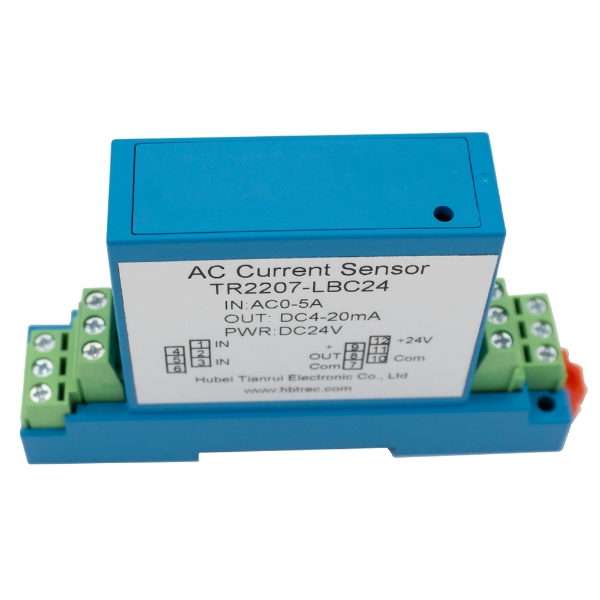

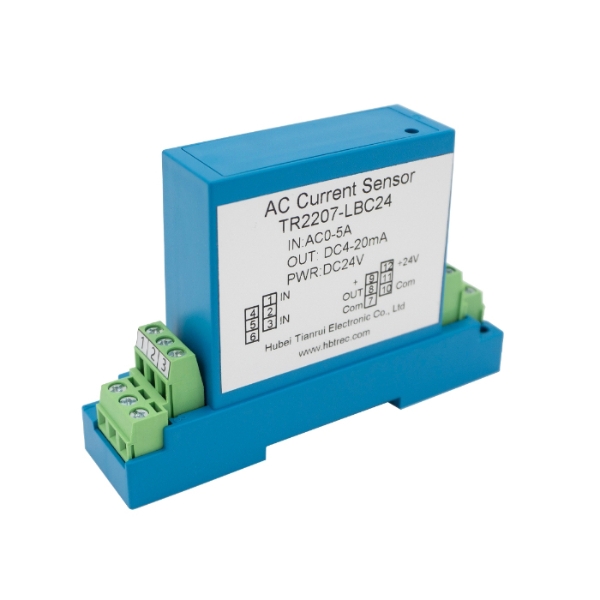

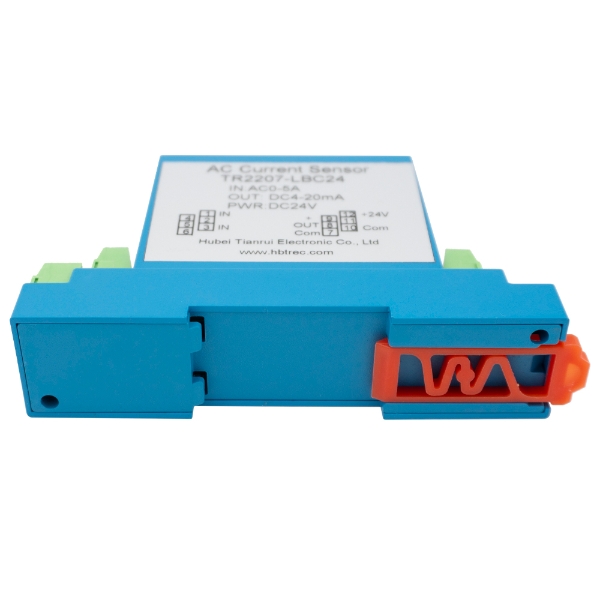

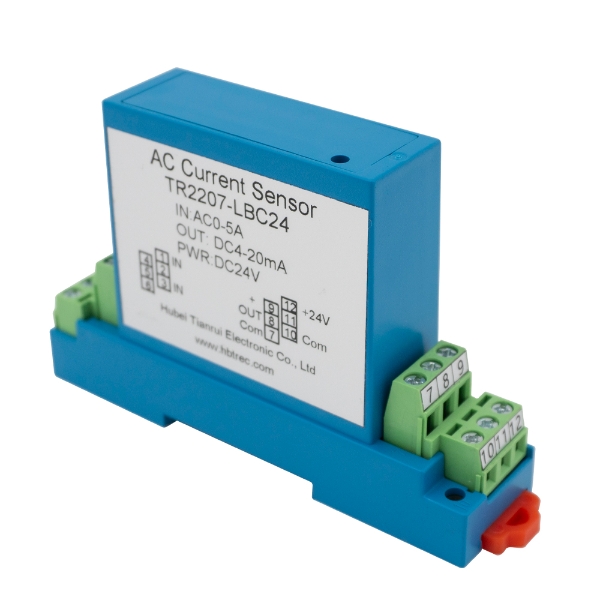

TR2207-LBC24 AC Current Sensor AC 0~5A/DC 4~20mA
TR2207-LBC24 AC Current Sensor AC 0~5A/DC 4~20mA TR2207-LBC24 AC Current Sensor AC 0~5A/DC 4~20mA TR2207-LBC24 AC Current Sensor AC 0~5A/DC 4~20mA TR2207-LBC24 AC Current Sensor AC 0~5A/DC 4~20mA TR2207-LBC24 AC Current Sensor AC 0~5A/DC 4~20mA TR2207-LBC24 AC Current Sensor AC 0~5A/DC 4~20mA

TR2207-LBC24 AC Current Sensor AC 0~5A/DC 4~20mA

AC Current Sensor

  • Product Detail
  • FAQ
  • Qualification certificate
  • Send Inquiry
Product Overview

This Sensor performs ‌isolated measurement and conversion‌ of field parameters such as ‌high-voltage/high-current, power, frequency, phase angle, and electroplating levels‌. Its output signals can ‌connect directly‌ to traditional ‌analog pointer instruments‌, as well as modern ‌digital automation instruments‌, various ‌A/D converters‌, and ‌computer systems‌. This enables the establishment of a ‌highly reliable industrial monitoring and control system‌.
Product Features


Excellent accuracy, good linearity.

High immunity to interference, excellent CMRR.

Low drift, low power, wide bandwidth.

High isolation between primary and secondary.

Applications


Automatic Control.

Measuring Meter.

Railway Monitoring System.

Station Control System.

Technical Data


@TA=25℃,unless otherwise stated.

Type TR2207-LBC24
IPN Primary Rated Input Current AC 5A
IP Primary Current Measurement Range AC 0~6A
ISN Secondary Rated Output Current DC 4~20mA
UC The Power Supply Voltage DC 24V
RL Load Capacity RL ≤ 500Ω
εL Linearity 0.1%
X Accuracy ±0.5%
BW Frequency Bandwith 40 ~ 5kHz
  Overload Capacity 10 times
IC Current Consumption <15mA+IS
Ud Power Frequency Withstand Voltage 2.5kV AC/1min
Tr Response Time <200ms
V0 Offset Voltage ≤50mV
  Temperature Drift ≤500ppm/℃
TA Ambient Operating Temperature -10℃~+70℃
TS Ambient Storage Temperature -25℃~+85℃

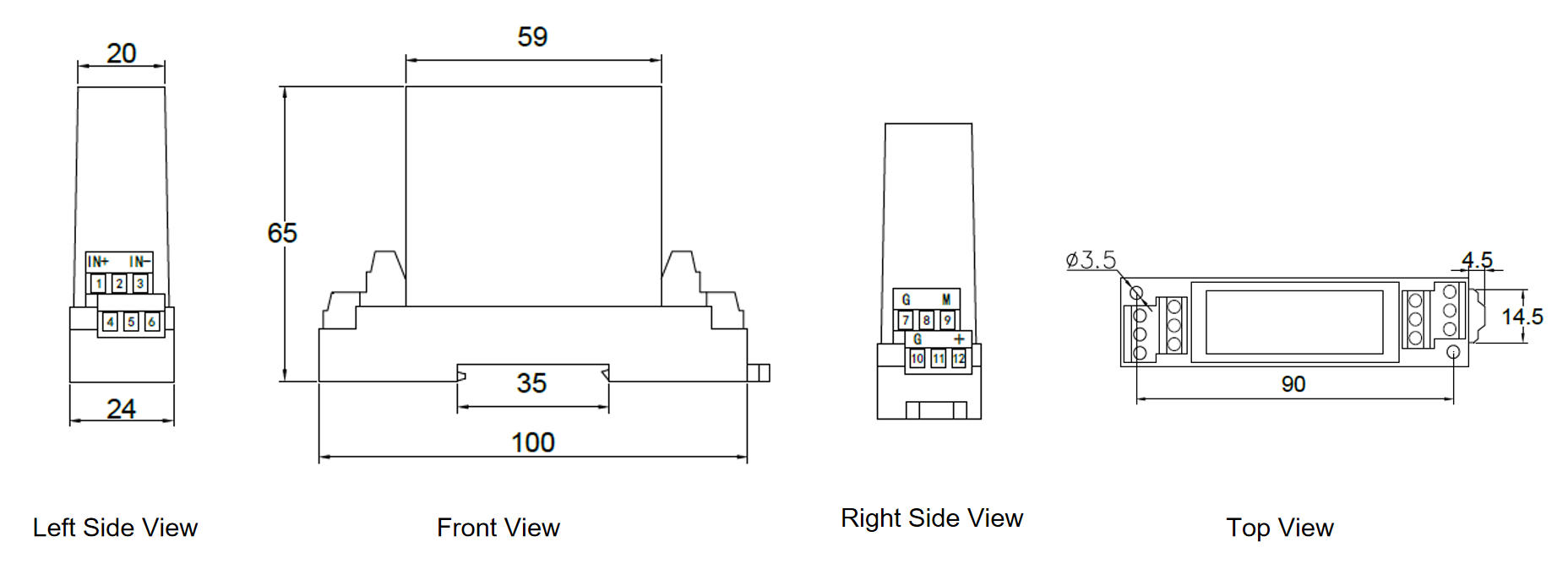

Mechanical Dimension(mm)

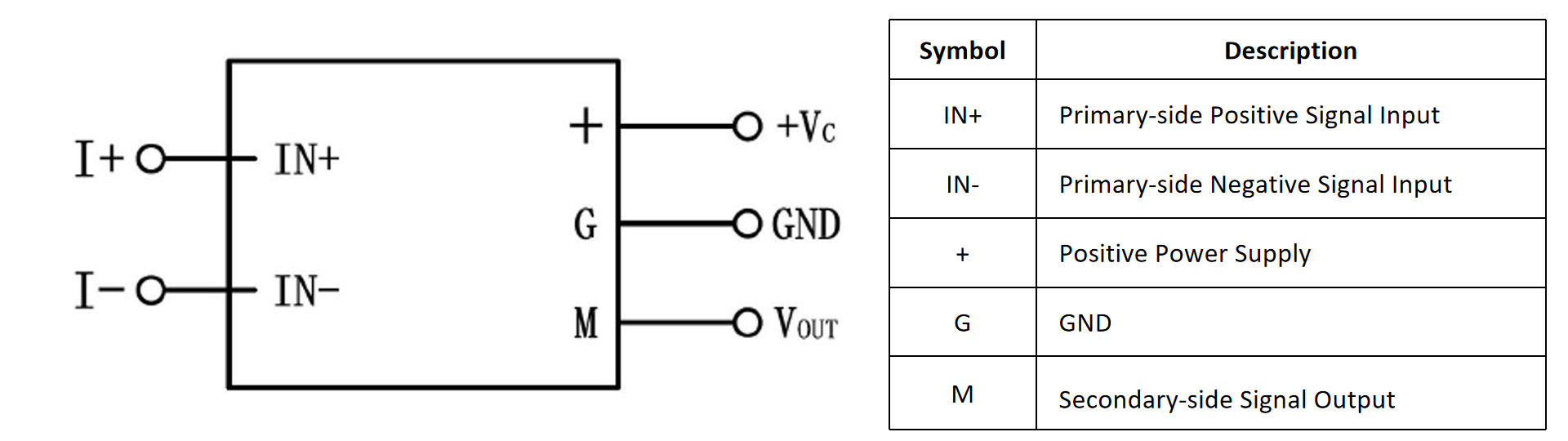

Circuit Connection Diagram
