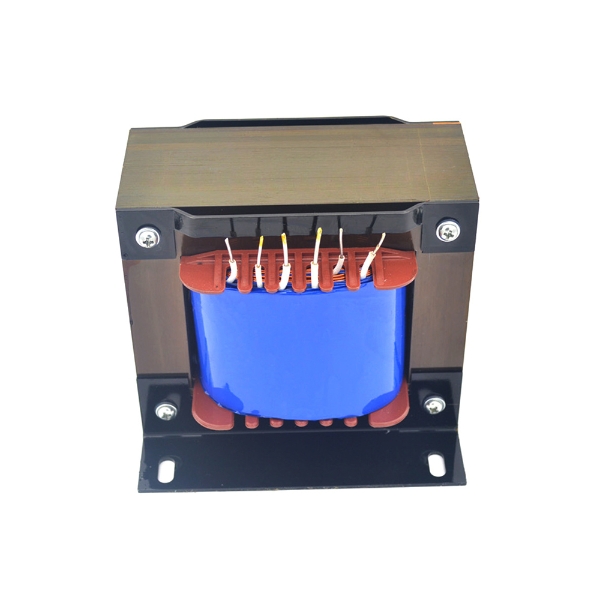

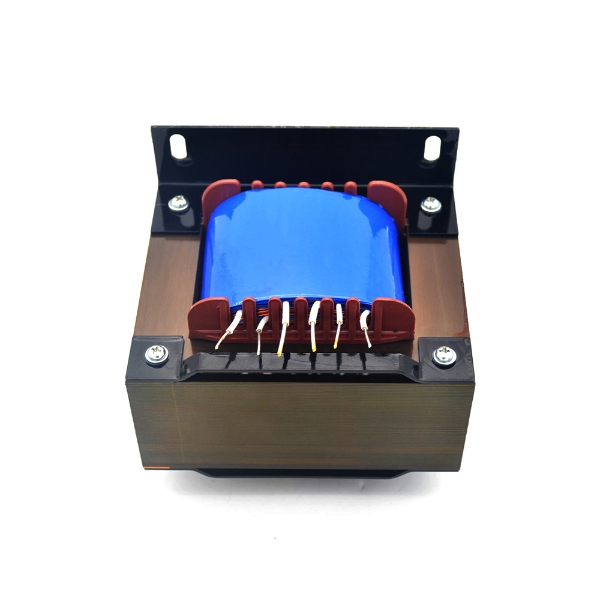

TRTDY-E EI Type Bent Pin Type Transformer Electrical Transformer 25VA-15kVA

TRTDY-E EI Type Bent Pin Type Transformer Electrical Transformer 25VA-15kVA

Product Detail
FAQ
Qualification certificate
Send Inquiry

Product Overview

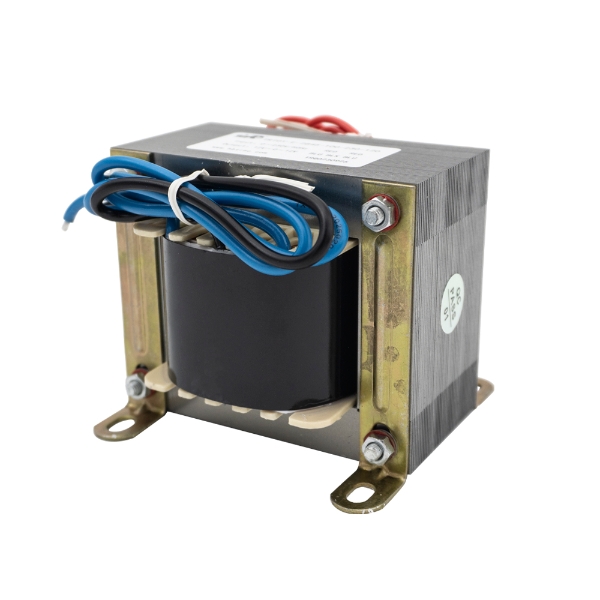

EI type iron power supply transformer, low loss at no load,hig power output,high efficience, low temperature rise,widely used in air-conditioner,acoustics,microwave,oven,amplifier,SPC exchange,UPS power supply,and the power supply meter, equipmentof all kinds machine electronics, medical treatment, chemical industry,post and telecommunications, spinning, popular science.

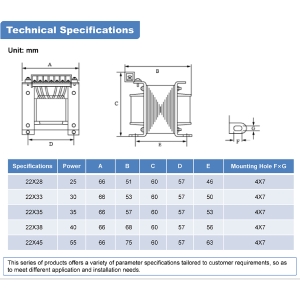

Product Selection Table

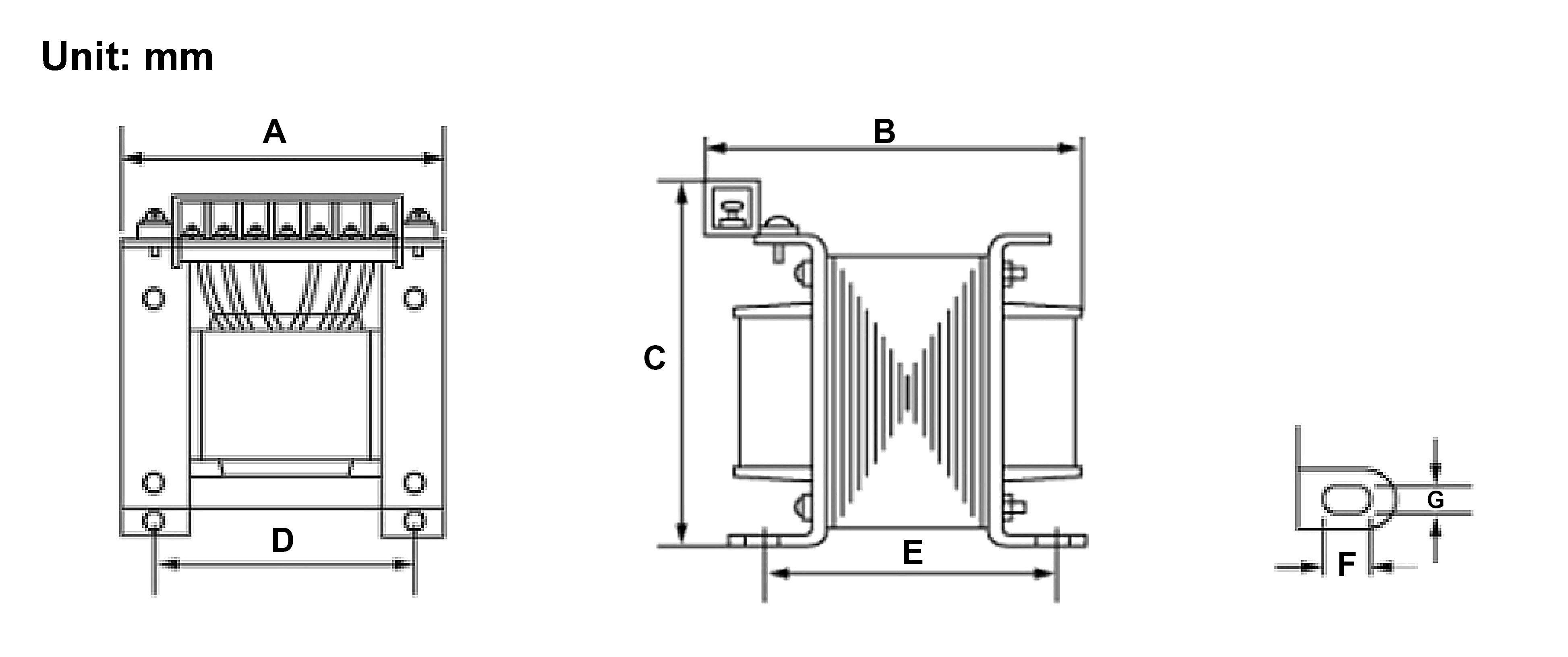

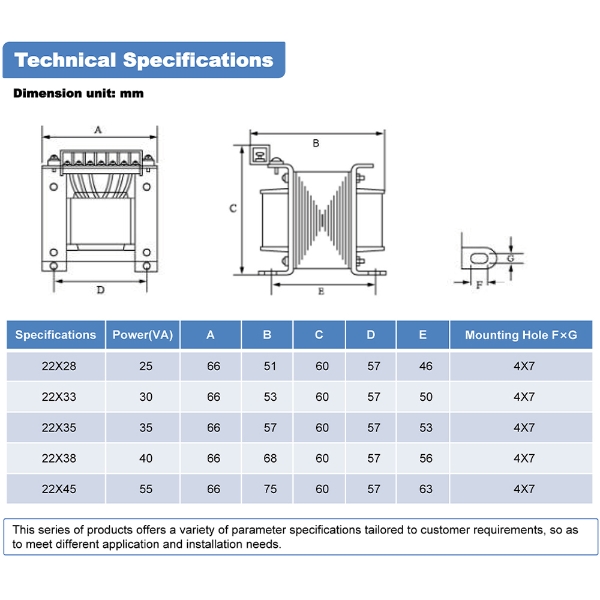

Specifications(mm)	Power(VA)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Mounting Hole F×G(mm)
22*28	25	66	51	60	57	46	4*7
22*33	30	66	53	60	57	50	4*7
22*35	35	66	57	60	57	53	4*7
22*38	40	66	68	60	57	56	4*7
22*45	55	66	75	60	57	63	4*7

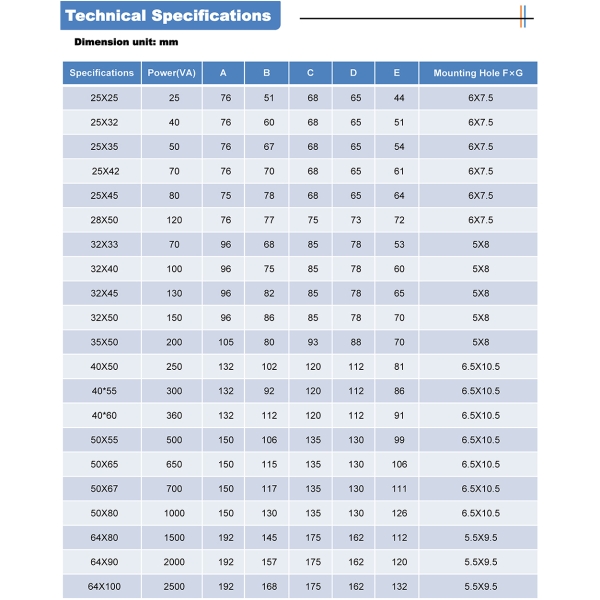

25*25	25	76	51	68	65	44	6*7.5
25*32	40	76	60	68	65	51	6*7.5
25*35	50	76	67	68	65	54	6*7.5
25*42	70	76	70	68	65	61	6*7.5
25*45	80	75	78	68	65	64	6*7.5
28*50	120	76	77	75	73	72	6*7.5
32*33	70	96	68	85	78	53	5*8
32*40	100	96	75	85	78	60	5*8
32*45	130	96	82	85	78	65	5*8
32*50	150	96	86	85	78	70	5*8
35*50	200	105	80	93	88	70	5*8
40*50	250	132	102	120	112	81	6.5*10.5
40*55	300	132	92	120	112	86	6.5*10.5
40*60	360	132	112	120	112	91	6.5*10.5
50*55	500	150	106	135	130	99	6.5*10.5
50*65	650	150	115	135	130	106	6.5*10.5
50*67	700	150	117	135	130	111	6.5*10.5
50*80	1000	150	130	135	130	126	6.5*10.5
64*80	1500	192	145	175	162	112	5.5*9.5
64*90	2000	192	157	175	162	120	5.5*9.5
64*100	2500	192	168	175	162	132	5.5*9.5

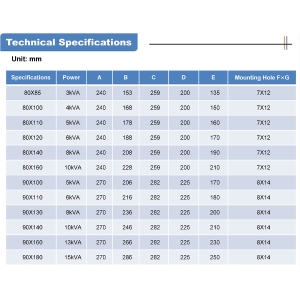

80*85	3000	240	153	259	200	135	7*12
80*100	4000	240	168	259	200	150	7*12
80*110	5000	240	178	259	200	160	7*12
80*120	6000	240	188	259	200	170	7*12
80*140	8000	240	208	259	200	190	7*12
80*160	10000	240	228	259	200	210	7*12
90*100	5000	270	206	282	225	170	8*14
90*110	6000	270	216	282	225	180	8*14
90*130	8000	270	236	282	225	200	8*14
90*140	10000	270	246	282	225	210	8*14
90*160	13000	270	266	282	225	230	8*14
90*180	15000	270	286	282	225	250	8*14

This series of products offers a variety of parameter specifications tailored to customer requirements, so as to meet different application and installation needs.

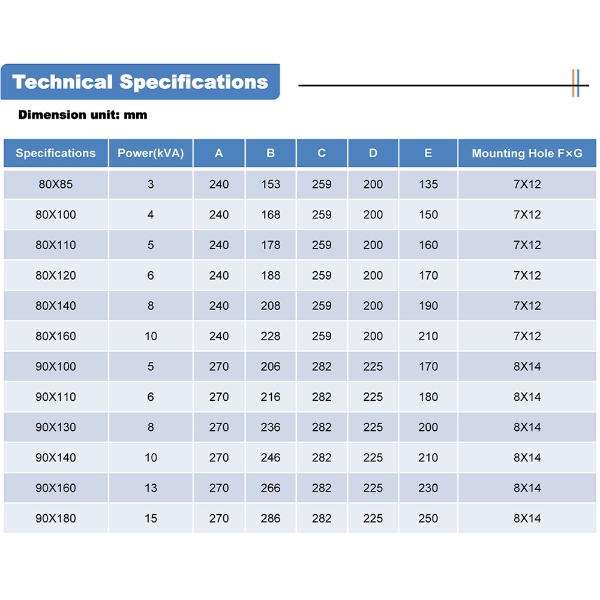

Technical Specifications(mm)
