Product description

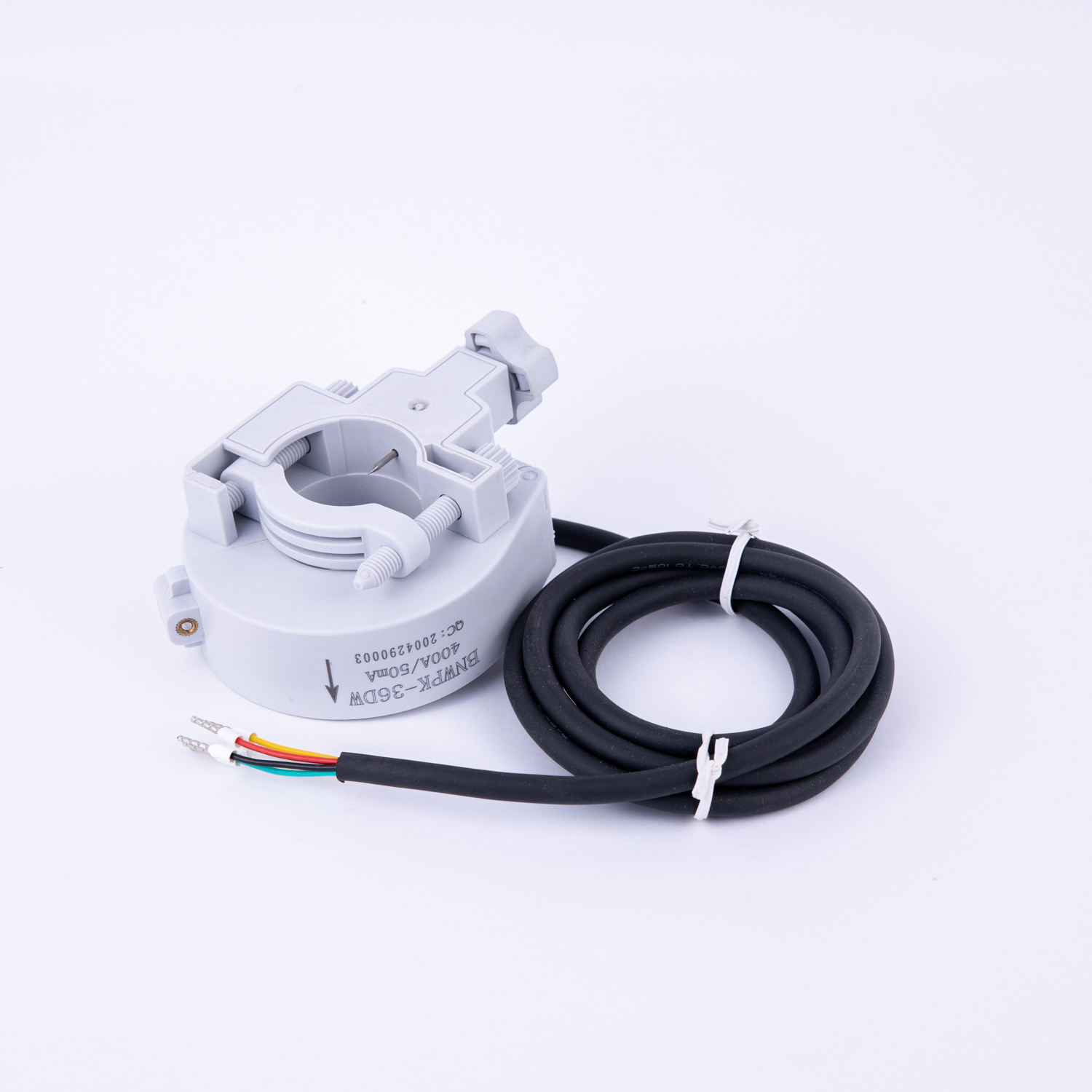

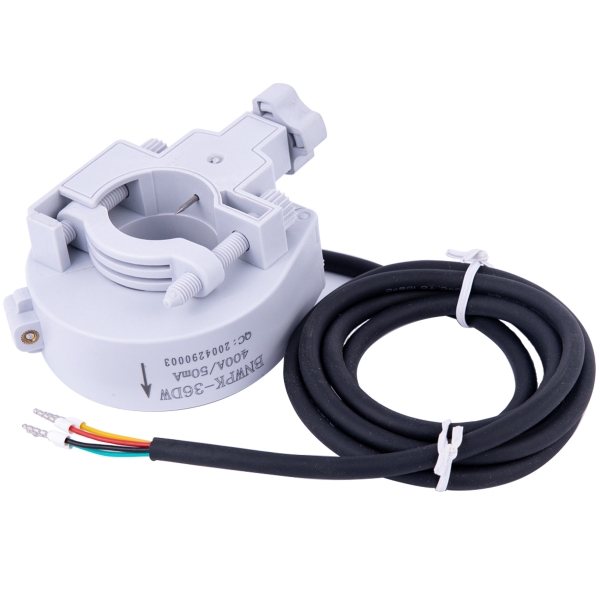

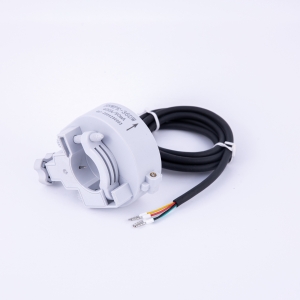

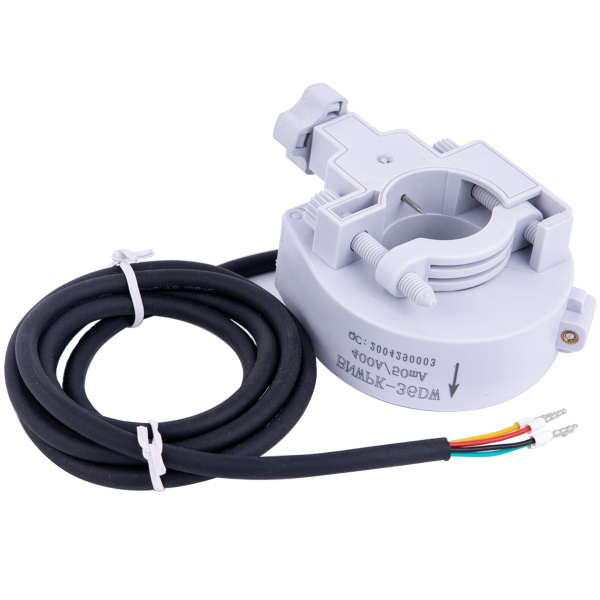

BNW-D series open-close outdoor waterproof puncture taking electricity and temperature measuring current transformer, with the functions of current measurement ,puncture needle voltage taking electricity and cable temperature collection. Intensive integrated design, opening and closing structure ,easy installation. The recommended primary rated current is 50A~600A,and the secondary output is draw out by five-core shielded wire. The output signal is secondary current ,primary voltage and cable temperature ,linearity ,it can realize the functions of multiple sensor and is widely used in multi-function power meters.
Product characteristic

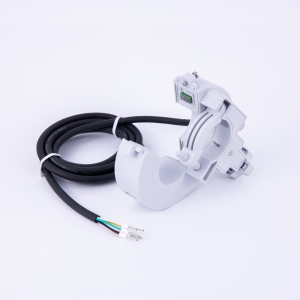

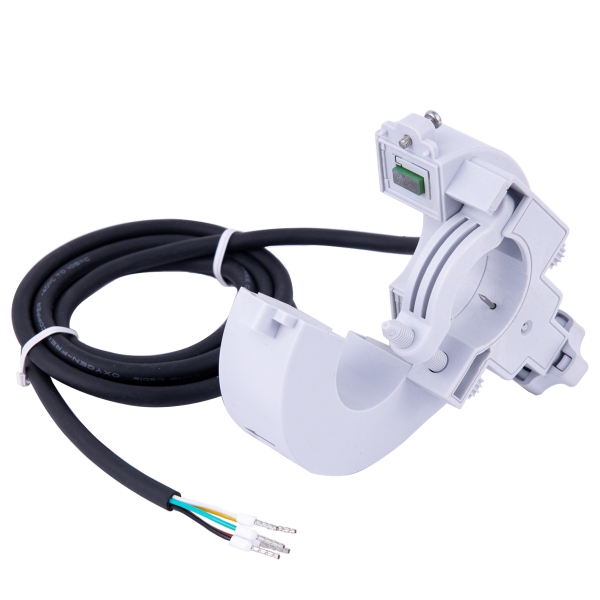

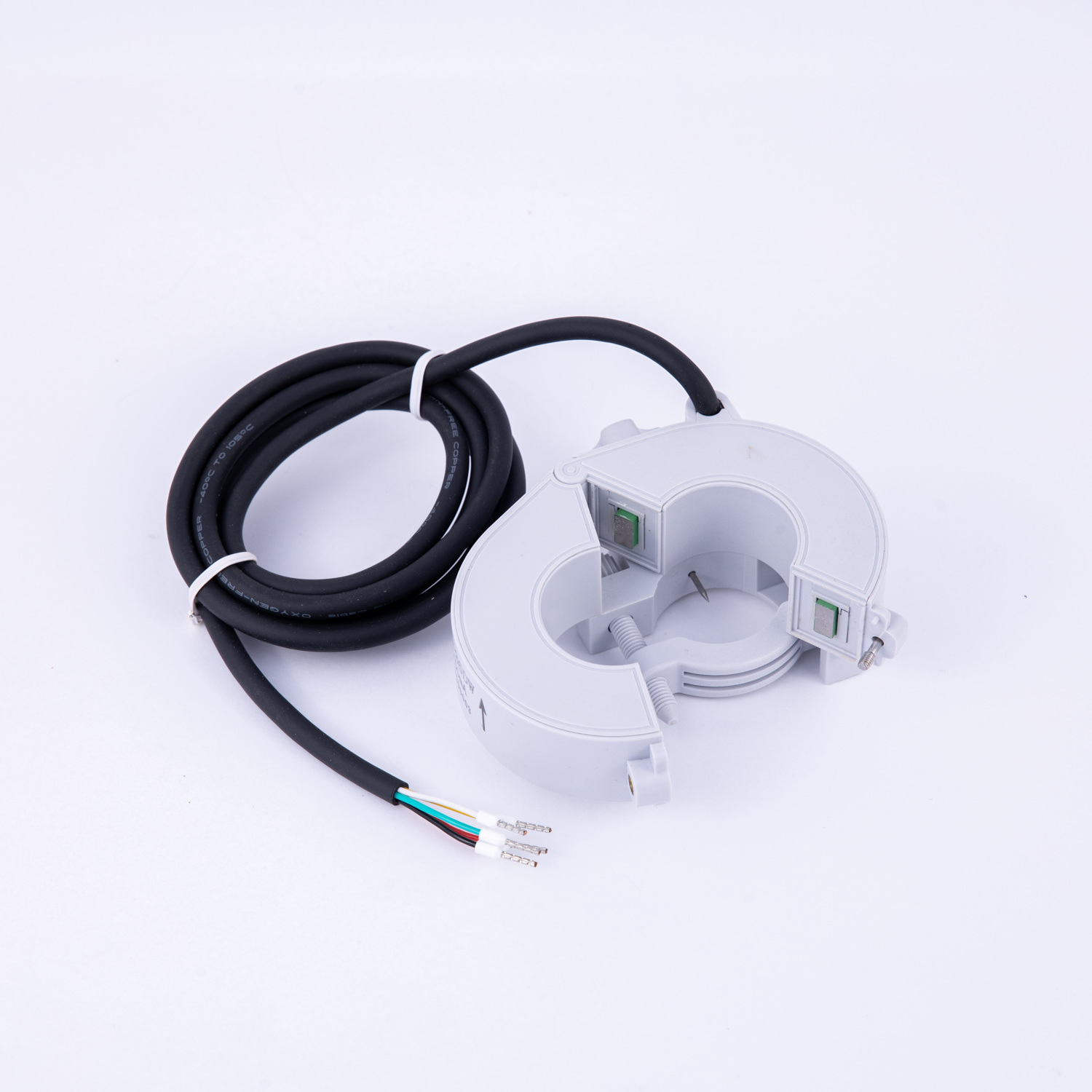

Open and close structure ,easy to install on site and easy to operate. Quick and easy installation or removal without disconnecting the primary cable under test, effective for safe and easy current testing ;

All manual operation parts are insulators, which can be operated live and can be branched at any position of the cable .

The shell adopts ultrasonic fusion welding integrated molding process, and the magnetic core winding structure is cast with epoxy resin and the waterproof level can be IP66.

Adopt high magnetic ,good linearity and high sensitivity.

Application

Electrical fire monitoring system ,fire equipment power monitoring system ,intelligent power consumption system, intelligent low-voltage power grid, small current grounding system, relay protection ,motor protection system, etc. For current measurement, monitoring and protection of lines and equipment.
performance

performance
parameters
Operation temperature -40℃~+70℃ Relative humidity ≤90%
Voltage level 0.4/0.66/0.72KV Linear range 5%~120%
Rated input current 50~600A Rated frequency 50/60Hz
Rated load <20Ω TemperatureNTC 100K
Accuracy class 0.5级 Dielectric strength 1000MΩ/500V/min
Mechanical
structure
parameters
Shell and skeleton PA/PCFlammability rating94-V0 Output method Flexible PVC sheathed wire
Current -output Green line-black line Power output Red line
Temperature measurement output yellow line –white line Current output protection P6KE12CAProtective tube
Core material Silicon Steel / Nanocrystalline /permalloy Opening and closing structure “304”Fastening with inseparable screw
Puncture needle Stainless steel“304” Construction plan Fixing knob to lock the cable

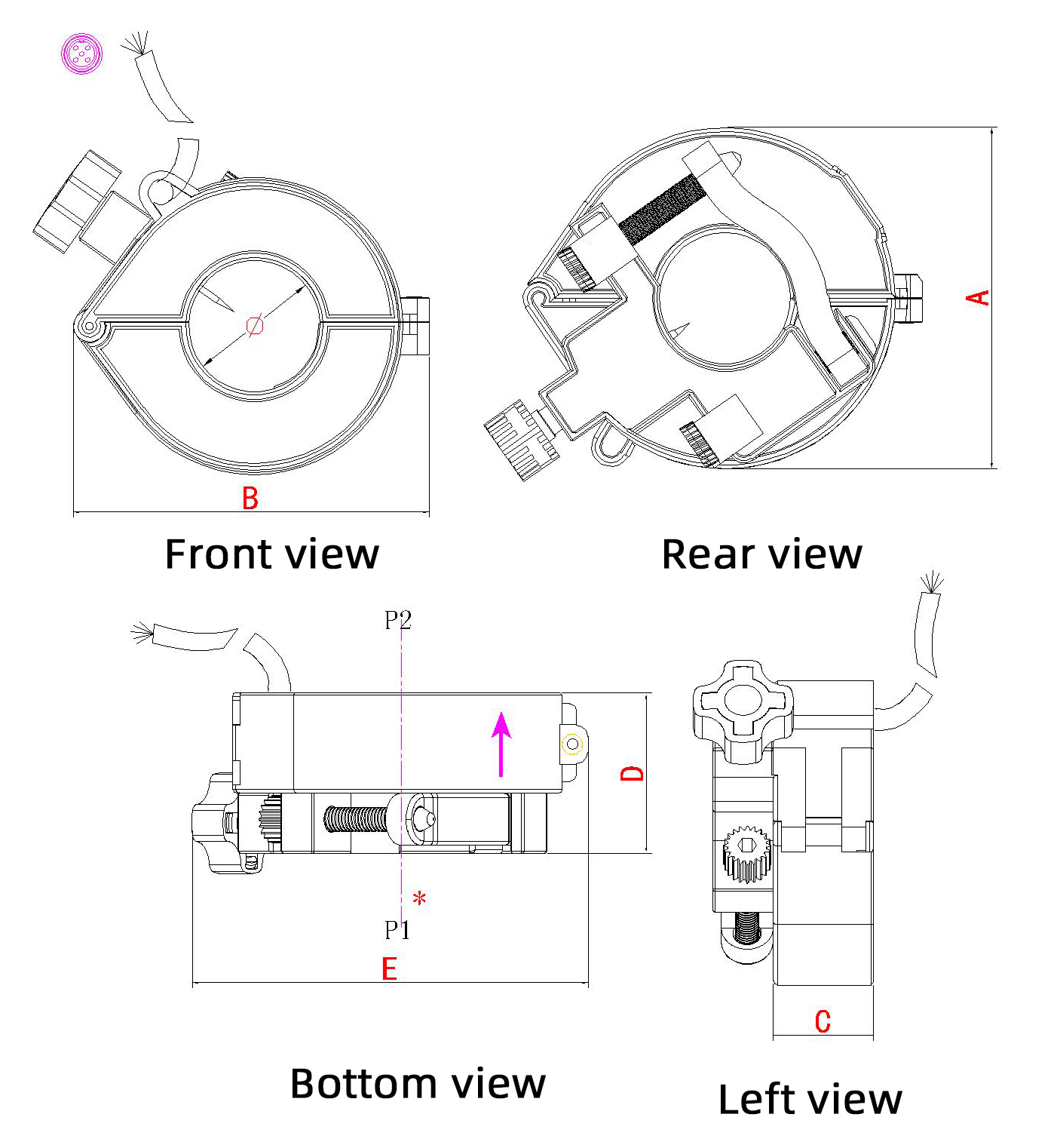

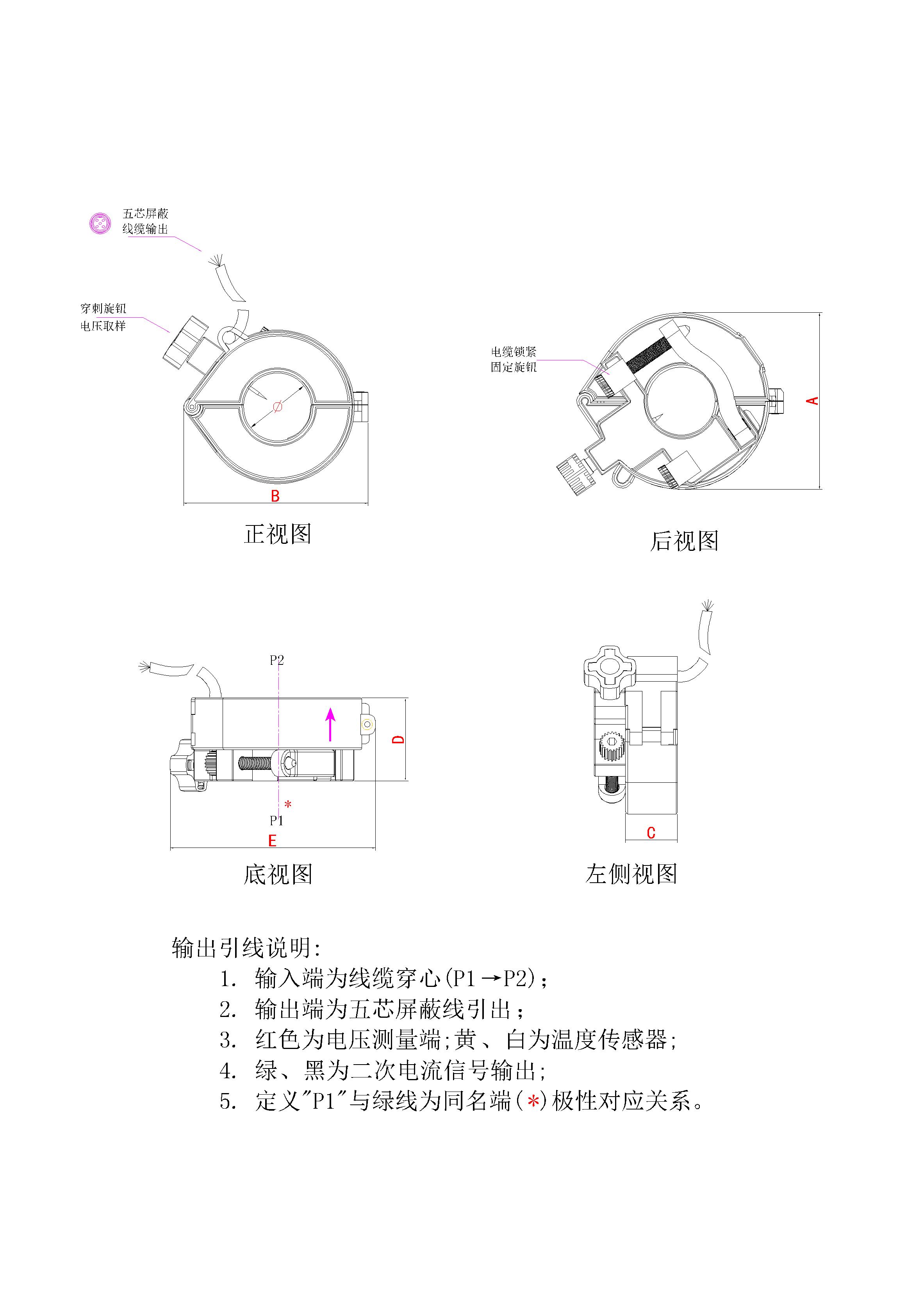

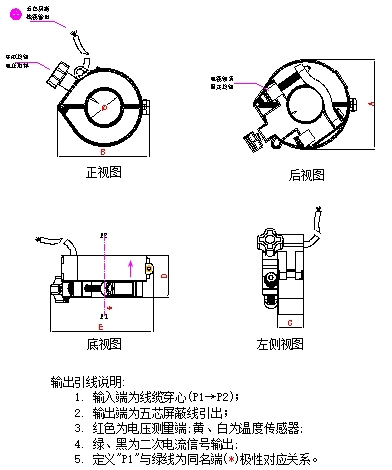

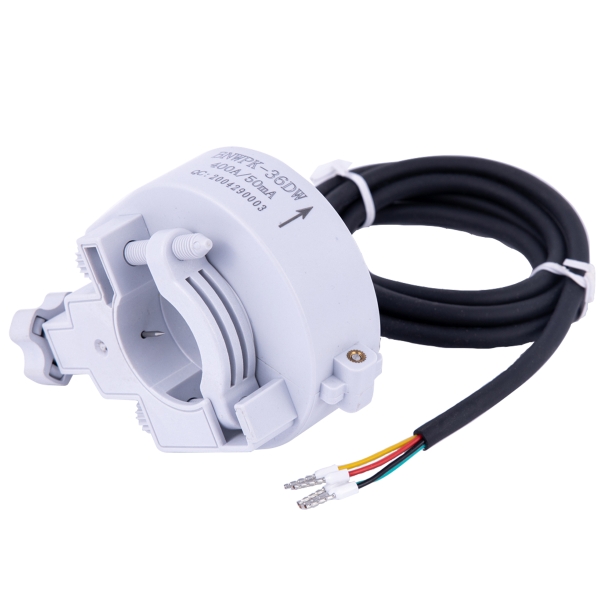

Shape and installation dimensions

Product
model
rated
input
rated
output
accuracy
class
Dimensions(mm)
φ A B C D E
BNWAK-36DW 50~600A 0~100mA
or 0~1V
0.5
1.0
35 71 20 34 79 100
BNWSK-36DW 35 71 20 34 79 100
BNWPK-36DW 35 71 20 34 79 100

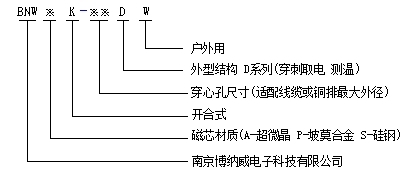

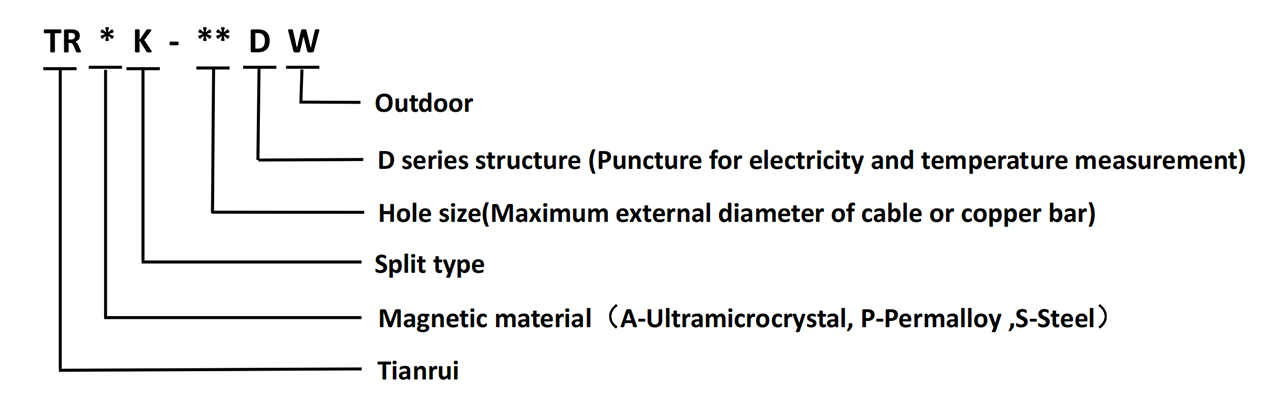

Product Model Naming rules

Installation precautions


When the transformer is powered on ,you must wear insulating gloves and your hands must not directly touch the red core of the shielded wire;

Before the silicon steel core is closed ,ensure that the end face of the incision is clean ,free of stains and impurities; It must be treated with anti-rust agent;

Use a torgue wrench (electric /pneumatic ) when tightening the screws and set the torque to a reasonable range .

We are a manufacturer has export qualification and experience.

instrument type at least 100pcs ;others by 1 -5 pcs;

T/T;L/C;

Instrument transformer 20 thousand pcs ;current transformer 12 thousand pcs ;voltage transformer 11 thousand pcs.

We have a R&D team for new product design. Successful cases and in continued cooperation. Discussion among both sides ➡general specification ensure➡structure drawing ➡original sample ➡electrical

Standard Carton Export fumigatin-free tray Tray Film Edge fixing strip Vacuum packaging acceptable Customize size acceptable
1
2
3
