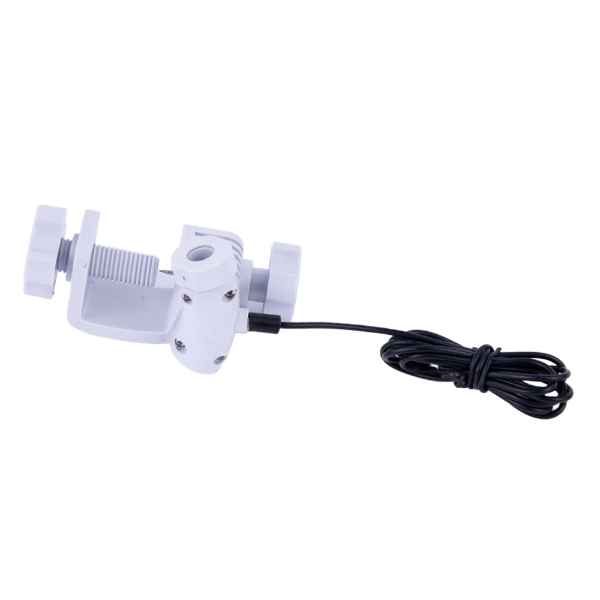

Split-core Type Punture&Power Harverster Clamp
Split-core Type Punture&Power Harverster Clamp Split-core Type Punture&Power Harverster Clamp

Split-core Type Punture&Power Harverster Clamp

  • Product Detail
  • FAQ
  • Qualification certificate
  • Send Inquiry
PRODUCT OVERVIEW

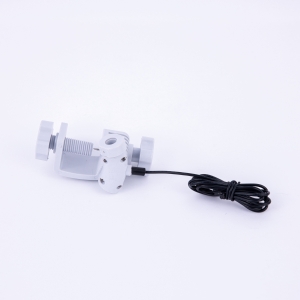

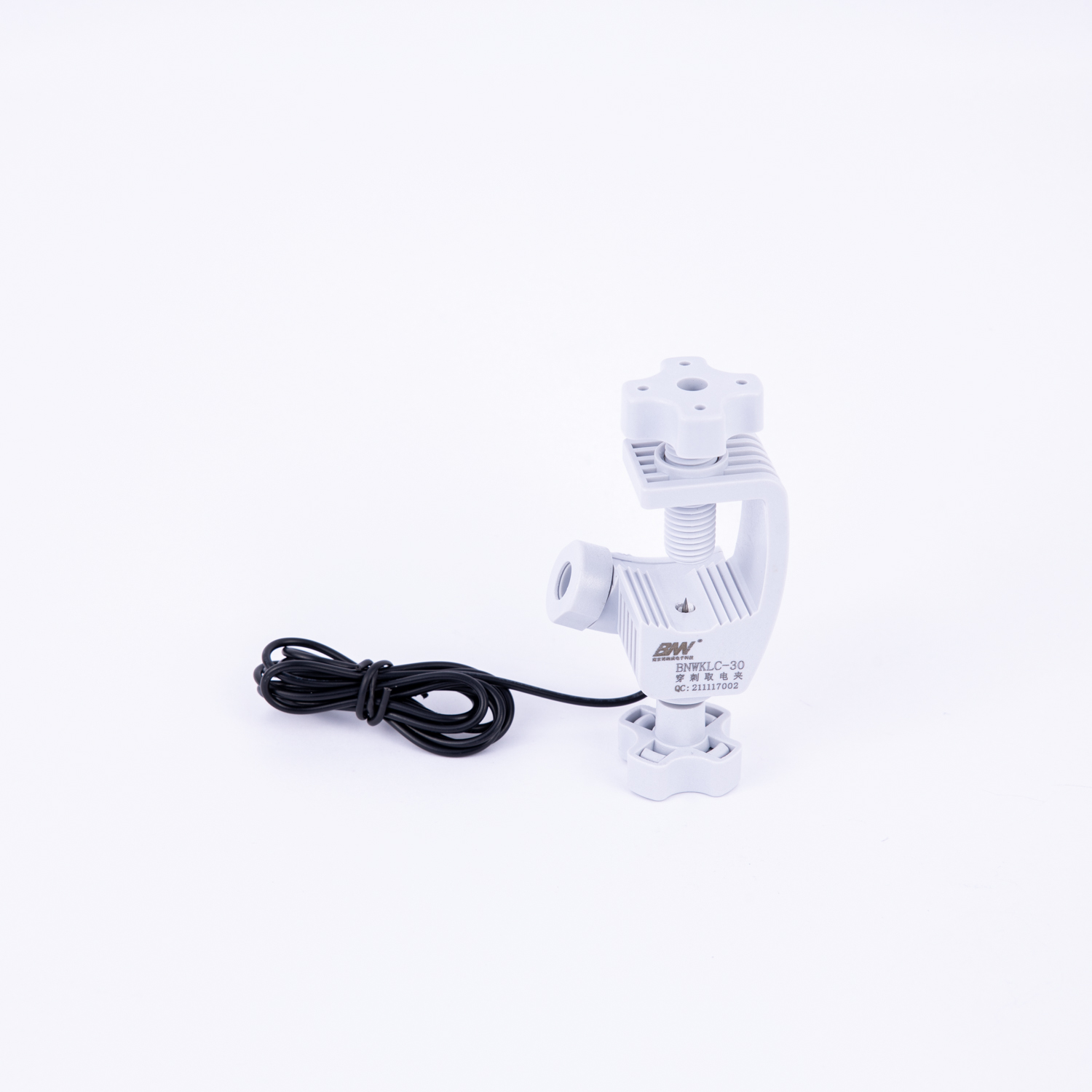

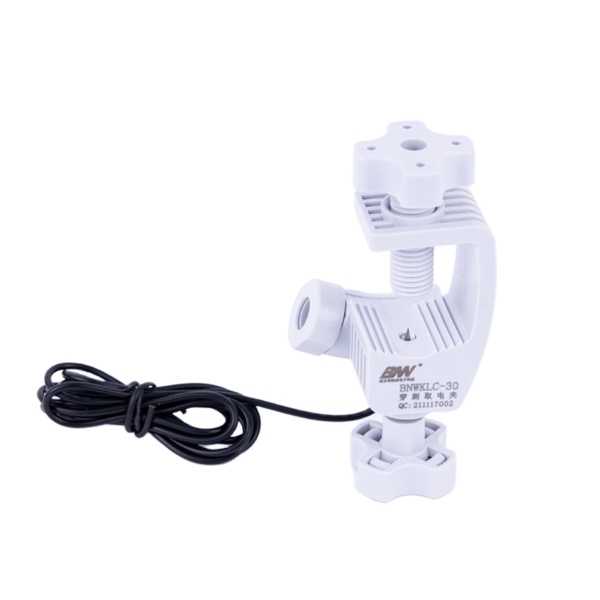

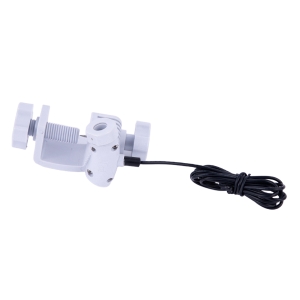

TRKLC-30J split-core puncture clip is mainly used for low-voltage 0.66/0.72KV transmission cable, which is convenient for installation and removal under live condition; live puncture cable leads the phase line voltage signal to the monitoring meter through the lead wire. Can be directly fixed on cables with a diameter of 5mm to 30mm
Product Features

Split-core structure, easy to install on site and easy to operate;

Quick and easy installation or removal without disconnecting the primary cable under test;

PERFORMANCE

Working

Environment

Ambient Temperature -40℃~+75℃ Storage Temperature -45℃~85℃
Relative Humidity ≤90% Barometric Conditions 66kpa~110kpa

Electric

Parameters

Equipment maximum voltage 0.66/0.72KV Puncture Depth <10mm
Insulation Resistance 1000MΩ@500VDC,1min Power Frequency Withstand Voltage 6KV/min,1mA

Mechanical

Parameters

Primary Through Hole 1 Turn Measured Cable Diameter <Φ30mm
Pinout AGG-10KV-DC Silicone Rubber Wire Lead Out Length 1000mm
Shell PC Flame Retardant Grade 94-V0 Weight About 148g

Structure

Requirements

The shell is made of flame-retardant and environmentally friendly materials, with good sealing performance and dust-proof and moisture-proof functions;
Protection class meets IP66

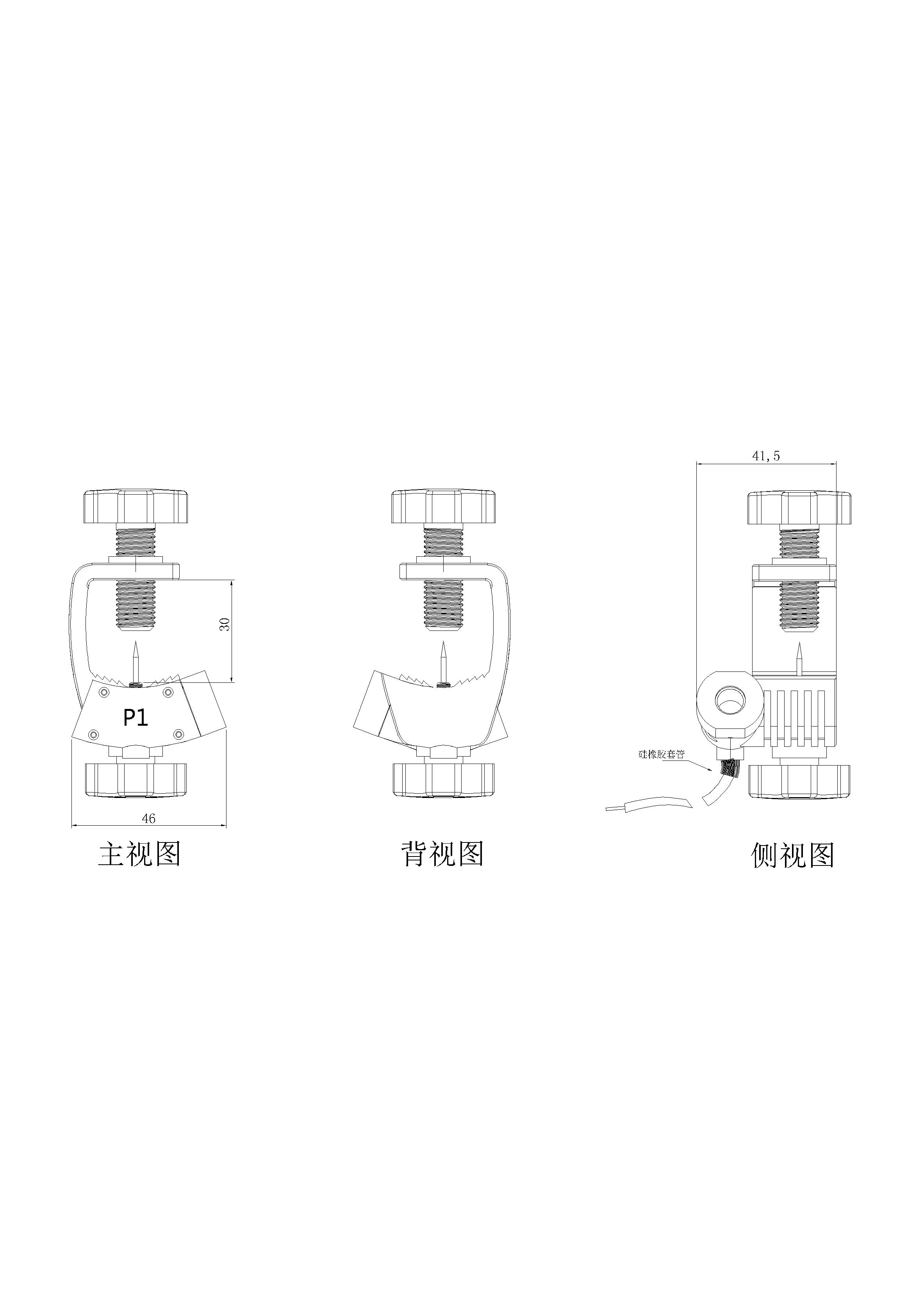

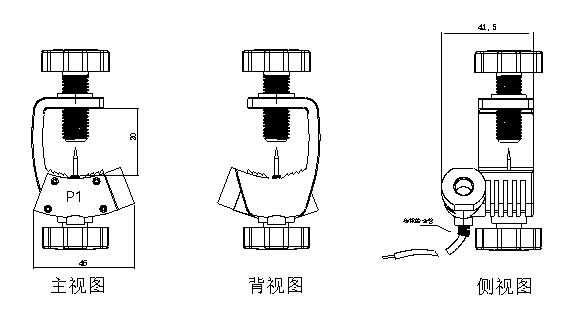

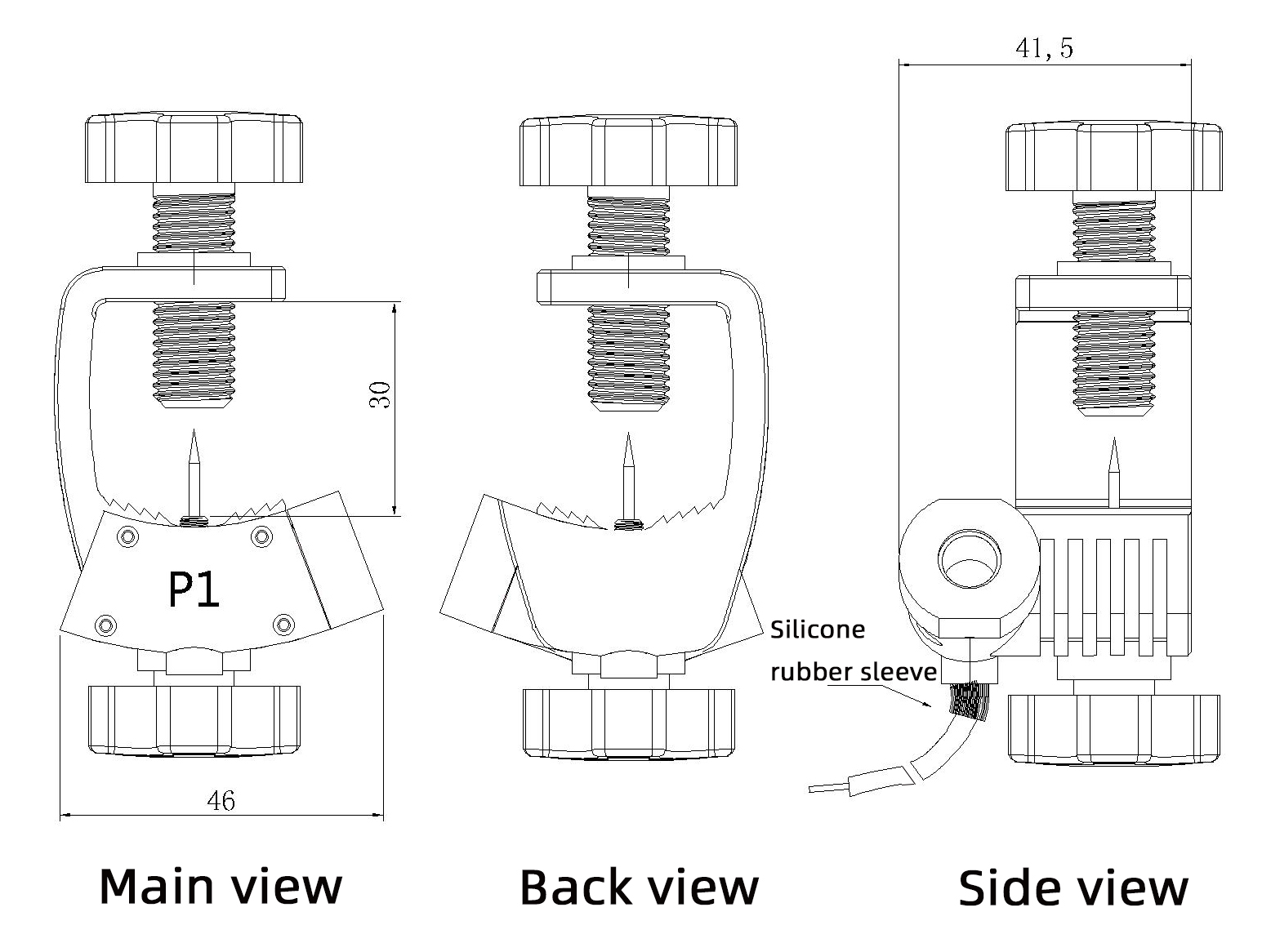

Shape and Installation Dimensions
Installation Precautions

The transformer must be operated with power on, and insulating gloves must be worn, and the hands must not directly touch the lead wire core;

Do not use if the output leads are damaged. Our company is not responsible for any safety problems caused by improper operation;

We are a manufacturer has export qualification and experience.

instrument type at least 100pcs ;others by 1 -5 pcs;

T/T;L/C;

Instrument transformer 20 thousand pcs ;current transformer 12 thousand pcs ;voltage transformer 11 thousand pcs.

We have a R&D team for new product design. Successful cases and in continued cooperation. Discussion among both sides ➡general specification ensure➡structure drawing ➡original sample ➡electrical

Standard Carton Export fumigatin-free tray Tray Film Edge fixing strip Vacuum packaging acceptable Customize size acceptable
