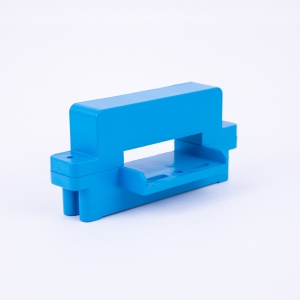

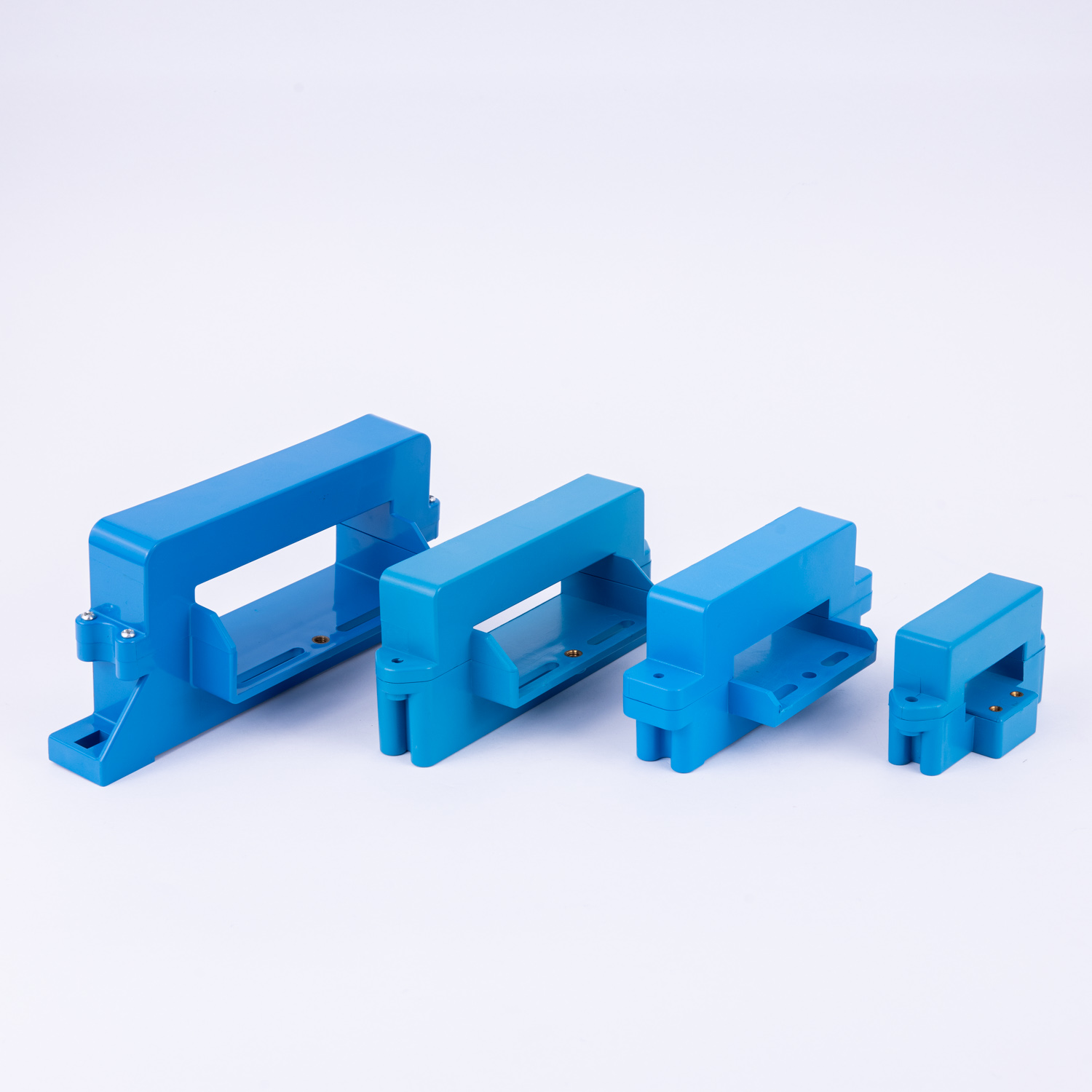

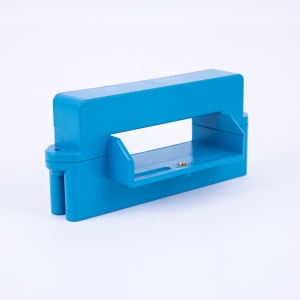

PRODUCT OVERVIEW
The sensor works on the principle of direct measurement Hall detection. The magnetic flux generated by the primary current is gathered in the magnetic circuit, and the Hall voltage signal is detected by the Hall device. After amplification by the amplifier, the voltage signal accurately reflects the primary current.
Product Features

Measures AC, DC and pulsed signals

Strong resistance to external interference, high common mode rejection ratio

Low temperature drift, low power consumption, wide frequency band

Perforated structure, no insertion loss

K/D structure, easy installation

Scope of Application

AC frequency conversion speed regulation

Servo motor traction

Uninterruptible power supply(UPS)

Welding machine, battery power supply

Technical Parameter
Specification 300A/4V 500A/4V 1000A/4V Unit
I PN Primary Rated Input Current 300 500 1000 A
IP Primary Current Measurement Range 0~600 0~1000 0~1500 A
VSN Secondary rated output voltage 4 V
VC The Power Supply Voltage ±12~15(±5%) V
IC Current Consumption <20 mA
Vd Insulation Voltage Between primary and secondary circuits:5kV/50Hz/1min
εL Linearity <1 %FS
X Precision TA =25℃:≤±1 %
V0 Offset Voltage TA =25℃:≤±20 mV
VOM Magnetic Offset Voltage Ip=0 after 3*I PN:≤±20 mV
VOT Offset voltage temperature drift Ip =0 TA =-40~+80℃:≤±1 mV/℃
Tr Response time ≤20 μS
f Bandwidth(-3dB) DC~20 kHZ
TA Working Temperature -40~+80
TS Storage Temperature -45~+85
R L Load Resistance TA =25℃:≥10

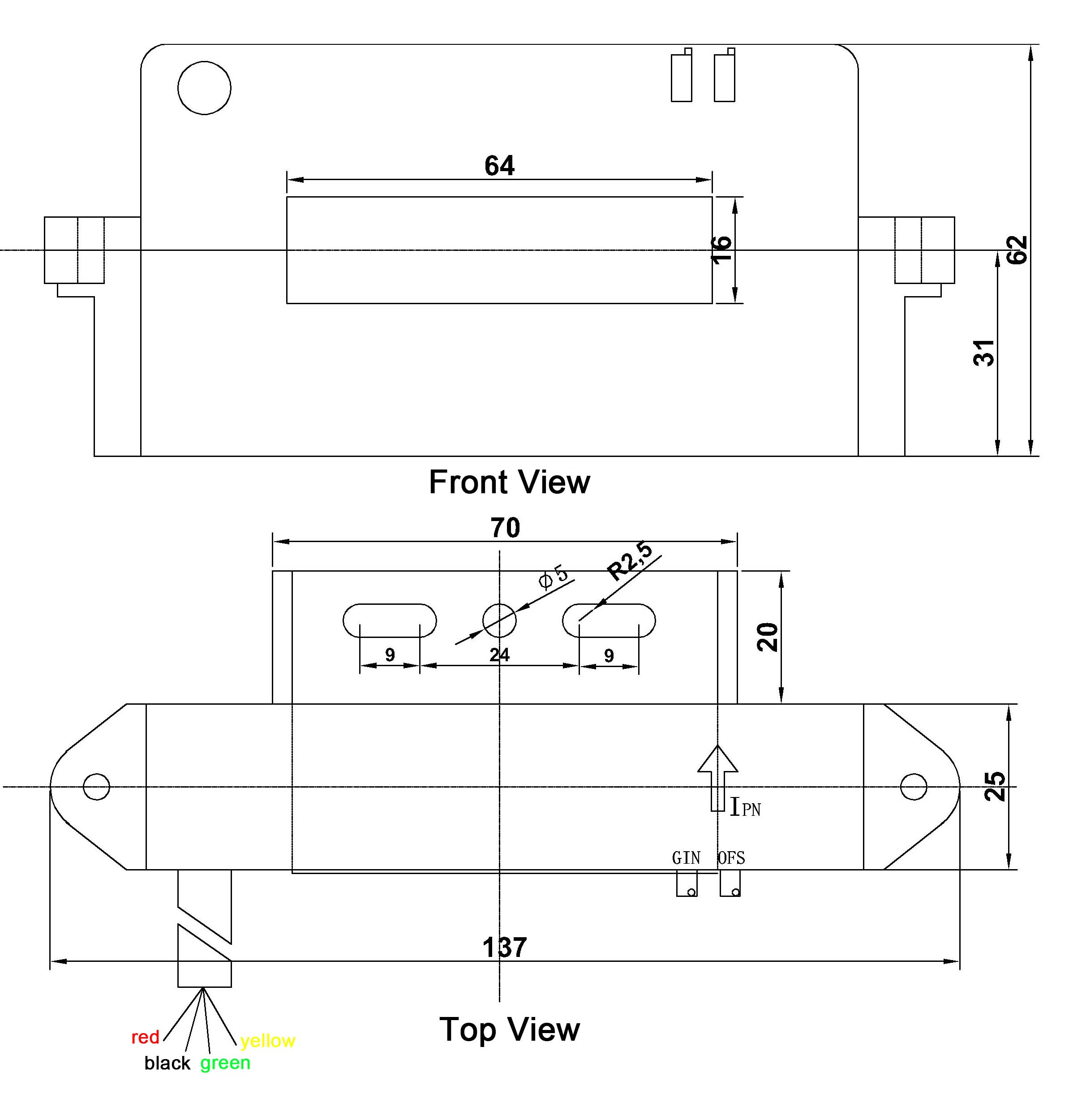

Shape and Installation Dimensions

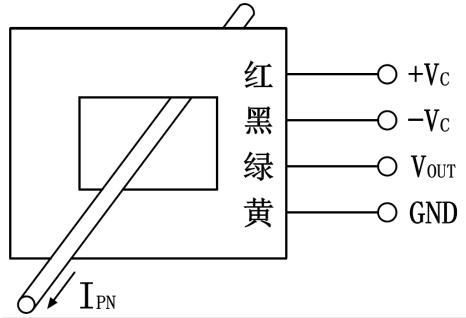

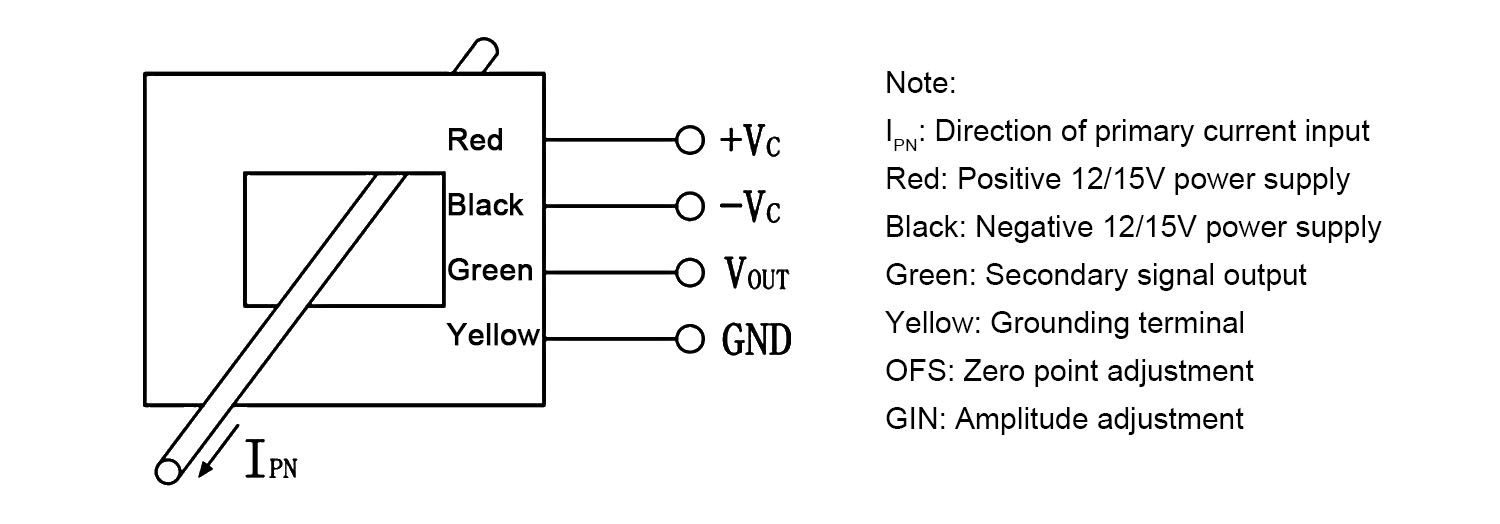

Circuit link diagram

Note:

IpN:Primary current input direction
Red :Positive 12V/15V power supply
Black :Negative 12/15V power supply
Green :Secondary signal output
Yellow :Power ground
OFS:Zero adjustment
GIN:Amplitude adjustment
Installation Precautions

The sensor should be wired correctly, otherwise it may damage the internal components of the sensor

Dynamic performance (DI/DT and response time) is best when the input current row is fully filled with the primary perforation
