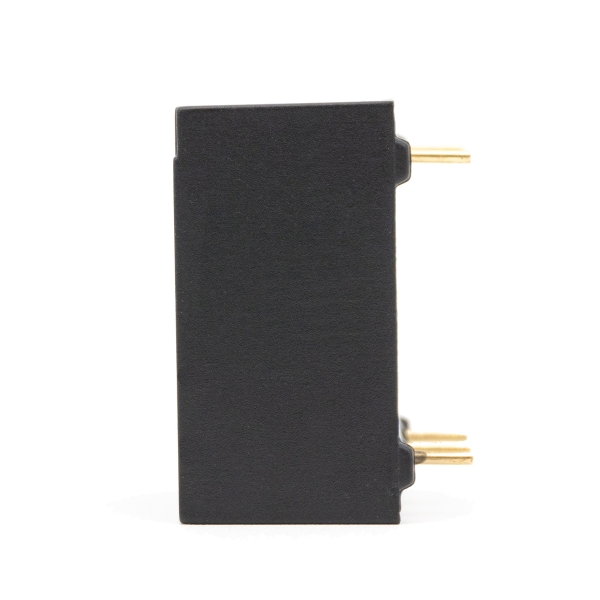

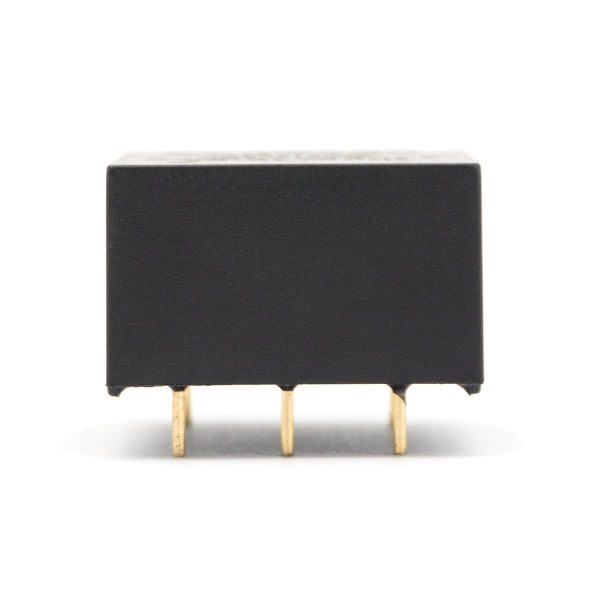

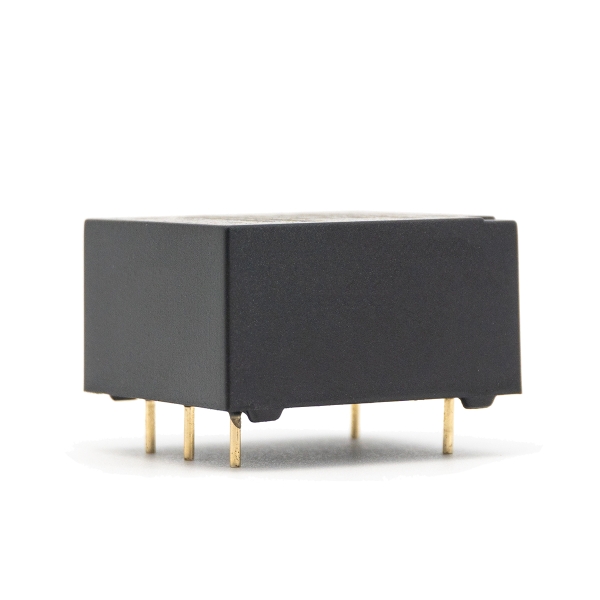

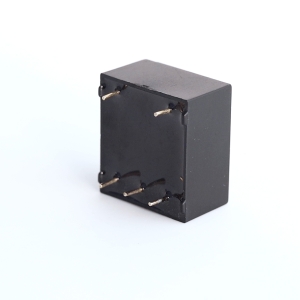

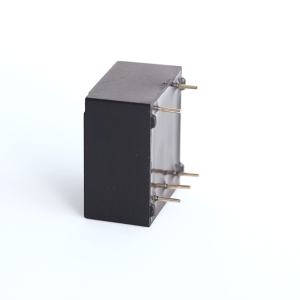

201-LKH Closed-loop (magnetic balance) current sensor
201-LKH Closed-loop (magnetic balance) current sensor 201-LKH Closed-loop (magnetic balance) current sensor 201-LKH Closed-loop (magnetic balance) current sensor 201-LKH Closed-loop (magnetic balance) current sensor

201-LKH Closed-loop (magnetic balance) current sensor

  • Product Detail
  • FAQ
  • Qualification certificate
  • Send Inquiry
PRODUCT OVERWIEW
The sensor works on the principle of magnetically balanced Hall voltage detection. The magnetic flux generated by the primary current is in balance with the secondary voltage generated by the Hall voltage amplification, and the magnetic flux generated by the secondary coil is balanced, and the secondary voltage can accurately reflect the primary current.
Product Features

Measures AC, DC and pulsed signals

Excellent accuracy, good linearity

Strong resistance to external interference, high common mode rejection ratio

Low temperature drift, low power consumption, wide frequency band

Complete isolation between primary and secondary

Scope of Application

AC frequency conversion speed regulation

Servo motor traction

Uninterruptible power supply(UPS)

Welding machine, battery power supply

Technical Parameter
Specification 0.5A/0.625V 1A/0.625V 6A/0.625V Unit
IPN Primary Rated Input Current 0.5 1 6 A
IP Primary Current Measurement Range 0~1 0~2 0~12 A
VSN Secondary rated output voltage 2.5±0.625 V
VC The Power Supply Voltage +5(±5%) V
IC Current Consumption <10+Is mA
Vd Insulation Voltage Between primary and secondary circuits:2.5kV/50Hz/1min
εL Linearity <0.1 %FS
X Precision TA=25℃:≤±0.5 %
V0 Offset Voltage TA=25℃:≤±10 mV
VOM Magnetic Offset Voltage IP=0 after 3*IPN:≤±5 mV
VOT Offset voltage temperature drift IP=0 TA=-40~+80℃:≤±0.1 mV/℃
Tr Response time ≤40 μS
f Bandwidth(-3dB) DC~100 kHz
TA Working Temperature -40~+80
TS Storage Temperature -45~+85

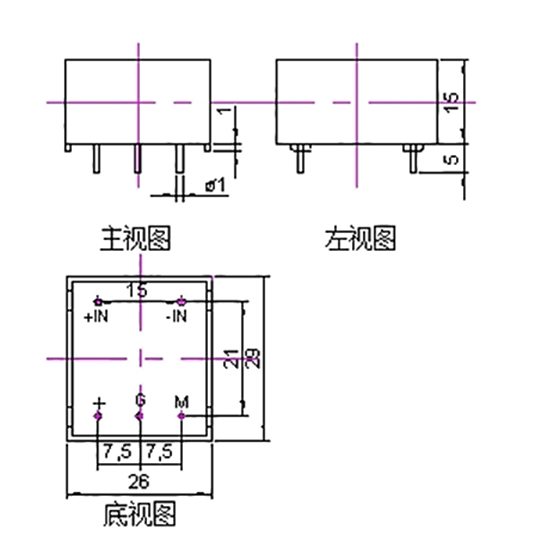

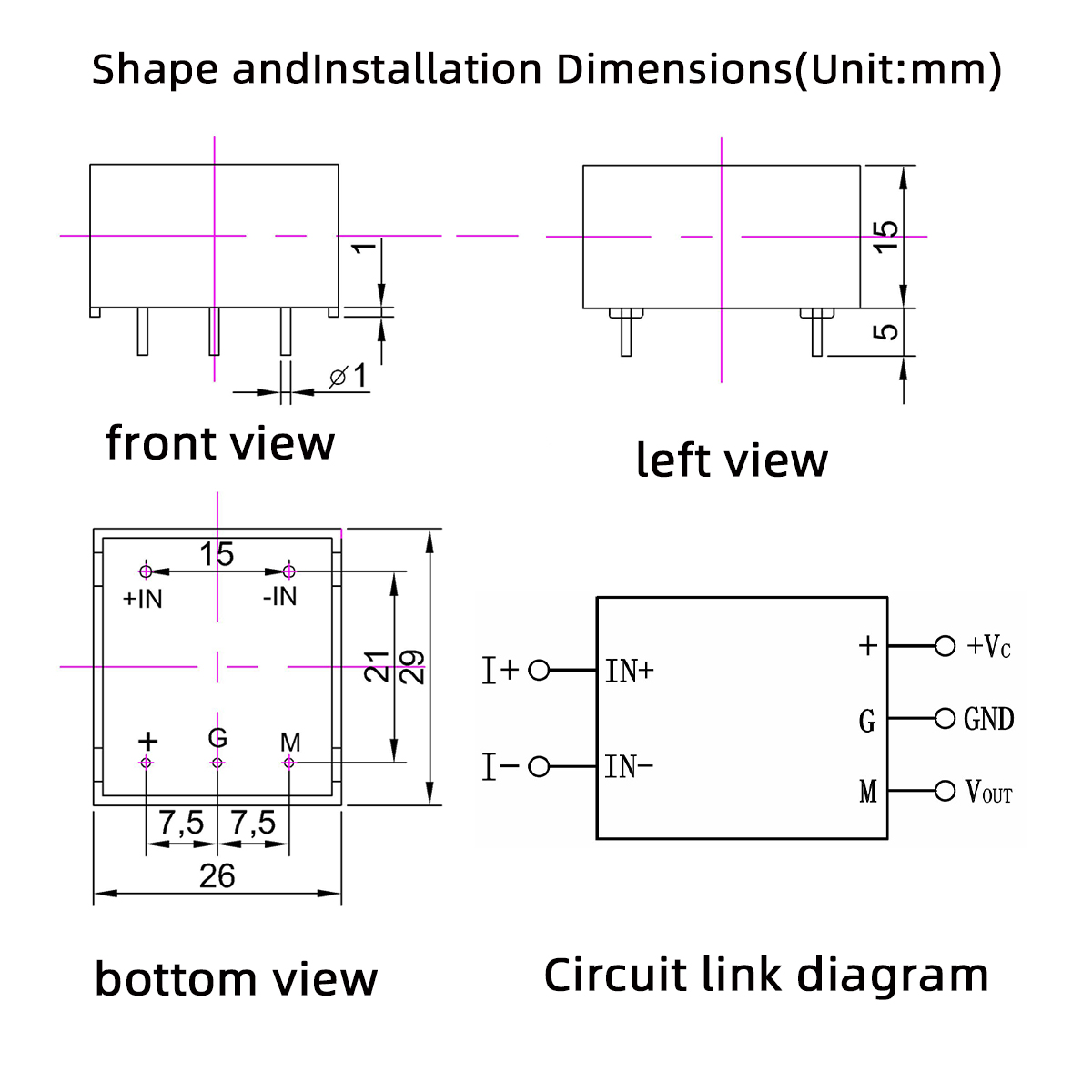

Shape and Installation Dimensions

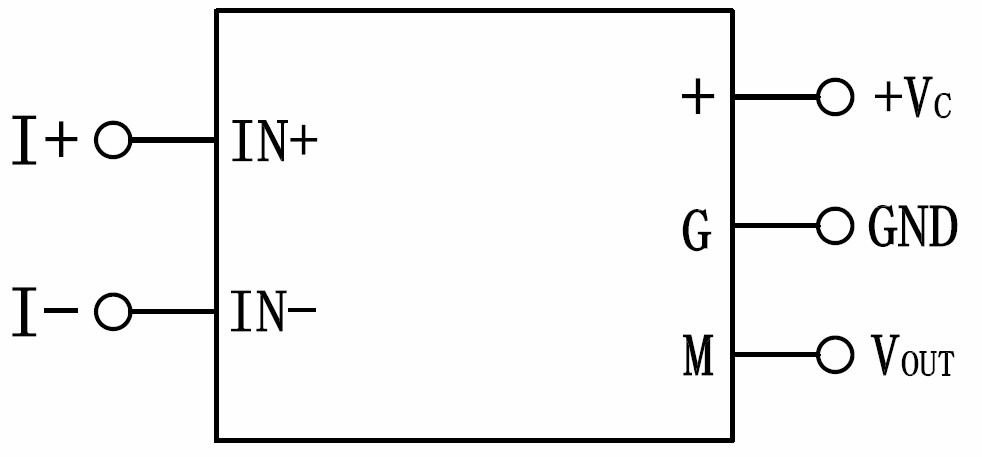

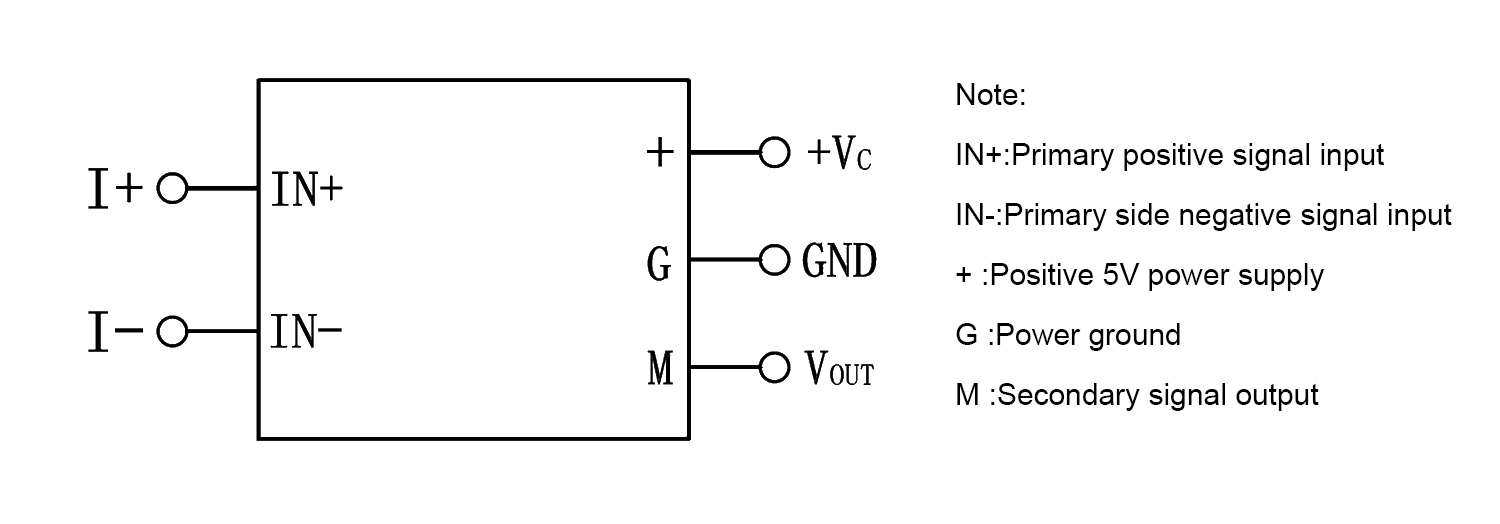

Circuit link diagram

Note:

IN+:Primary positive signal input
IN-:Primary side negative signal input
+ :Positive 5V power supply
G :Power ground
M :Secondary signal output
Installation Precautions

The sensor should be wired correctly, otherwise it may damage the internal components of the sensor

When the sensor is soldered to the circuit board, it needs to be soldered with a low-temperature soldering iron, and the time should not be too long, and secondly, the pins should not be squeezed by a large amount, otherwise the internal connection may be opened.
