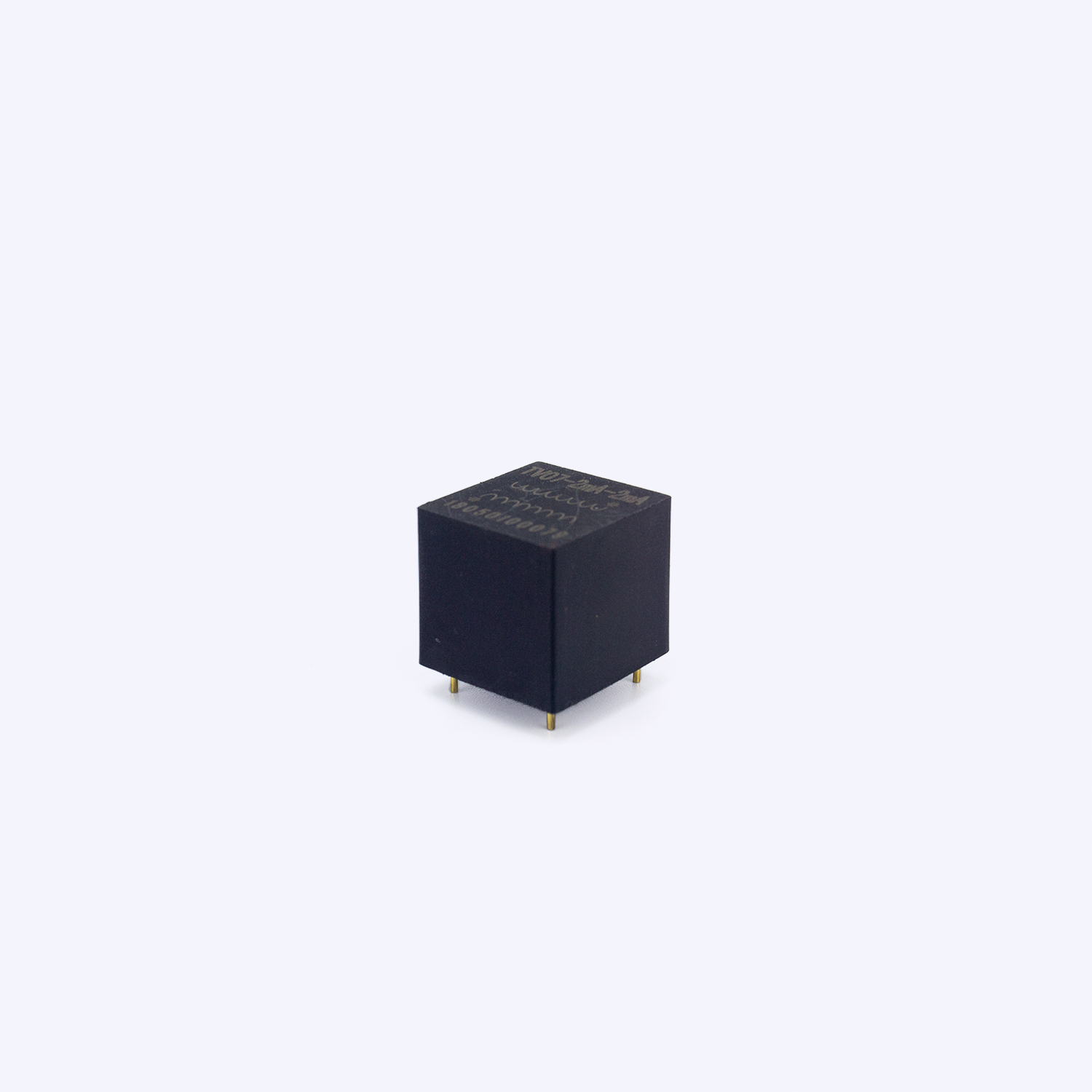

Product description
This product is used for collection and isolation of voltage signals of relay protection equipment, Instruments and meters below AC 1000V .This product is a current-type voltage transformer. The primary is connected with a resistor in the circuit to convert the voltage into current. After the transformer is used for current conversion ,the secondary output current signal is converted into the required voltage through the sampling resistor.
Main characteristics

Good linearity and excellent consistency

Small size ,PCB installation ,suitable for integrated design ;

Low price ,conductive to cost control

A variety of form factors are available

Application
For voltage ,power and energy monitoring required by power auyomation devices;
Electrical
performance
parameters
parameters -25℃~+55℃/-40℃~~+85℃optional Relative humidity ≤90%hPa
Internal insulation Epoxy resin Insulation resistance >500 M Ohms/500Vdc
Medium strength 3000Vac/min Withstand impulse voltage 5000V(1.2/50μsStandard Lightning Wave)
Operation frequency 45~10KHz Accuracy class According to (IEC 61869-2)class 0.1,0.2and
(JBT/10667-2016)0.1,0.2 class
Environmental friendly According to the requirement of RoHS;

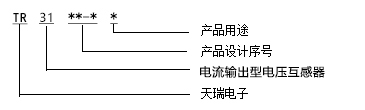

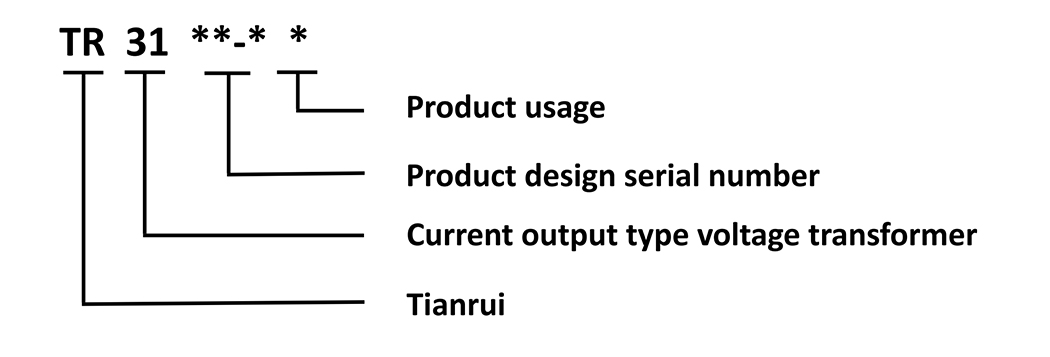

Model interpretation
Typical value of products

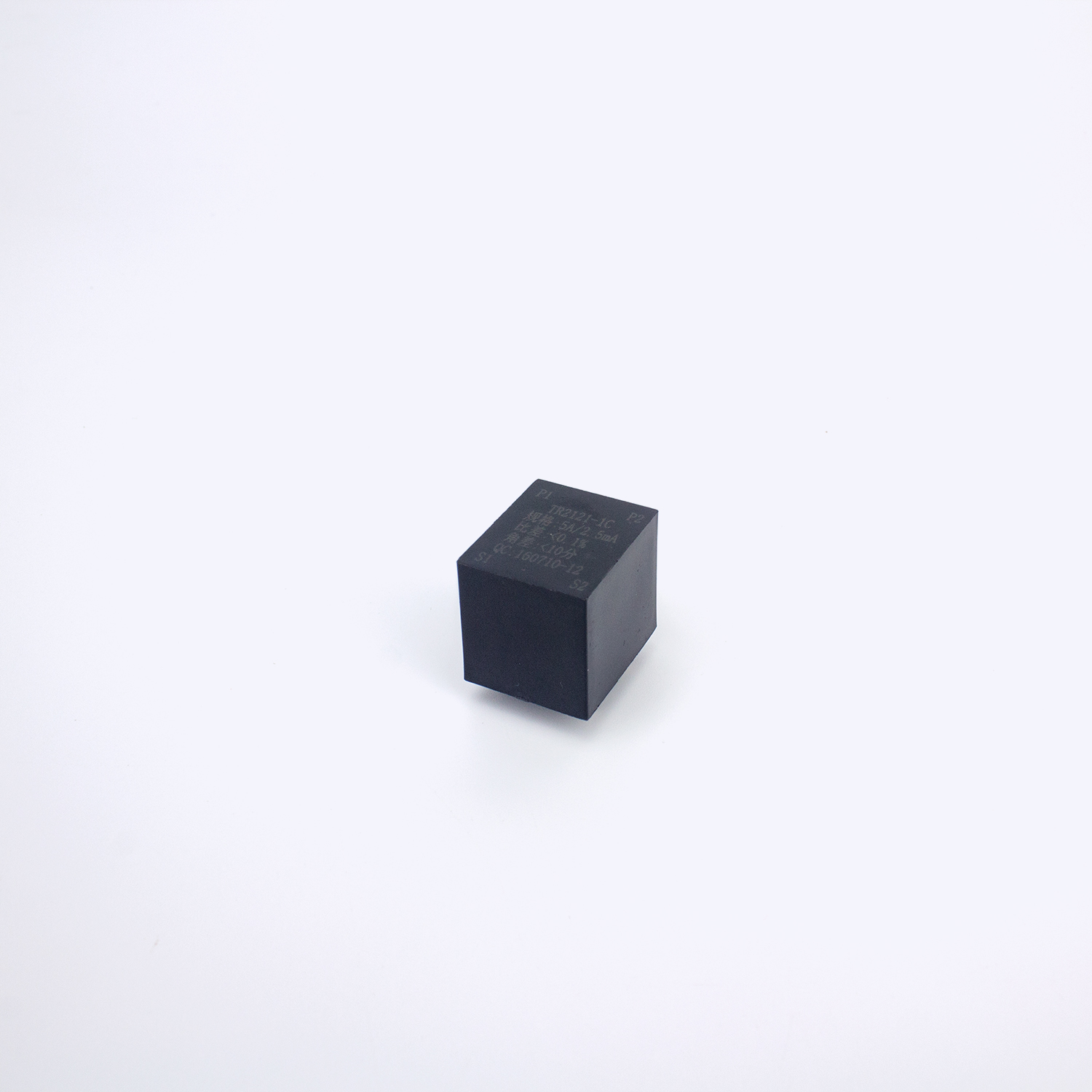

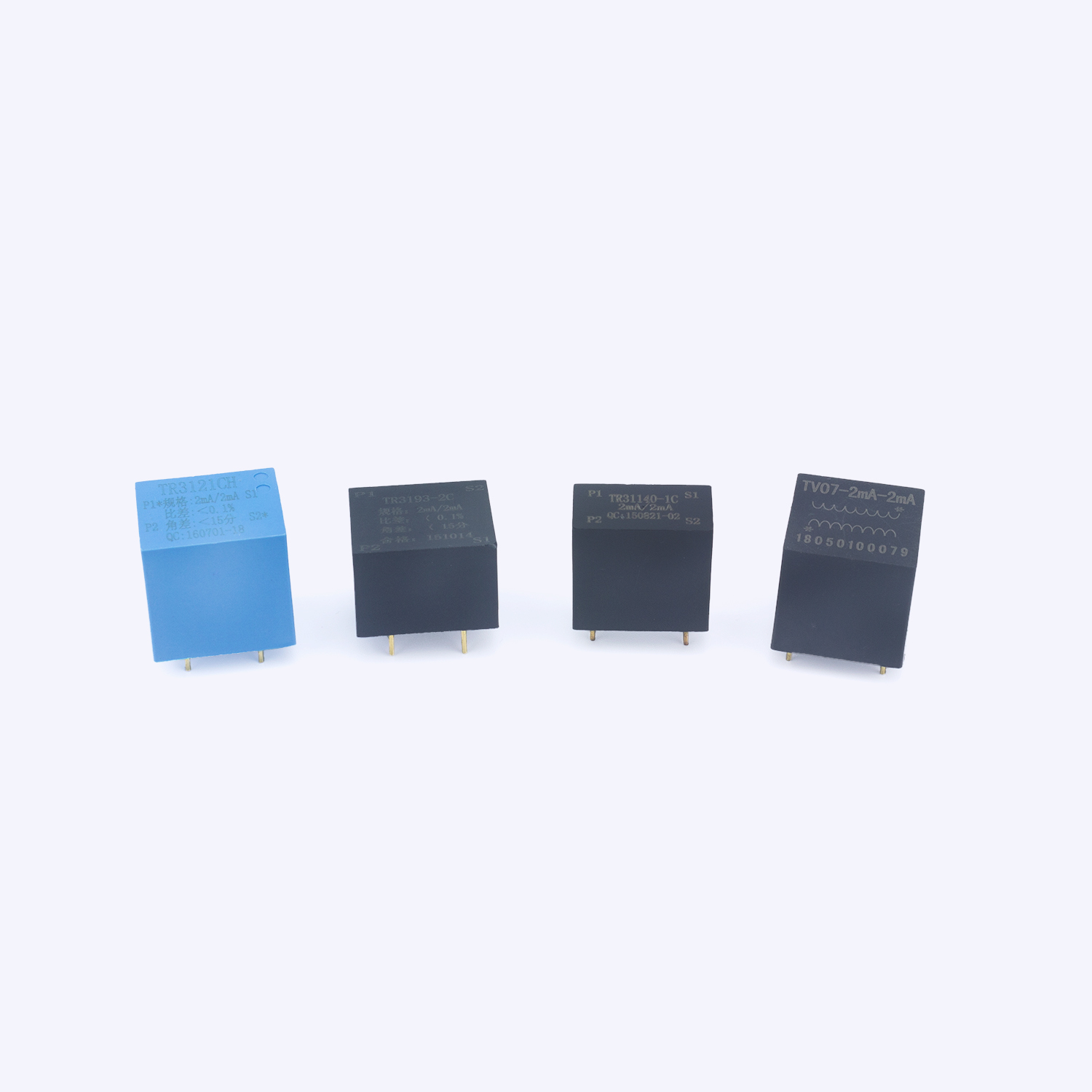

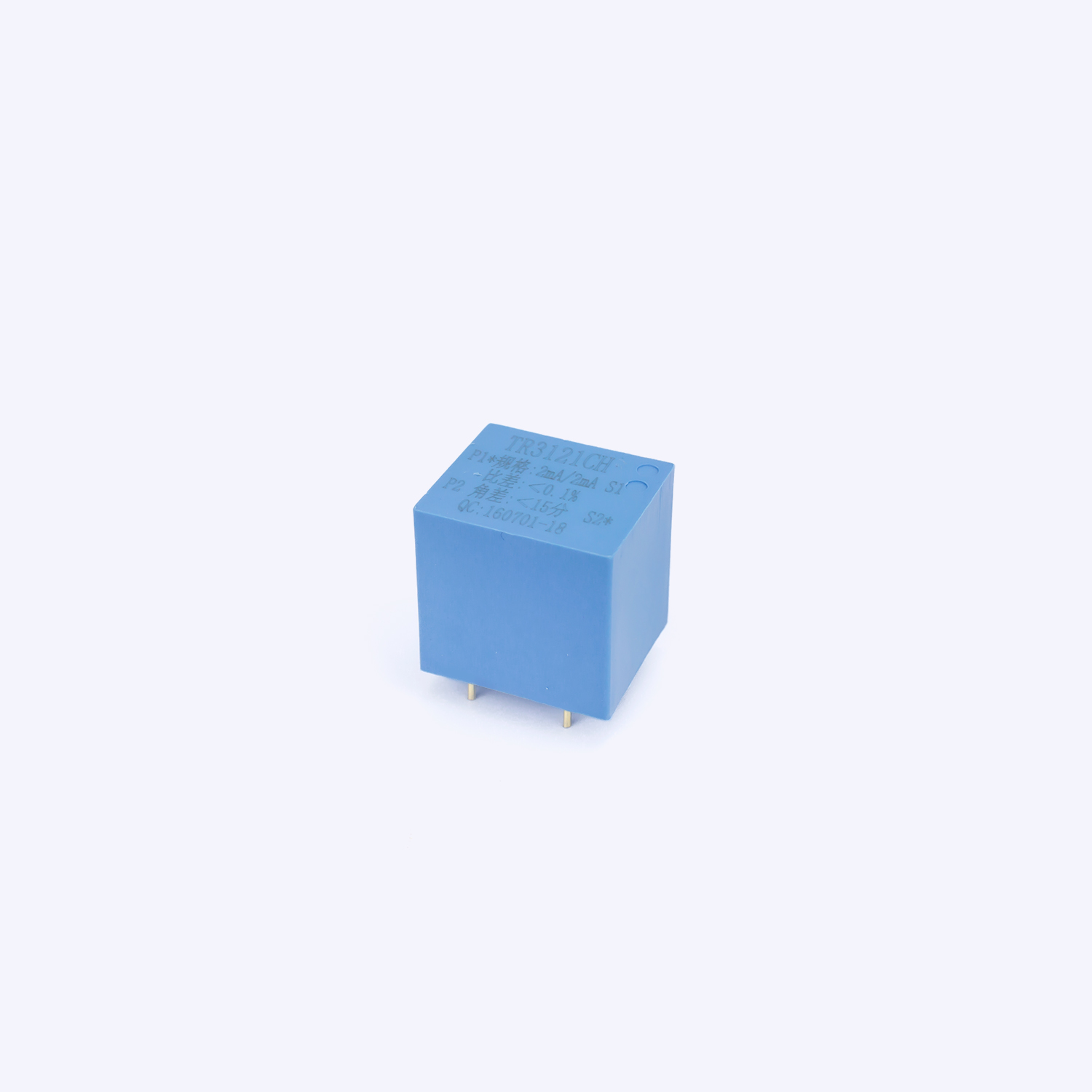

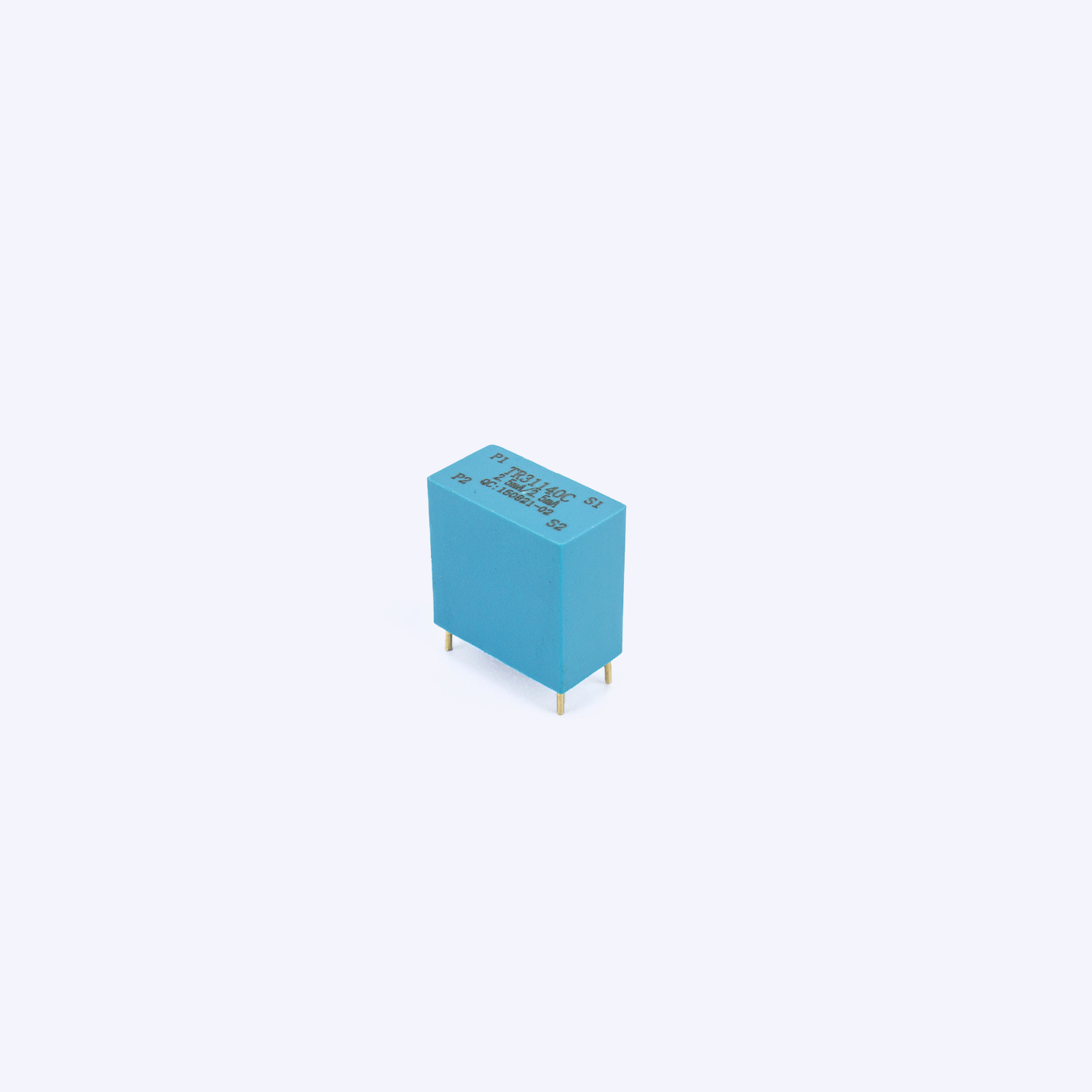

Physical Pic Type Rated input current
(AC)
Rated output current
(AC)
Nonlinearity Linear range multiples Load resistance(Ω) Dimensions(mm)
phase error (') ratio error(±%)

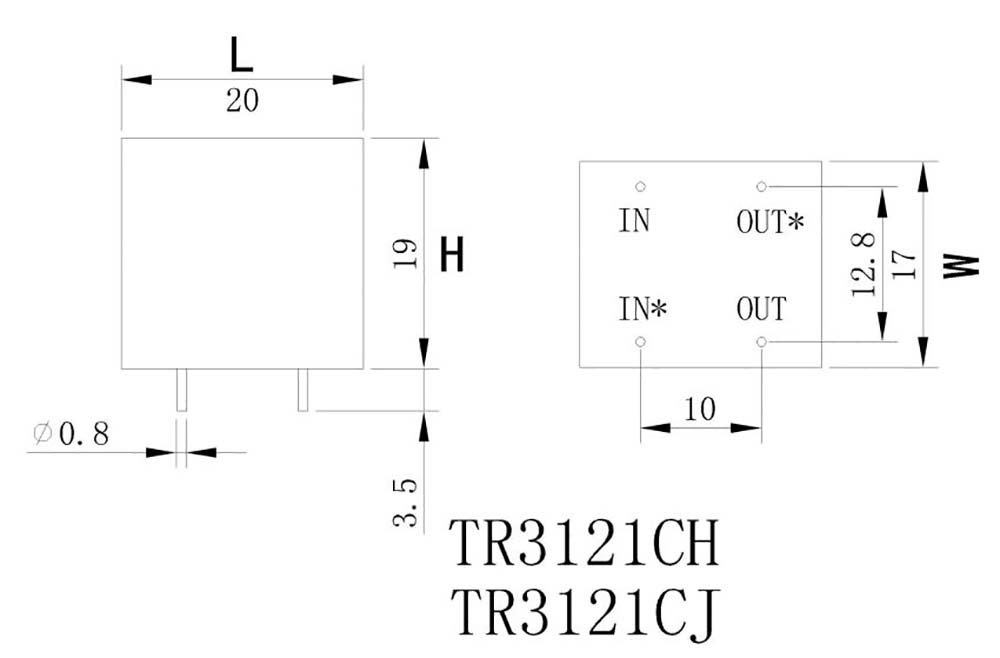

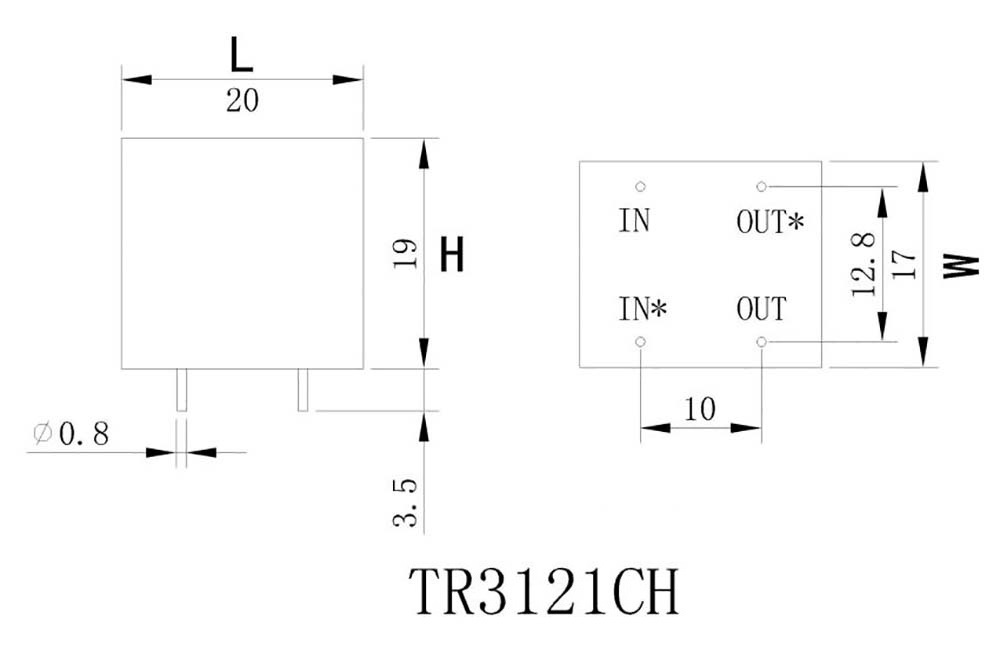

TR3121CH 1mA,2mA 1mA,2mA 10 0.1 5 200 查看外形结构图
L-W-H
20-17-19

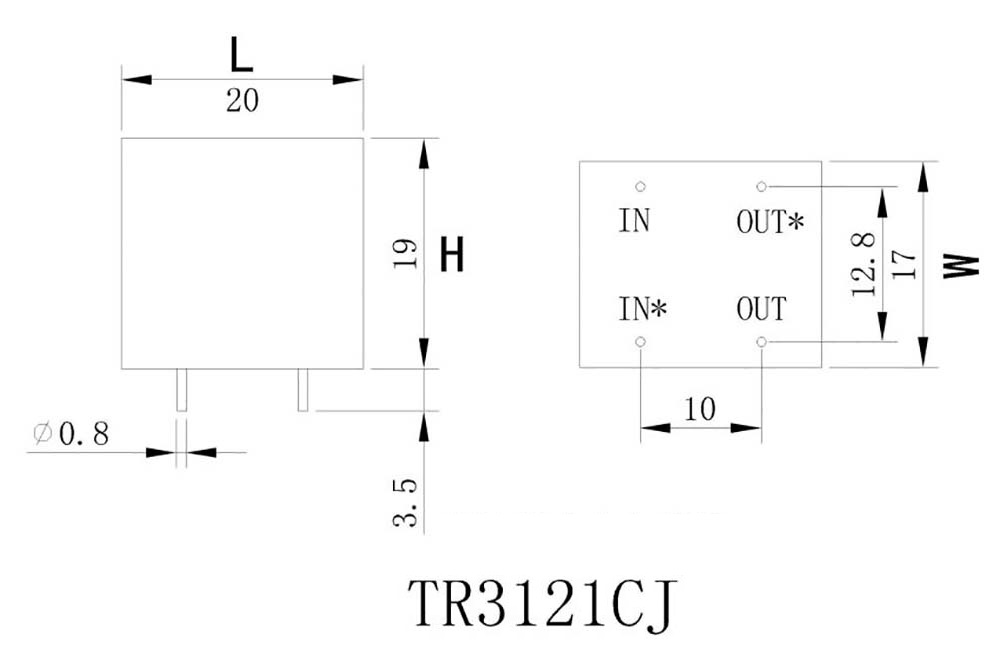

TR3121CJ 1mA,2mA 1mA,2mA 10 0.1 5 500 查看外形结构图
L-W-H
20-17-19

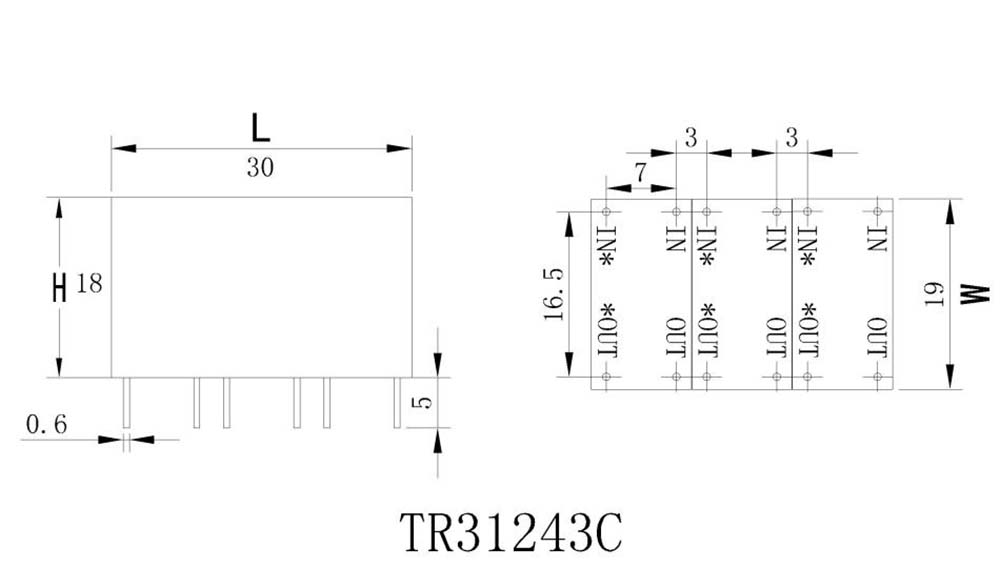

TR31243C 1mA,2mA 1mA,2mA 10 0.1 5 200 查看外形结构图
L-W-H
30-19-18

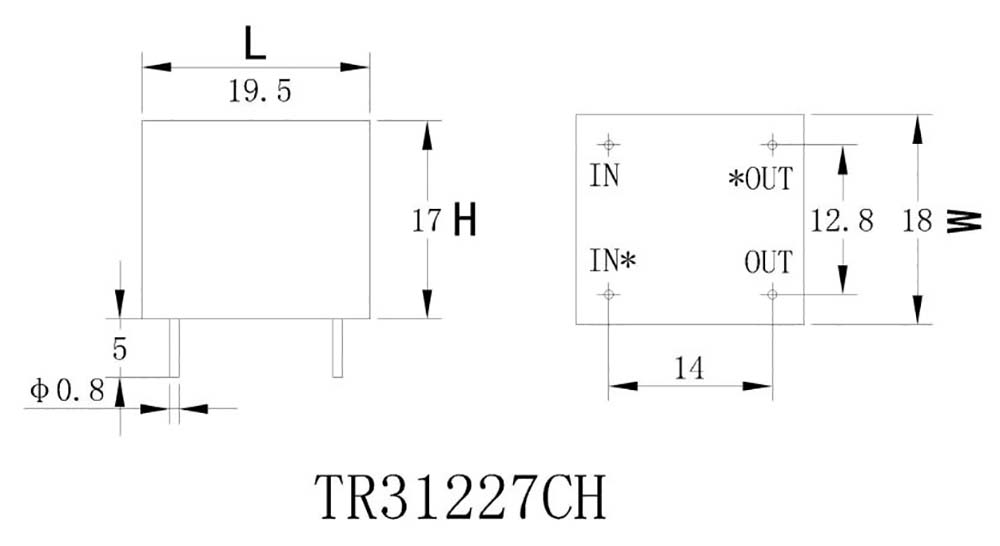

TR31227CH 1mA,2mA 1mA,2mA 10 0.1 5 200 查看外形结构图
L-W-H
19.5-18-17

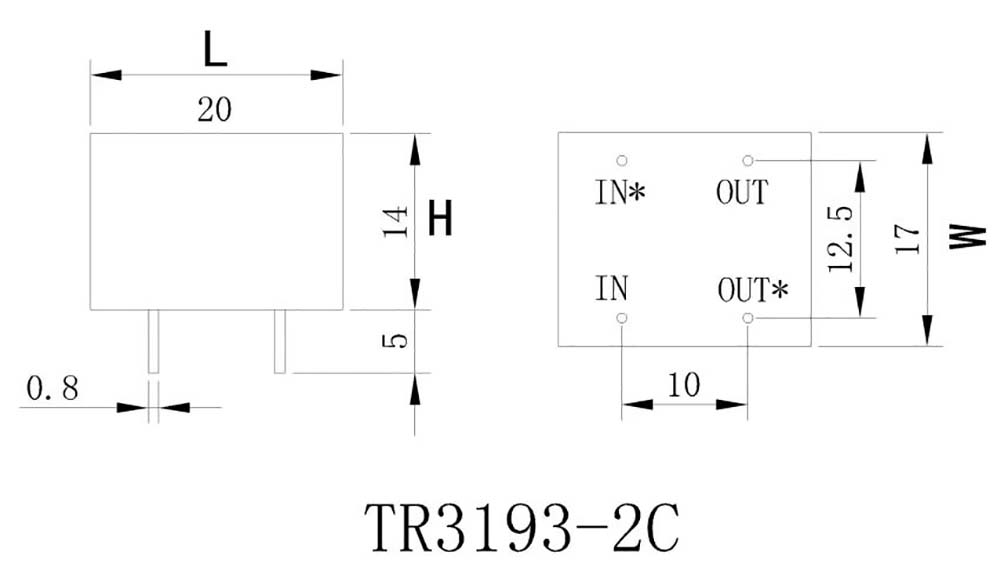

TR3193-2C 1mA,2mA 1mA,2mA 10 0.1 5 200 查看外形结构图
L-W-H
20-17-14

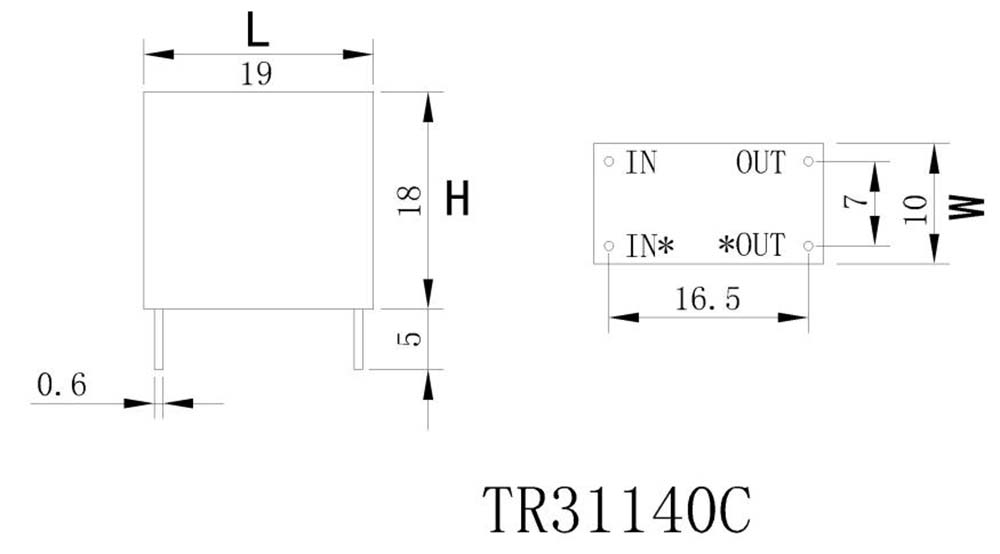

TR31140C 1mA,2mA 1mA,2mA 10 0.1 5 200 查看外形结构图
L-W-H
19-10-18

Remarks:Customization available according to system requirements .

We are a manufacturer has export qualification and experience.

instrument type at least 100pcs ;others by 1 -5 pcs;

T/T;L/C;

Instrument transformer 20 thousand pcs ;current transformer 12 thousand pcs ;voltage transformer 11 thousand pcs.

We have a R&D team for new product design. Successful cases and in continued cooperation. Discussion among both sides ➡general specification ensure➡structure drawing ➡original sample ➡electrical

Standard Carton Export fumigatin-free tray Tray Film Edge fixing strip Vacuum packaging acceptable Customize size acceptable
