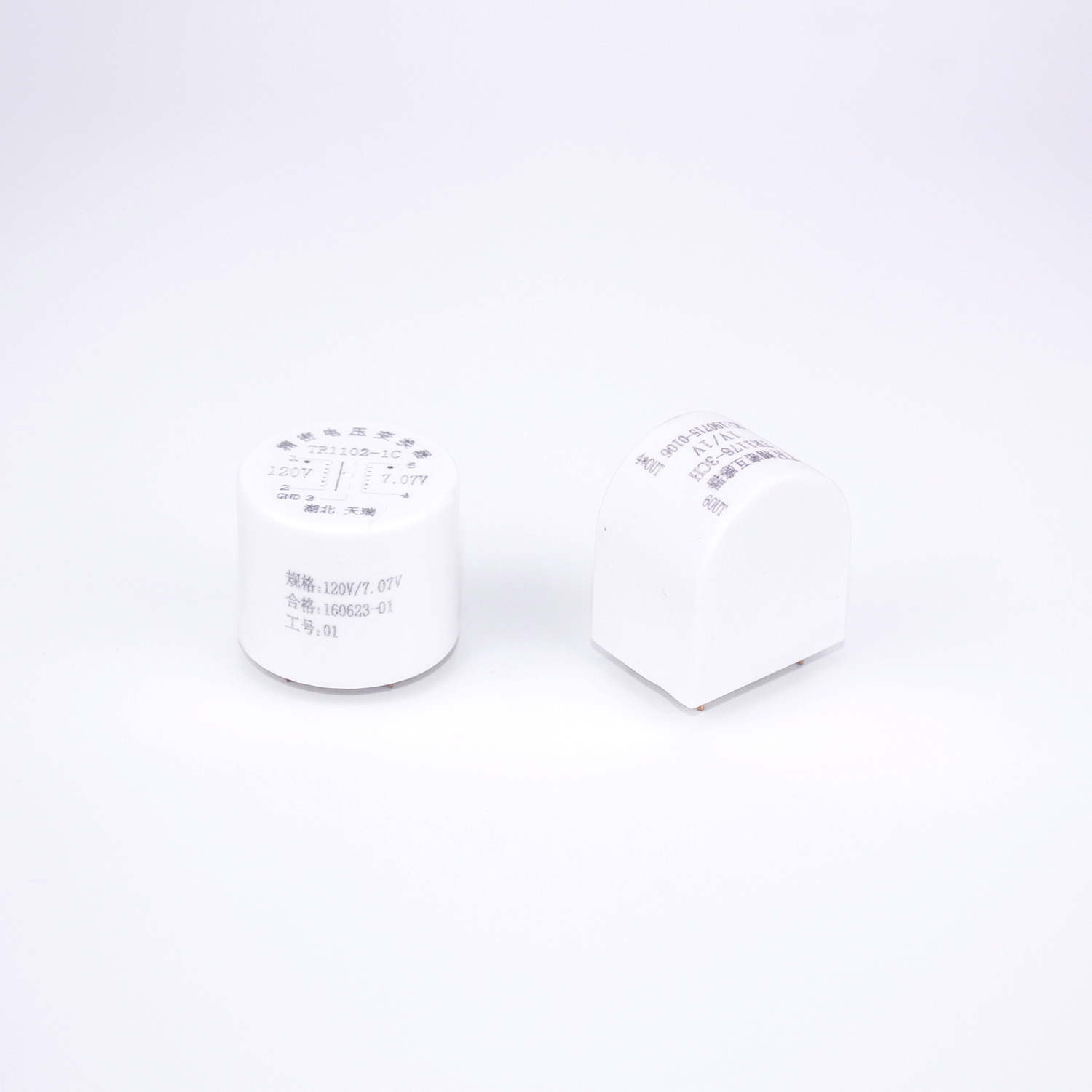

High precision of small signal transmission and excellent consistency
High input AC impedance, good matching with equipment .
The primary and secondary isolation has high withstand voltage ,strong anti-interference ability and reliable operation .

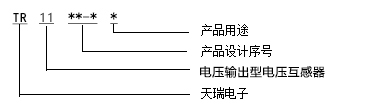

| Electrical performance parameters |
Operation temperature | -25℃～+55℃/-40℃~～+85℃optional | Relative humidity | ≤90%hPa |
|---|---|---|---|---|
| Internal insulation | Epoxy resin | Insulation resistance | ＞500 M Ohms/500Vdc | |
| Medium strength | 3000Vac/min | Withstand impulse voltage | 5000V（1.2/50μsStandard Lightning Wave） | |
| External impedance | ＞300K Ohms | Operation frequency | 50～400Hz | |
| Accuracy class | According to （IEC 61869-3）or（GB 20840.3-2013）class 0.1,0.2 class | Environmental friendly | According to the requirement of RoHS; |
| Physical Pic | Type | Rated input/output voltage（Vac） | Accurate class | No-load current（uA) | AC impedance （M Ohms) |
Power frequency withstand voltage（V） | Dimensions（mm） |
|---|---|---|---|---|---|---|---|
 |

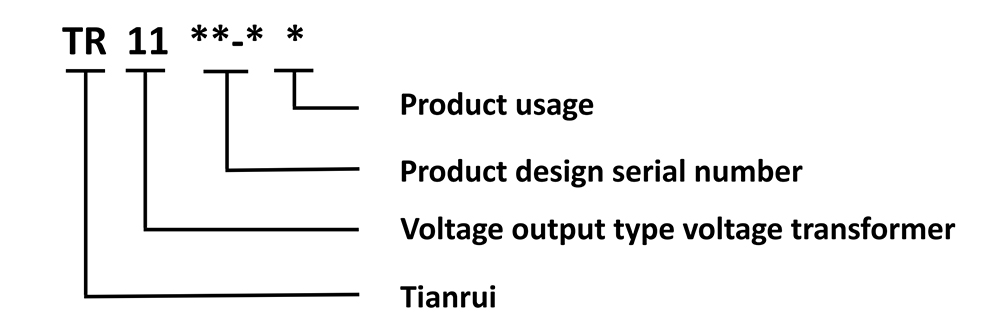

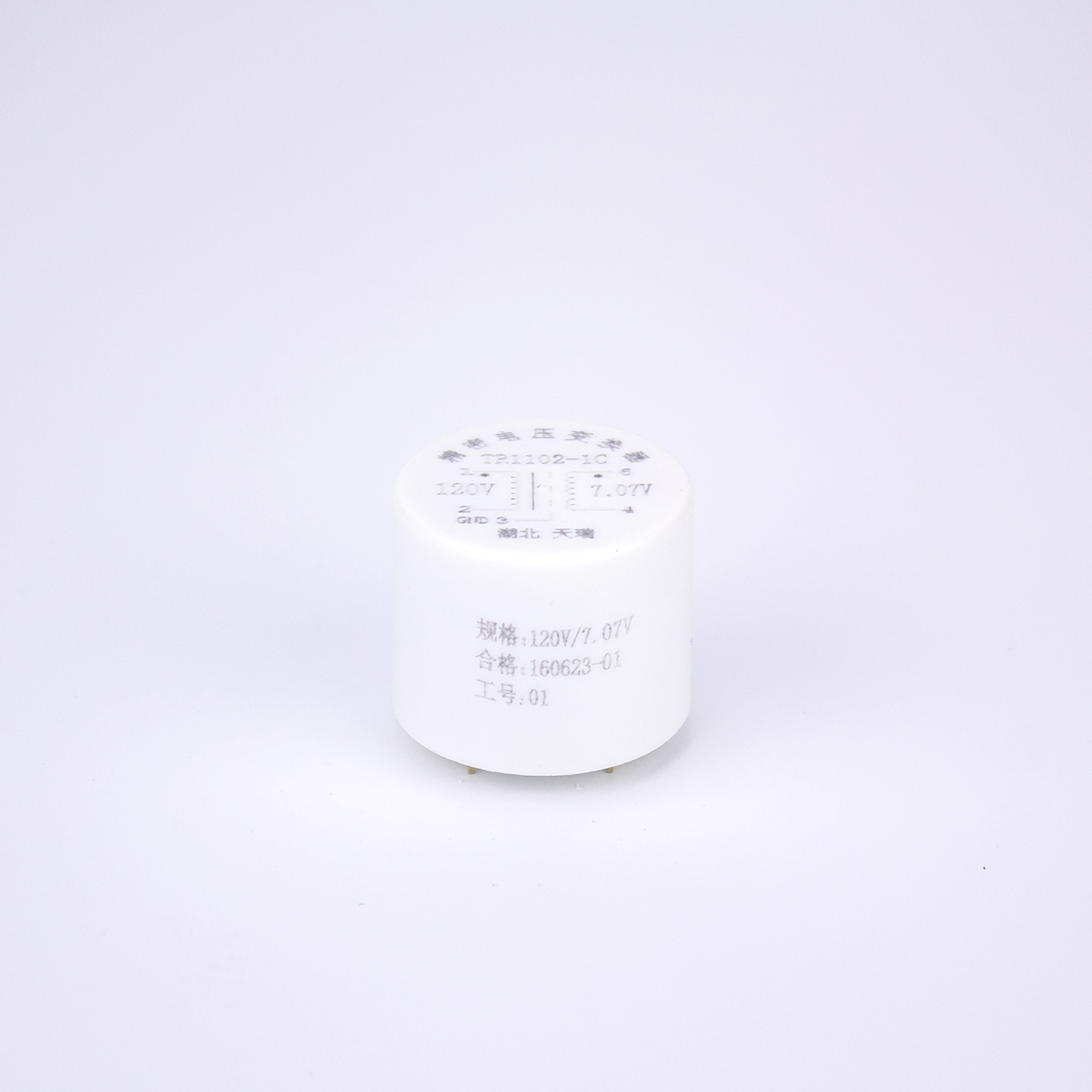

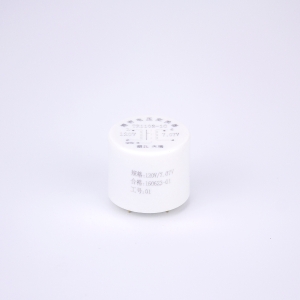

TR1102-1CM | 1V/1V 6.5V/3.25V 10V/3.25V |
0.1 | ≤30 | 0.8～1.5 | ≥3000 |

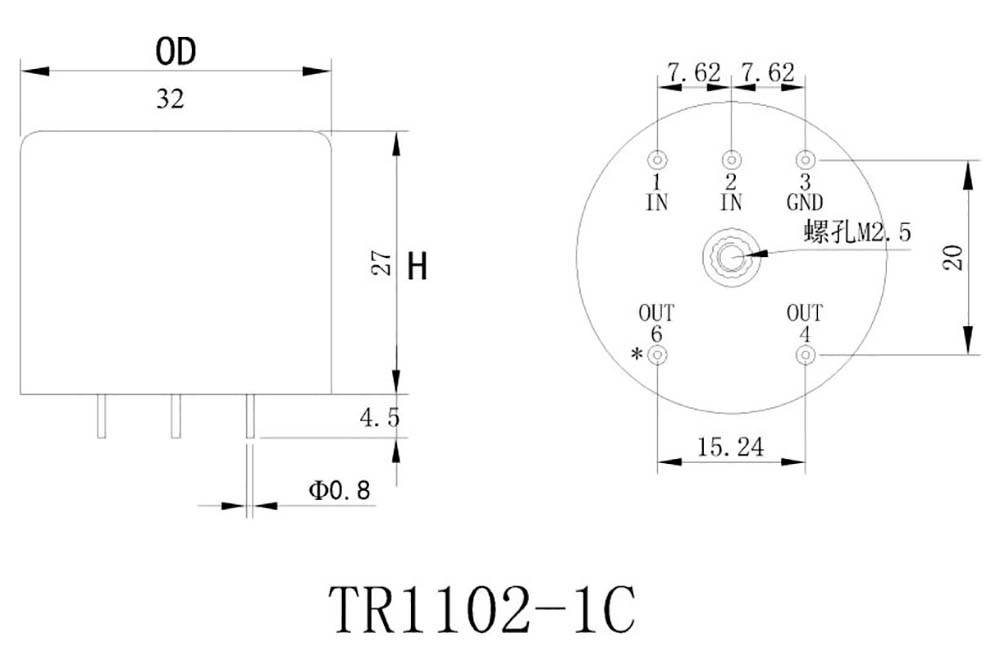

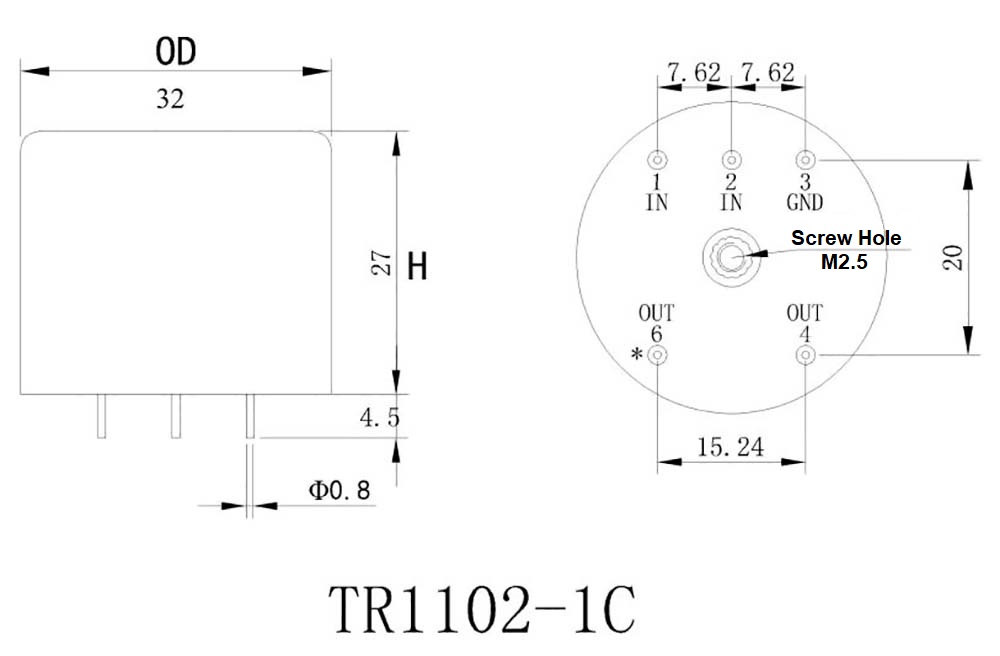

 OD-H 32-27 |
| |
TR1102-1CA | 1V/1V 6.5V/3.25V 10V/3.25V |
0.1 | ≤30 | 0.3～0.6 | ≥3000 |
OD-H 32-27 |
| |
TR1102-1CH | 1V/1V 6.5V/3.25V 10V/3.25V |
0.1 | ≤30 | 0.6～1.2 | ≥3000 |
OD-H 32-27 |
 |

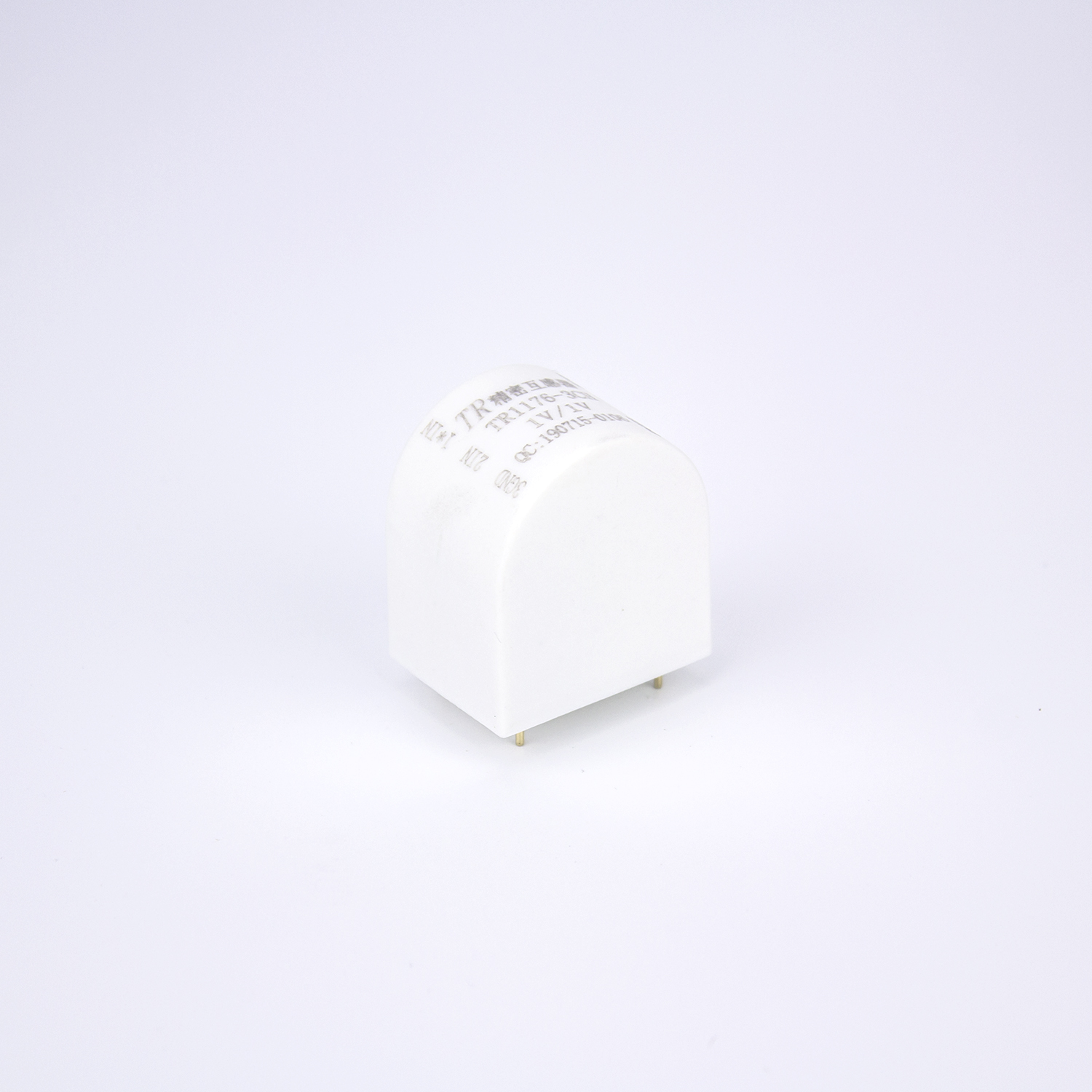

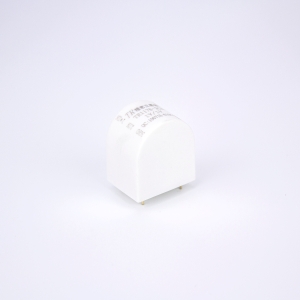

TR1176-3CM | 1V/1V 6.5V/3.25V 10V/3.25V |
0.1 | ≤30 | 0.8～1.5 | ≥3000 |

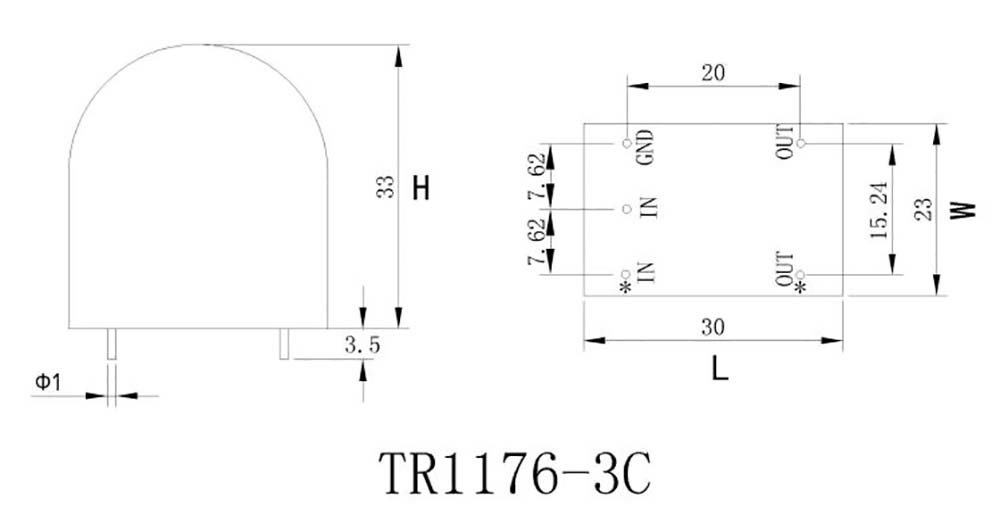

 L-W-H 30-23-33 |
| |
TR1176-3CA | 1V/1V 6.5V/3.25V 10V/3.25V, |
0.1 | ≤30 | 0.3～0.6 | ≥3000 |
L-W-H 30-23-33 |
| |
TR1176-3CH | 1V/1V 6.5V/3.25V 10V/3.25V, |
0.1 | ≤30 | 0.6～1.2 | ≥3000 |
L-W-H 30-23-33 |
Remarks：Customization available according to system requirements .
