Product description
It is specially designed for the power system fault recording device It is used to convert the transient fault current signal into a small voltage signal for full-true sampling .It has good transient characteristics and super anti-saturation ability .
Product characteristics

The circuit is simple ,no external power supply is required and the operation is reliable .

Good transient characteristics, real waveform transmission ,strong overload capacity ,can withstand 20-60times the rated current transient impact without saturation ;

Various installation methods, optional PCB installation and bolt fixing methods.

Various shape structures are available .

Application
Apply to signal isolation and acquisition of power system above 220KV and 500KV replay protection and fault recorder.
product parameters
Electrical
performance
parameters
Operation temperature -25℃~+55℃/-40℃~~+85℃optional Relative humidity ≤90%hPa
Internal insulation Epoxy resin Insulation resistance >500 M Ohms/500Vdc
Medium strength 3000Vac/min Withstand impulse voltage 5000V(1.2/50μsStandard Lightning Wave)
Rated load >50K Ohms Operation frequency 50~400Hz
Accuracy class According to(IEC 61869-2)or
(GB 20840.2-2014) the efinition of the error limit of the current transformer for medium protection;
Environmental friendly According to the requirement of RoHS;
Transient characteristics According to DL/T873-2004,DL/T663-1999

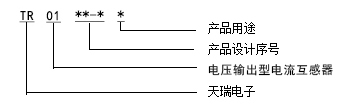

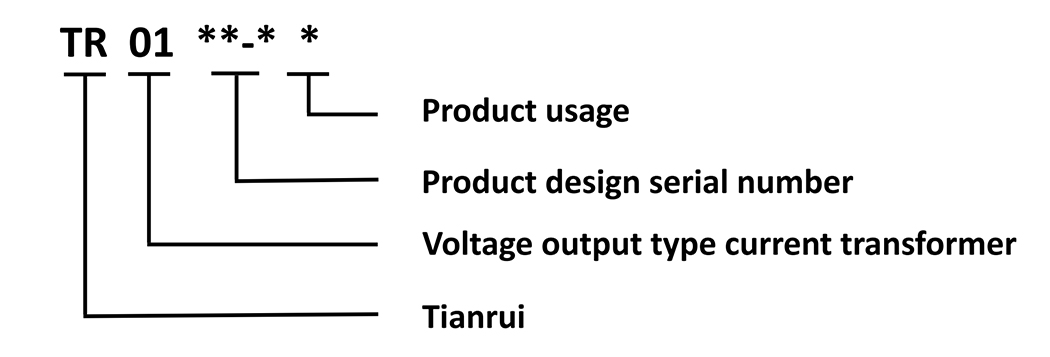

Model interpretation
型号释义
Typical value of products

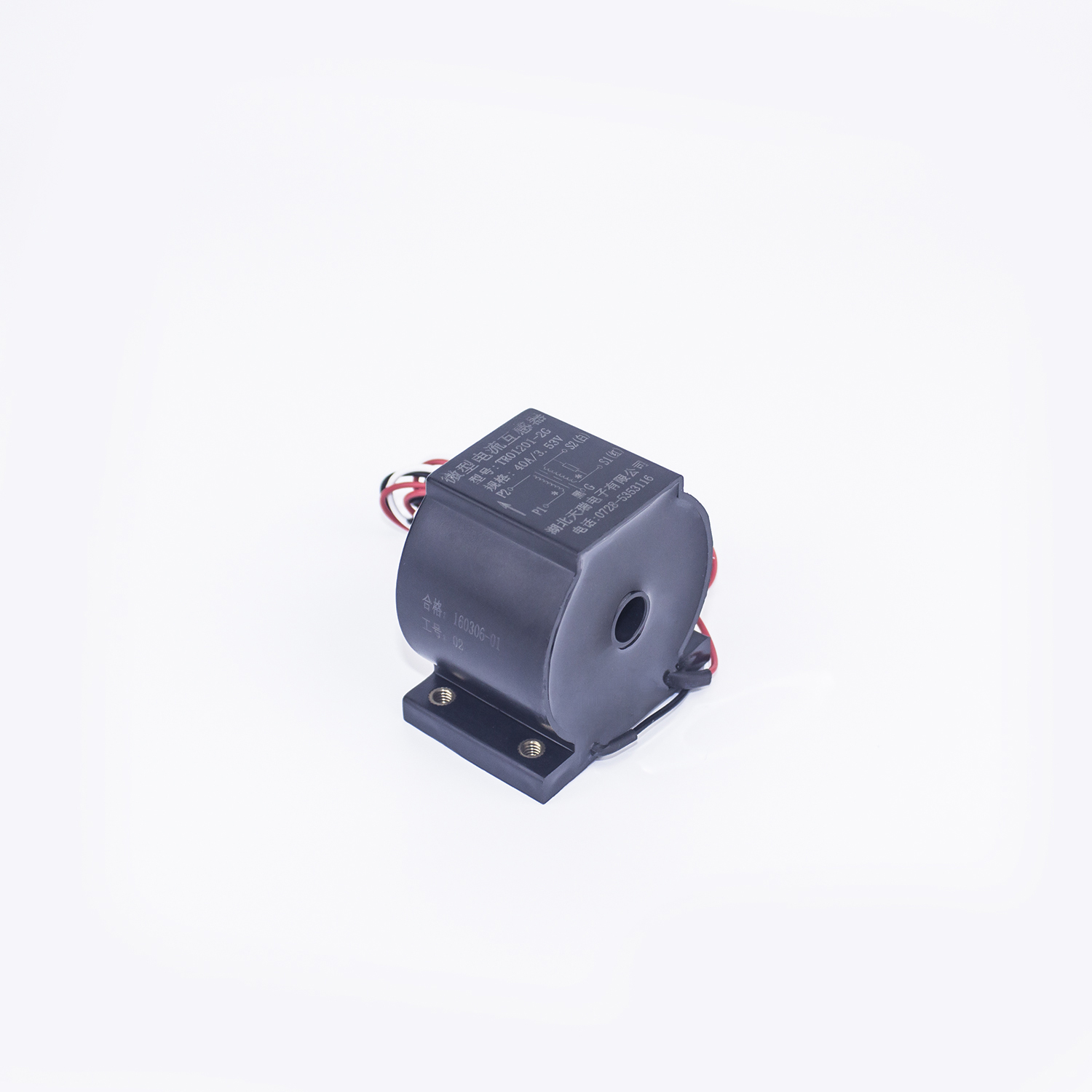

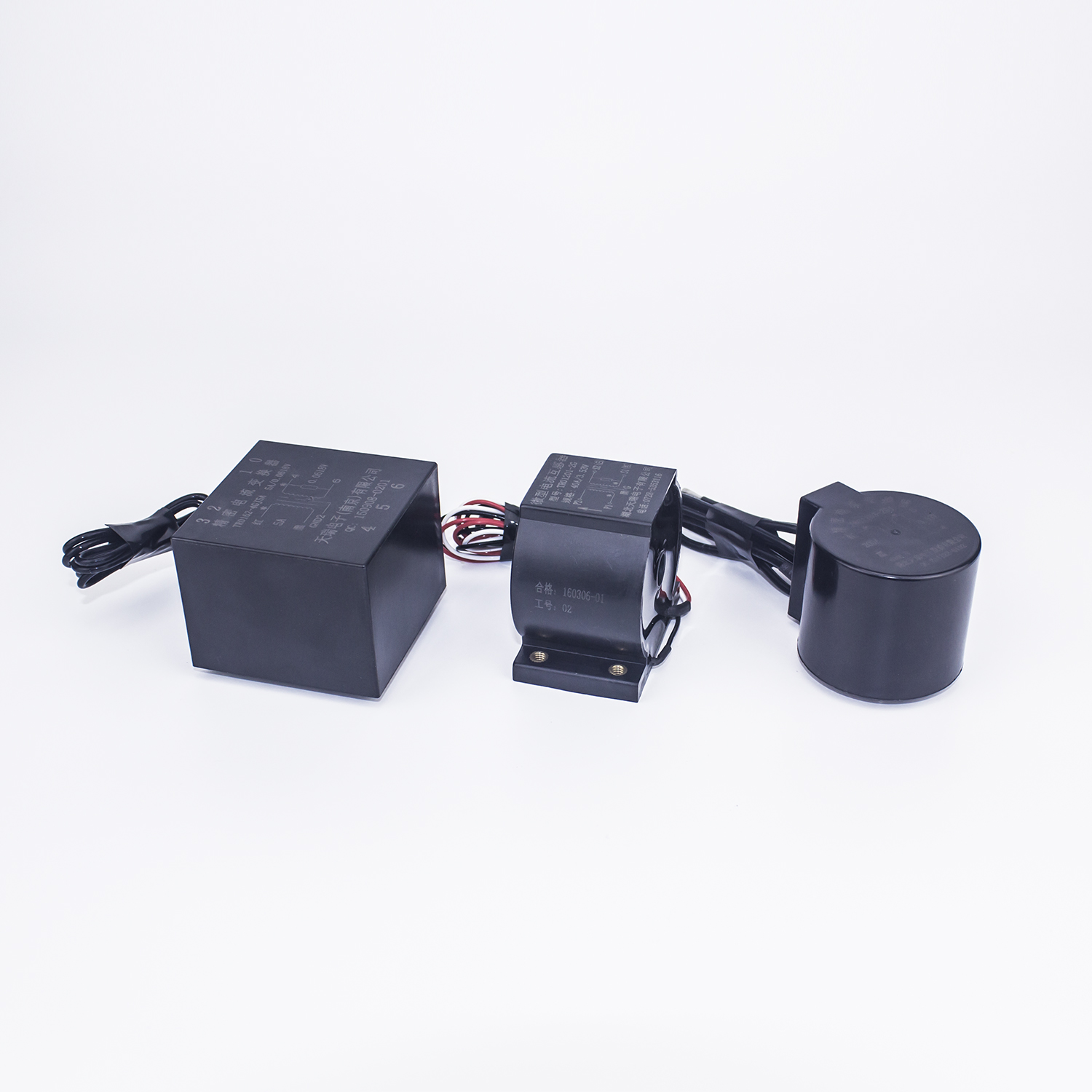

Physical Pic Type Rated input current
(AC)
Rated overload
nput current /output voltage
(AC)
Error limit Transient characteristic Power consumption(VA) Dimensions(mm)

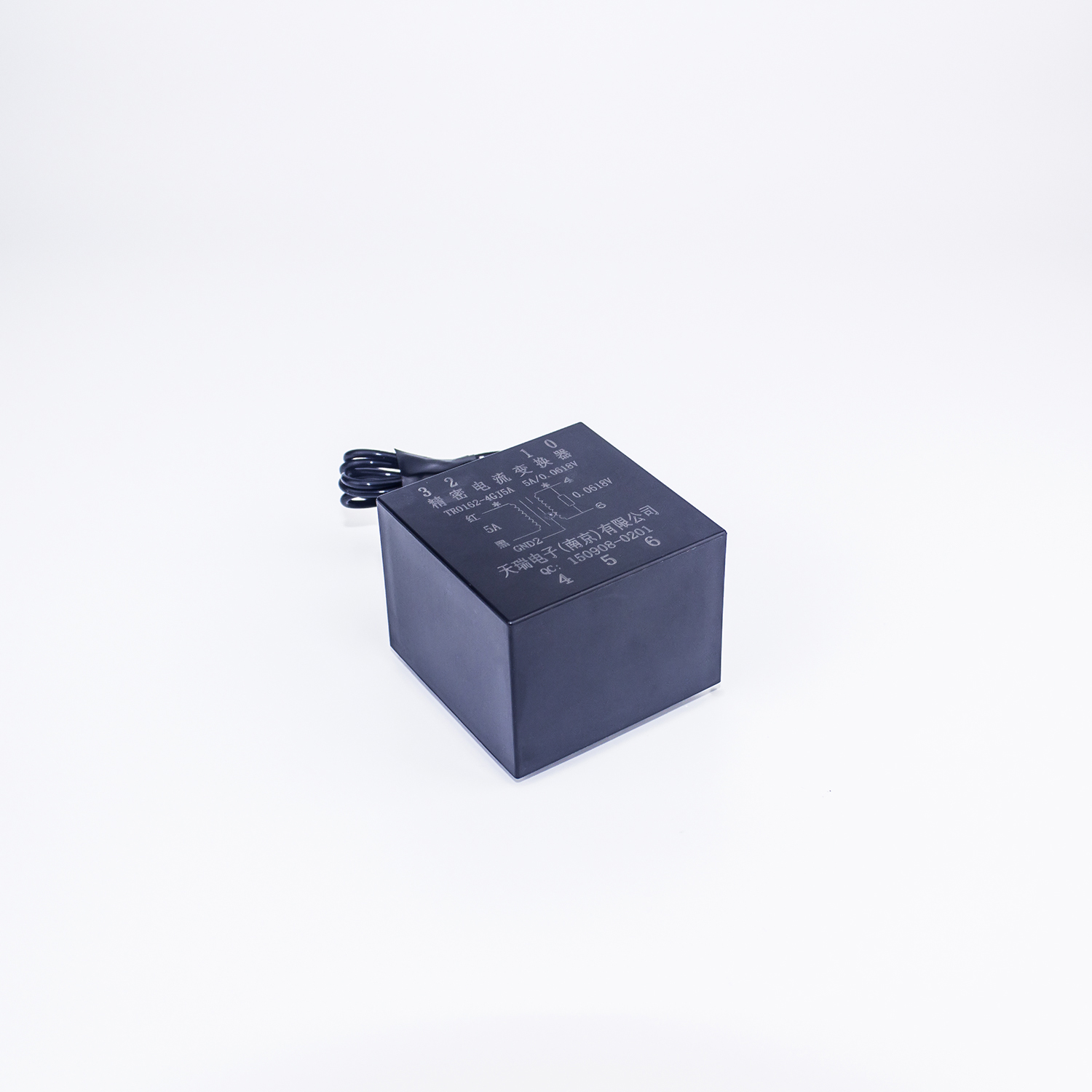

TR01201-2G   1A,5A 20A/3.53V,7.07V
40A/3.53V,7.07V
100A/3.53V,7.07V
200A/3.53V ,7.07V
5%~200 %within rated current input range :0.5 class;
within 2~20/40times rated current input range1.0 class;

Tp=100ms,offset factor cosθ=1.0,
Ts error≤0.5%,peak error≤10%

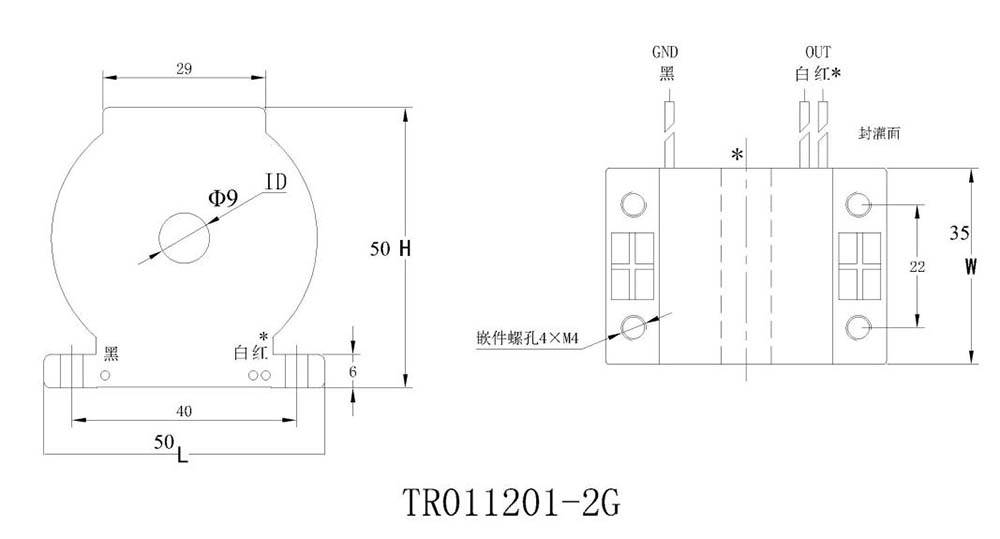

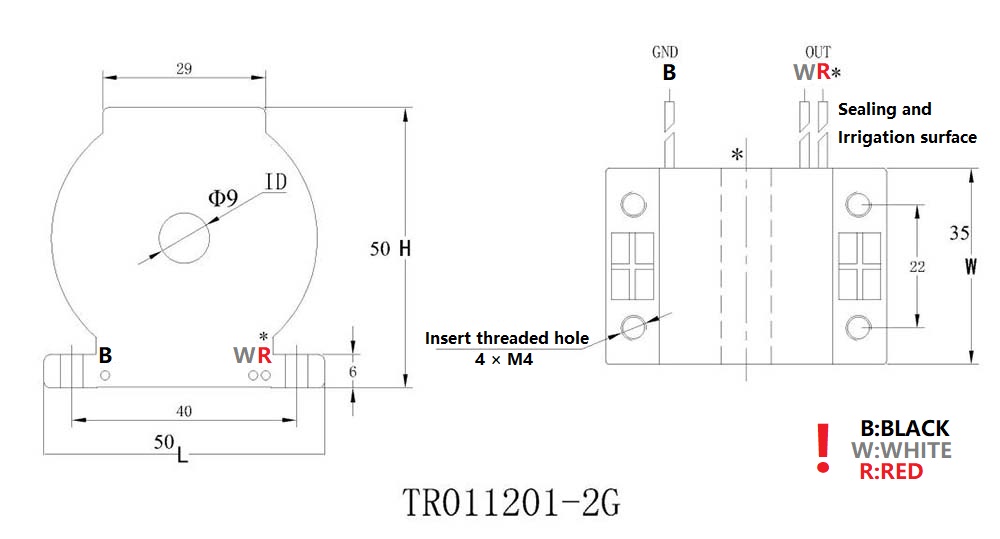

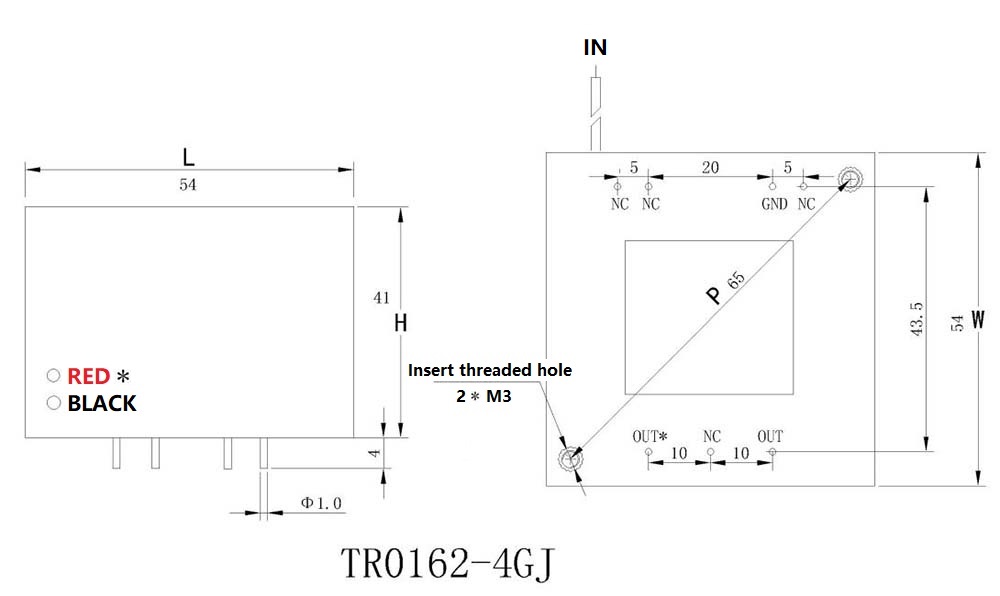

≤0.5 查看外形结构图
L-H-W-ID
50-35-50-9

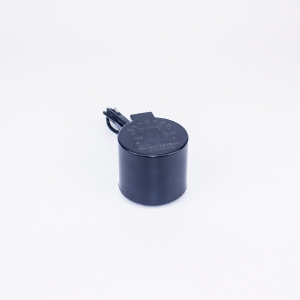

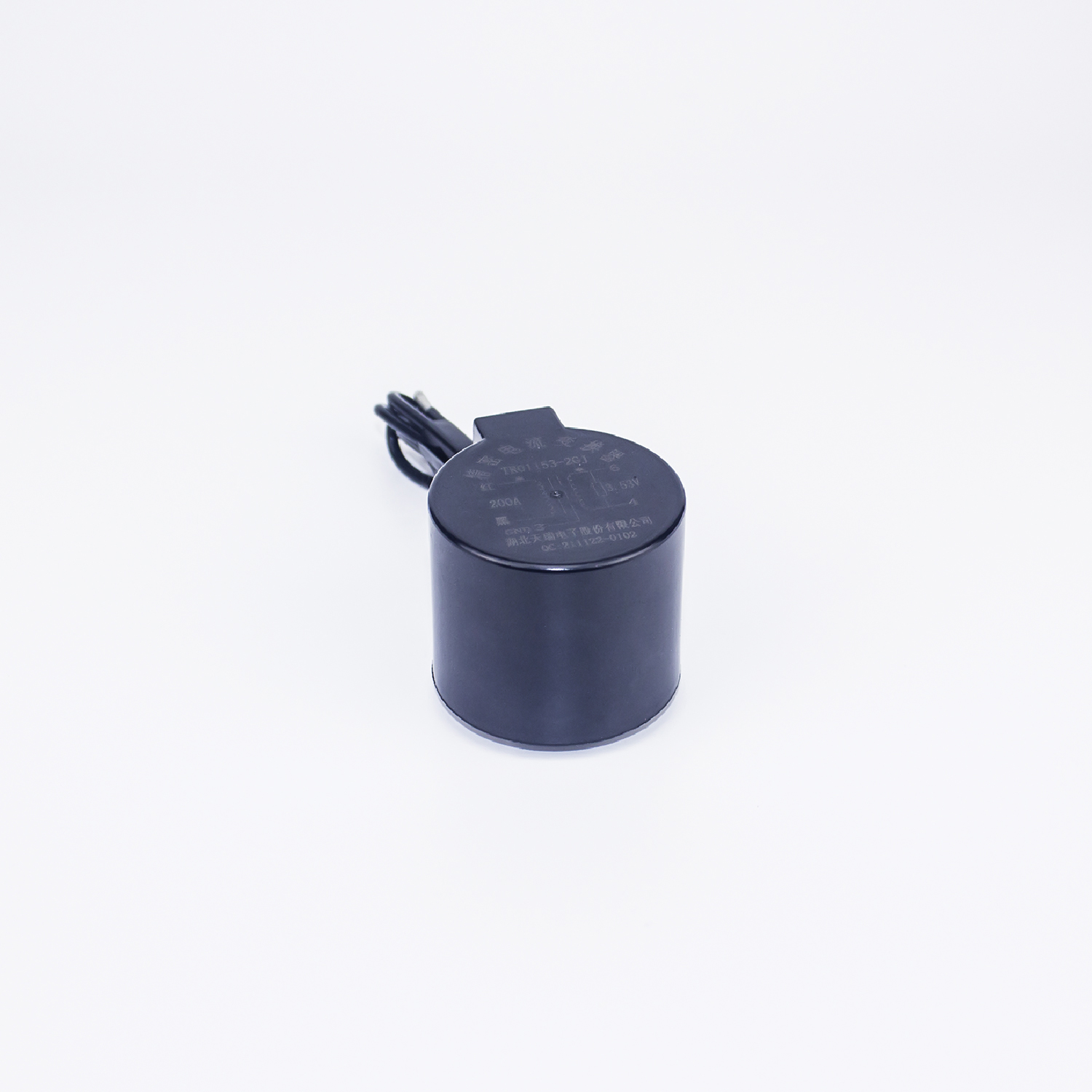

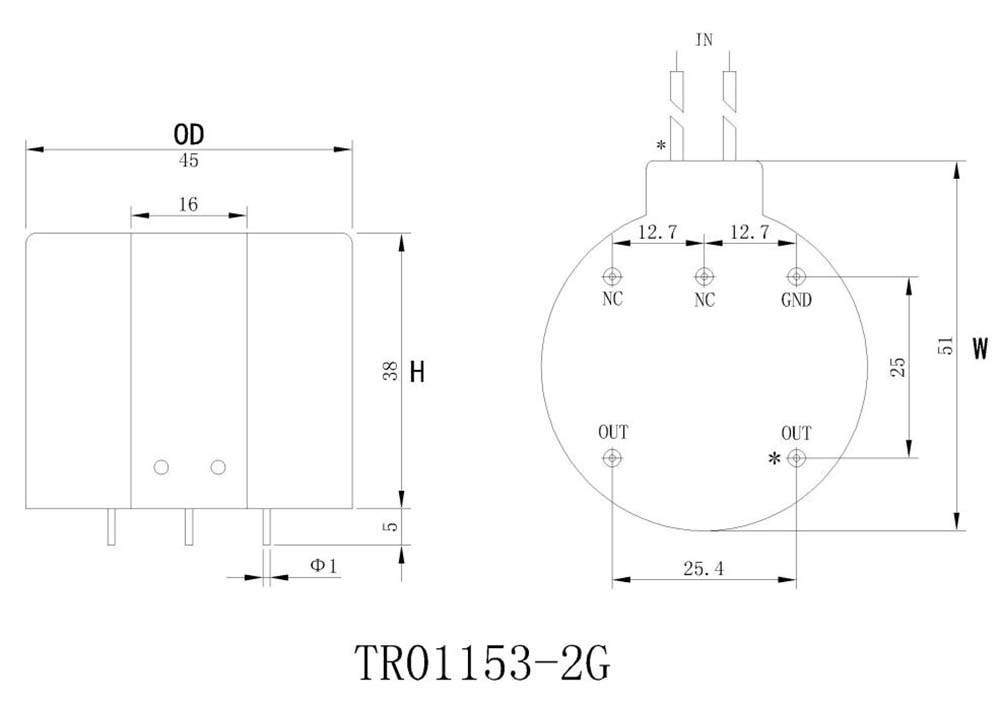

TR01153-2G 1A,5A 20A/3.53V,7.07V
40A/3.53V,7.07V
100A/3.53V,7.07V
200A/3.53V,7.07V
≤0.5 查看外形结构图
OD-W-H
45-51-38

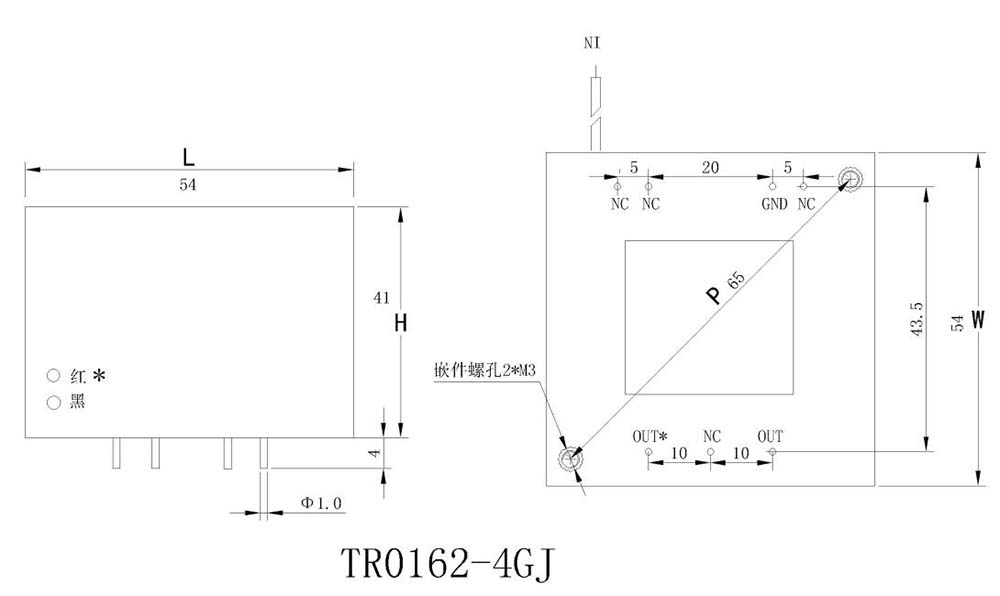

TR0162-4GJ 1A,5A 20A/3.53V,7.07V
40A/3.53V,7.07V
100A/3.53V,7.07V
200A/3.53V,7.07V
≤0.5 查看外形结构图
L-W-H
54-54-41

remarks:Customization available according to system requirements .

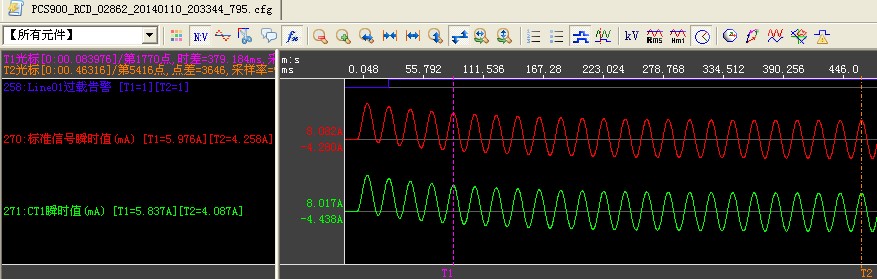

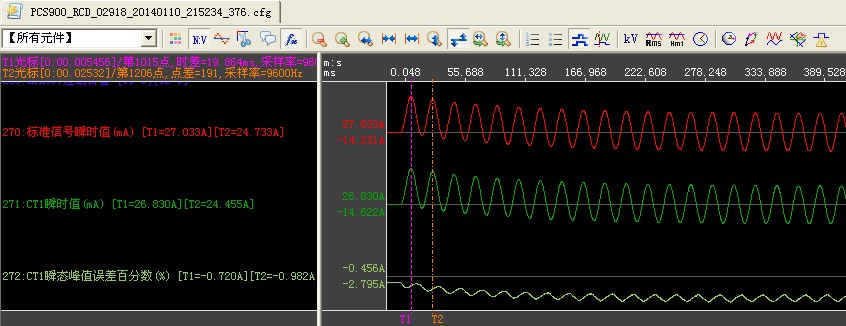

Representative product transient waveform

1. periodic component:3times rated current(In),Tp=100ms,offset factorcosθ=1.0,waveform after 50 tests :

2. periodic component:20times rated(In),Tp=100ms,offset factorcosθ=1.0,waveform after 50 tests:
